• 1 x DDR5 4800MHz SO-DIMM socket, supports up to 32GB

• 2 x 2.5" SSD slots
• 1 x M.2 Key M 2280 (PCIe x4, SATA)
• 1 x M.2 Key B 2242/3042/3052 (PCIe x1, USB 3.0, SATA)
• 1 x mini-PCIe socket (PCIe x1, USB 2.0, SATA)

• ATX power on/off switch
• 4 x USB 3.0 ports
• 2 x HDMI
• 2 x DP
• 2 x GbE LAN port with Intel® I225- V
• 4 x DB9 for COM1 to COM4

- COM1/2: RS232/422/485 auto flow control
- COM3/4: RS232
- COM5/6/7/8: RS232 (TT 300-if A2Q)

• 6 x Antenna holes

• Display Option: Quad independent display

- 2 x HDMI
- 2 x DP

• 2 x GPO statusCOM TX/RX LEDS

• 1 x PCIe x16
• Add-on card length: 225mm max (w/ system fan)
• Power consumption: 75W/slot max
• PCIe x4/PCIe x8/PCI
• Add-on card length: 169mm max
• Power consumption: 25W/slot max
• 1 x mini-PCIe socket support optional mSATA/Wi-Fi/4G LTE
• 1 x Nano SIM card slot

• AT/ATX power mode (default: ATX power mode)
• Power input: +24V DC in
• Power adapter: optional AC to DC power adapter (24V DC, 120W /180W)

• Operating temperature: ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 95% (non-condensing)
• Shock protection:

- SSD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection with SSD & M.2 condition:

- Random: 0.5Grms@5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms@5~500 Hz, IEC60068-2-6

• Vibration protection with SSD & M.2 condition:

- Random: 2Grms@5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6

• CE approval- EN61000-6-2- EN61000-6-4
• FCC Class A

• Dimensions: 200.2 (W) x 270 (D) x 141.8 (H) mm
• Construction: Aluminum and metal chassis design
• Weight Information: Gross weight: 5.9kg; Net weight: 4.4kg

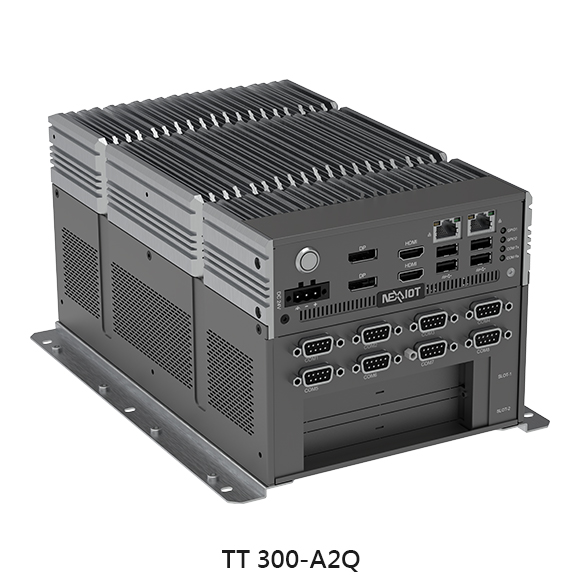

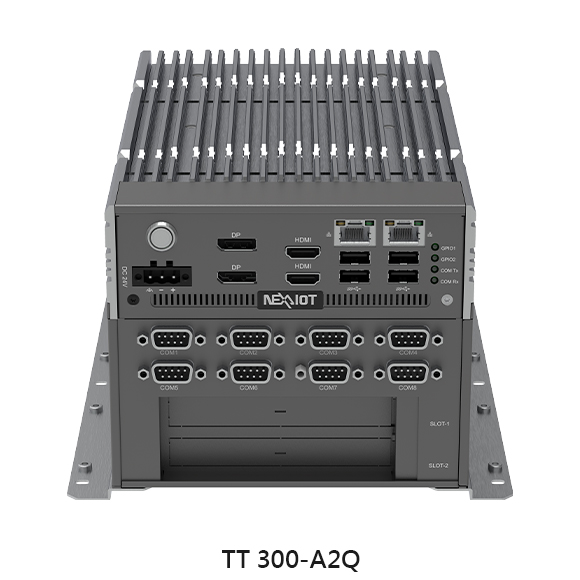

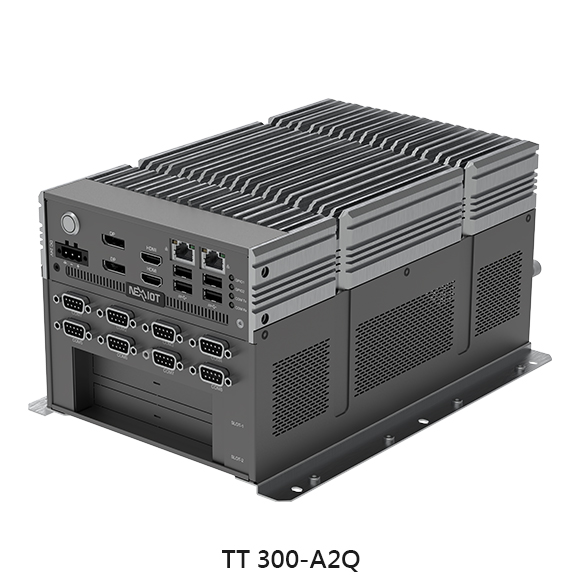

• TT 300-A2Q barebone (P/N: 10JT0030023X0)

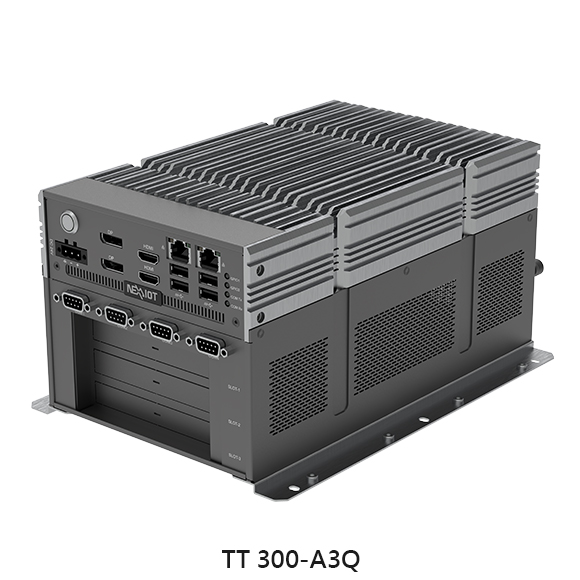

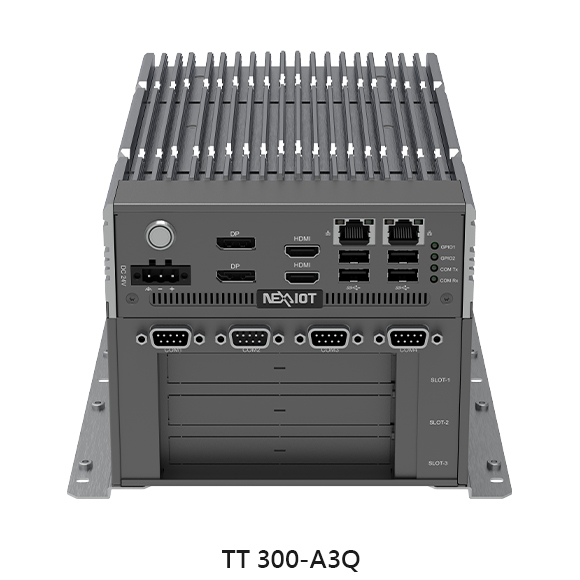

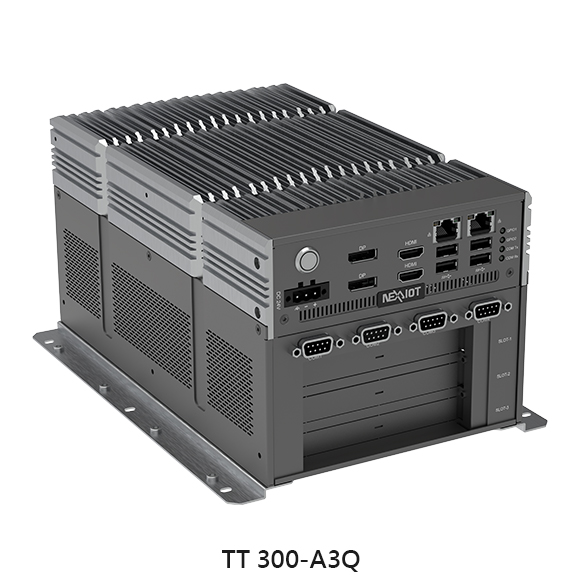

• TT 300-A3Q barebone (P/N: 10JT0030024X0)

24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120029X00)
24V, 180W AC to DC power adapter w/o power cord (P/N: 7400180012X00)
