• 1 x DDR3L 1066/1333 SO-DIMM Socket, support up to 8GB

• 1 x CFast (SATA2.0)
• 1 x 2.5" HDD (SATA2.0)

• ATX power on/off switch
• 1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs
• 1 x External CFast socket
• 1 x SIM Card holder
• 2 x Intel® I210-IT GbE LAN Ports, support Wake on LAN, Teaming and PXE
• 1 x DVI-I Display Output
• 1 x USB3.0 (900mA per each)
• 1 x USB2.0 (500mA per each)
• 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control

- Jumper-free setting on RS232/422/485
- Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only)

• 1 x Remote Power ON/OFF Switch
• 1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V)

• 1 x USB2.0
• 1 x HDMI
• 1 x RTC Battery
• 2 x DB9 for COM3 & COM4, both support RS232/422/485 with auto flow control

- Jumper-free setting on RS232/422/485

• 1 x Mic-in & 1 x Line-out
• 2 x Antenna Holes for optional Wi-Fi/3.5G antenna
• 1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules

Dual Independent Display
- HDMI and DVI-D
- HDMI and VGA (via DVI-I to VGA converter)

• 1 x Mini-PCIe socket for optional Wi-Fi/3.5G modules

• Power input: +9VDC to +30VDC (nominal DC input: 24V)
• 1 x optional 24V, 60W power adapter

• Operating Temperature: Ambient with air flow: -10°C to 60°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage Temperature: -30°C to 85°C
• Relative Humidity: 10% to 95% (non-Condensing)
• Shock Protection:

- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27

• Vibration Protection w/HDD Condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

• Vibration Protection w/CFast & SSD Condition:

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

• CE
• FCC Class A
• UL/ cUL

• Dimensions: 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
• Construction: Aluminum and Metal Chassis with fanless design

• 4 x GPI and 4 GPO (5V, TTL Type)

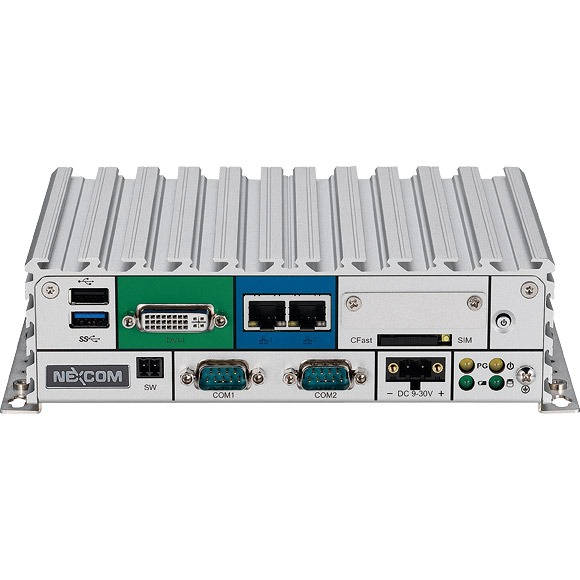

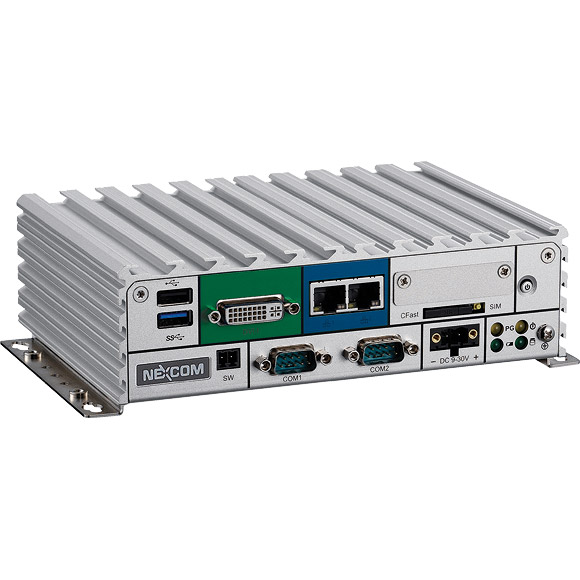

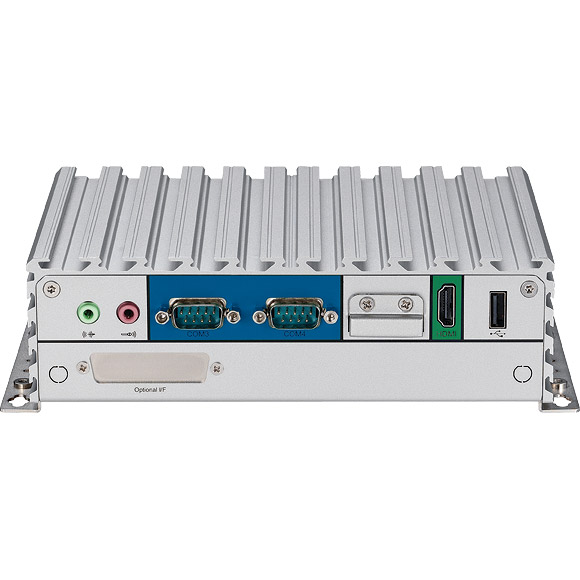

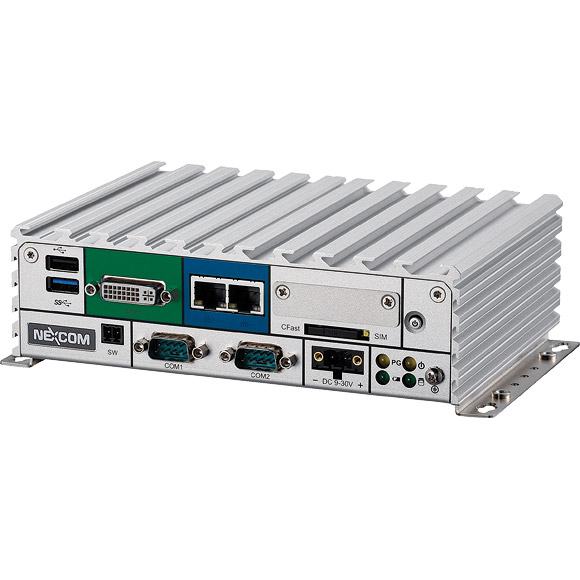

• NISE 105-E3845 (P/N: 10J00010503X0)

Intel Atom® Processor E3845 Quad Core Fanless System

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060061X00)
