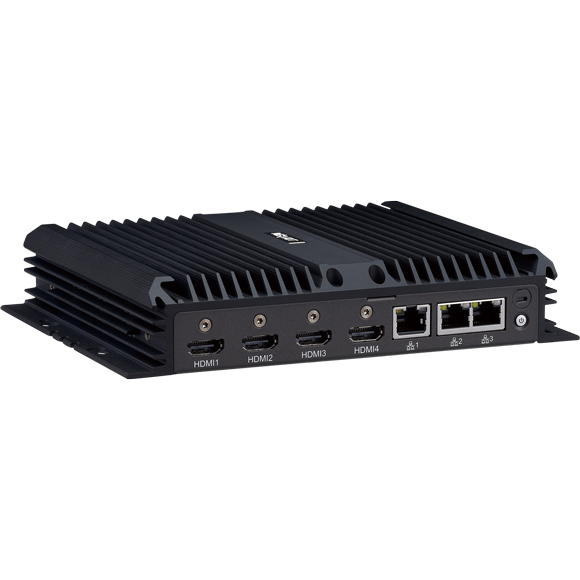

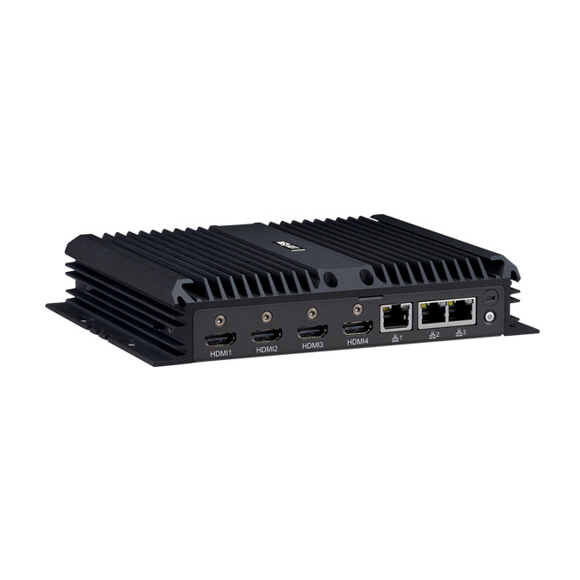

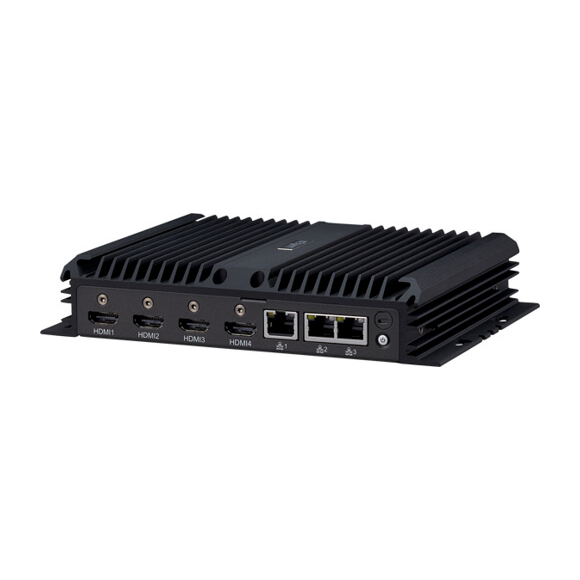

Máy tính công nghiệp NISE70-T03

Intel® 11th Core-i/ Celeron Processor Dual Core Fanless System

Tính năng chính

  • Onboard Intel® 11th Core-i/ Celeron Processor
  • 4 x HDMI
  • 3 x USB 3.0, 1 x USB 2.0
  • 1 x RS232/422/485, 1 x RS232
  • 3 x GbE LAN ports; support WoL, teaming and PXE
  • Onboard TPM 2.0 chip
  • 1 x M.2 socket for storage/4G LTE/5G modules
  • 1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
  • Support operating temperature from -10°C to 60°C
  • Support+12V to 24VDC input; support ATX power mode

Giá sản phẩm: Liên hệ

Lượt xem 49

Được trang bị bộ xử lý Intel® Core ™ I7 1185G7E thế hệ mới (trước đây có tên mã "Tiger Lake-Up3"), NISE 70-T03 là PC không quạt được thiết kế cho các ứng dụng công nghiệp yêu cầu tiêu thụ điện năng thấp và giao diện I/O phong phú nhưng có không gian cài đặt giới hạnNISE 70-T03 hỗ trợ một phạm vi nhiệt độ hoạt động rộng từ 0 ~ 50 độ C và một loạt các đầu vào công suất DC từ 12V đến 24V. NISE 70-T03 cũng là hệ thống đầu tiên trong sê-ri Slim 50 hỗ trợ 4 màn hình độc lập và bộ nhớ DDR4 3200MHz lên tới 32GB. NISE 70-T03 có kết nối mạnh mẽ-cổng LAN Ethernet-based và cổng serial, chủ yếu cho Modbus TCP hoặc Modbus RTU. Đối với kết nối không dây, có 1 khe cắm PCIE và 1 khe cắm M.2 có thể hỗ trợ các mô-đun không dây tùy chọn cho các ứng dụng IoT, ví dụ, Wi-Fi, Bluetooth, 4G LTE, mô-đun 5G cũng như các mô-đun lưu trữ. Nise 70 là lựa chọn phù hợp cho hệ thống thông minh M2M như một IoT gateway thông minh.

* Thông tin đặt hàng

NISE 70-T03 (P/N: 10J00007002X0)
Intel® Core™ i7 1185G7E (Tiger Lake-UP3) processor system with fan


24V, 60W AC /DC power adapter w/o power cord
(P/N: 7400060054X00)

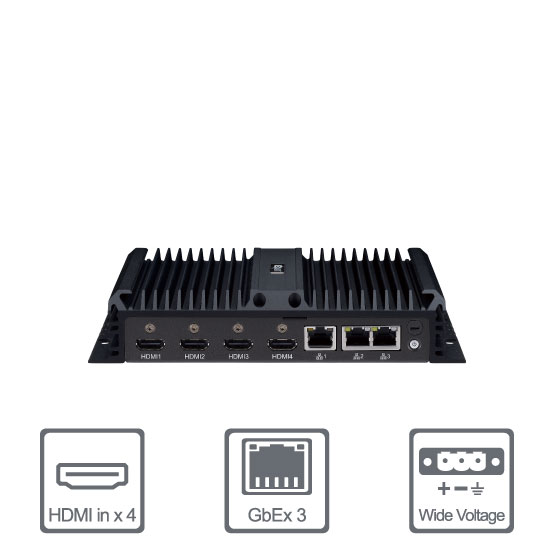

Front I/O Interface
  • ATX power on/off switch
  • 4 x HDMI port, support 4K@30Hz
  • 2 x Intel® I211 and 1 x Intel® WGI219LM GbE LAN ports; support WoL, teaming and PXE
  • 1 x Antenna hole

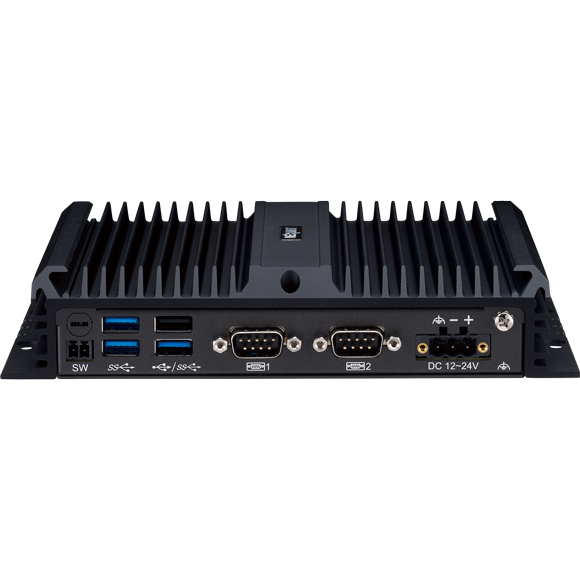

Rear I/O Interface
  • 3 x USB 3.0 ports (900mA per each)
  • 1 x USB 2.0 (500mA per each)
  • 2 x DB9 for COM1 & COM2

- COM1: RS232/422/485 auto flow control
- COM2: full RS232 signal

  • 1 x 2-pin remote power on/off switch
  • 2 x Antenna hole
  • Support+12V to 24V DC input
Display
  • Display Option

4 x HDMI ports, support 4K@30Hz

Expansion
  • 1 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA
  • 1 x M.2, support Key B & B+M module for optional 4G LTE/5G/SATA storage (SATA/PCIe/USB, 2242/3042)
Power
  • Power input: +12 to +24V DC
  • 1 x Optional 24V, 60W power adapter
Environment
  • Operating temperature:

Ambient with air flow: -10°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

  • Storage temperature: -20°C to 80°C
  • Relative humidity: 10% to 95% (non-condensing)
  • Shock protection:

- M.2/mSATA: 50G, half sine, 11ms, IEC60068-2-27

  • Vibration protection with mSATA & M.2 condition:

- Random: 2Grms@5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6

Certifications
  • CE
  • FCC Class A
Physical Characteristics
  • Dimensions: 198.8mm (W) x 150.4mm (D) x 37.7mm (H) with wall mount bracket
  • Construction: Aluminum and metal chassis with fanless design
Internal I/O
  • 4 x GPI and 4 x GPO (programmable to GPI or GPO)
