• 1 x DDR3L 1066/1333 SO-DIMM socket, support up to 8GB

• 1 x M.2, support B & B+M key module (2242)
• 1 x 2.5" HDD (SATA 2.0)

• ATX power on/off switch
• 1 x Power status/1 x HDD access/1 x battery low/1 x programing LEDs
• 2 x Intel® I210-AT GbE LAN ports; support WoL, teaming and PXE
• 1 x HDMI
• 1 x USB 3.0 (900mA per each)
• 2 x USB 2.0 (500mA per each)
• 1 x DB9 for COM1 support RS232/422/485 with auto flow control

- Jumper-free setting on RS232/422/485

• 1 x 2-pin DC input, support +9 to 30VDC input

• 1 x Remote power on/off switch
• DVI-I display output
• 1x DB9 for COM2, support RS232/422/485 with auto flow control

- Jumper-free setting on RS232/422/485

• 2 x DB9 for COM3 & COM4 support RS232 only
• 1 x Mic-in & 1 x Line-out
• 2 x Antenna holes for optional Wi-Fi/3.5G antenna
• 1 x Optional I/F for optional mini-PCIe Wi-Fi/3.5G

• Dual independent display

- HDMI and DVI-I
- HDMI and VGA (via DVI-I to VGA converter)

• 1 x mini-PCIe socket for optional Wi-Fi/3.5G

• Power input: +9VDC to +30VDC
• 1 x Optional 24V, 60W power adapter

• Operating temperature Ambient with air flow: -10°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -30°C to 85°C
• Relative humidity: 10% to 95% (non-condensing)
• Shock protection

- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection w/HDD condition

- Random: 0.5Grms @ 5~500Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6

• Vibration protection w/M.2 & SSD condition

- Random: 2Grms @ 5~500Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6

• CE
• FCC Class A

• Dimensions: 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
• Construction: Aluminum and metal chassis with fanless design

• 4 x GPI and 4 GPO (5V, TTL type)

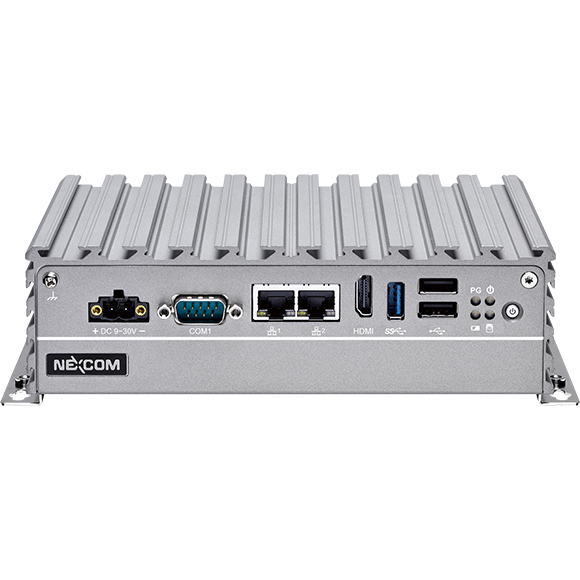

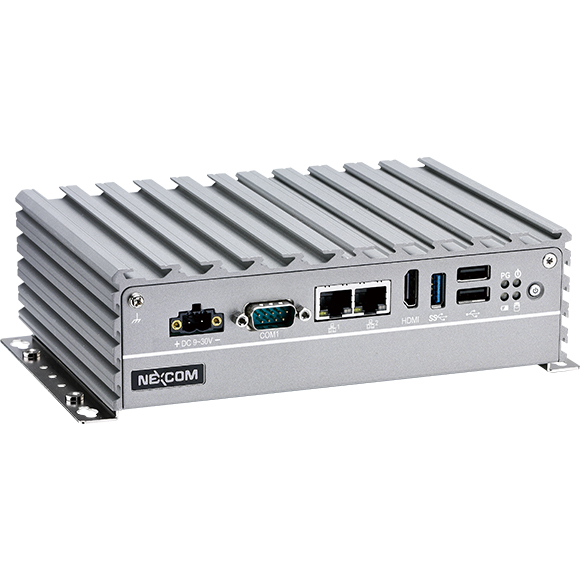

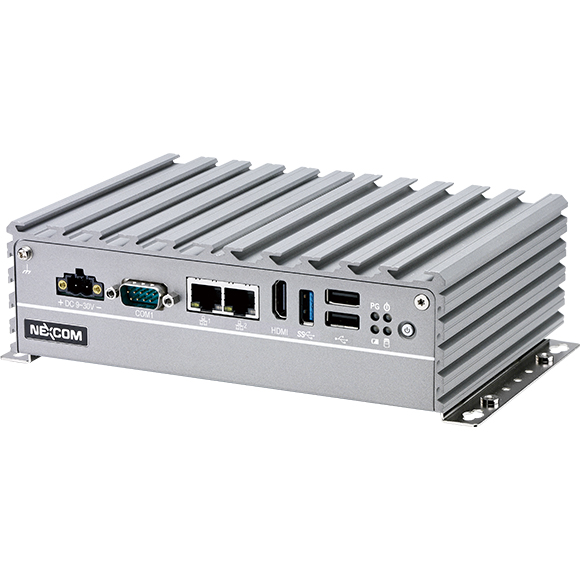

• NISE 105 (P/N: 10J00010501X0)

Intel Atom® Processor E3826 dual core fanless system

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060061X00)
