Thiết bị bảo mật mạng

• Tất cả
• Soc Based Appliance
• X86 Based Appliance

So sánh

DNA 1170A

• Intel Atom® processor C5325, w/ Intel® QAT, BGA type, TDP 41W
• 2 x DDR4 SO-DIMM, up to 16GB
• 4 x 10GbE SFP+ port
• 8 x 1GbE RJ45 LAN port (with 2-pair bypass (default: standard NIC mode))
• 1 x 2.5GbE RJ45 management port
• 1 x M.2 Key M 2242 SSD (SATA 3.0)
• 2 x 2.5" SATA SSD (optional)
• 1 x 65W 19V AC power adapter
• Support Wi-Fi/LTE/5G (reserved for ODM)

Chi tiết

So sánh

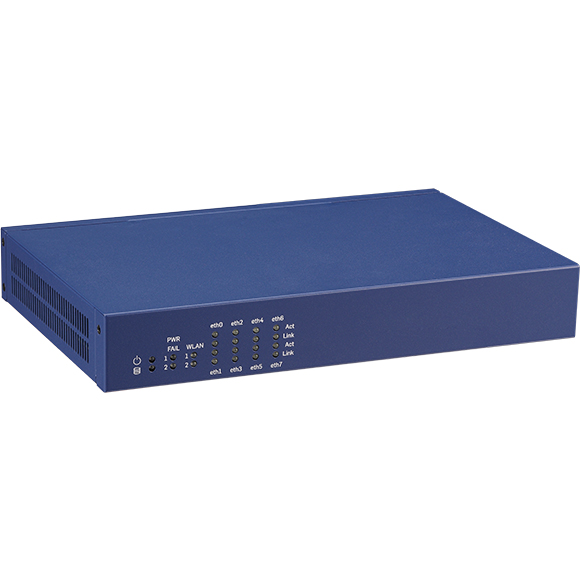

DNA 1160

• Intel Atom® processor C3000 series SoC, BGA type
• DDR4-2133 Long-DIMM ECC memory, up to 32GB
• Support 8 GbE LAN ports
• One CFast socket
• USB 3.0 connector (Type A)
• Backup power (optional)

Chi tiết

So sánh

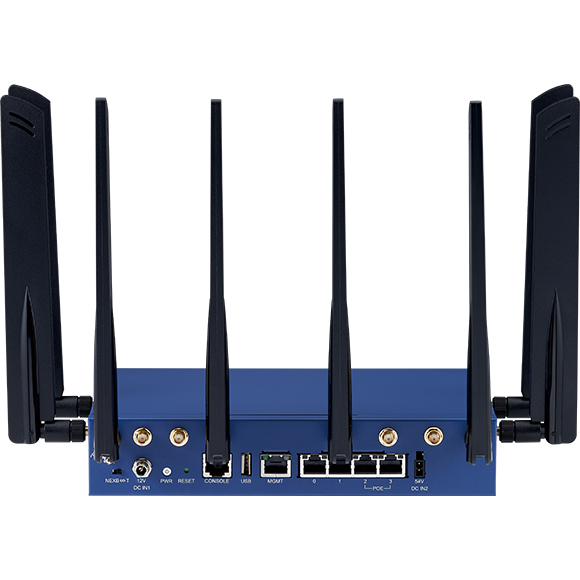

DNA 140

• Intel Atom® x7000RE/E/C processor
• 1 x SO-DIMM slot for DDR5, 4800 MT/s , ECC/non-ECC, up to 16 GB
• eMMC 32GB onboard
• 4 x 2.5GbE RJ45 ports
  - 2 x PoE+ ports, supports up to 30W (802.3at) (optional)
• 1 x 1GbE management port
• 2 x M.2 3042/3052 for LTE/5G FR1 modules
• 1 x mini-PCIe for AI card or Wi-Fi module
• 1 x M.2 2242 SATA SSD
• TPM 2.0 onboard

Chi tiết
