• 1 x DDR3L 1066/1333 SO-DIMM socket, support up to 8GB

• 1 x 2.5" HDD (SATA 3.0)
• 1 x M.2, support B, B+M key module (2242)

• ATX power on/off switch
• LED indicator: power status, HDD access, RTC battery low, Tx/Rx, GPO programmable LEDs

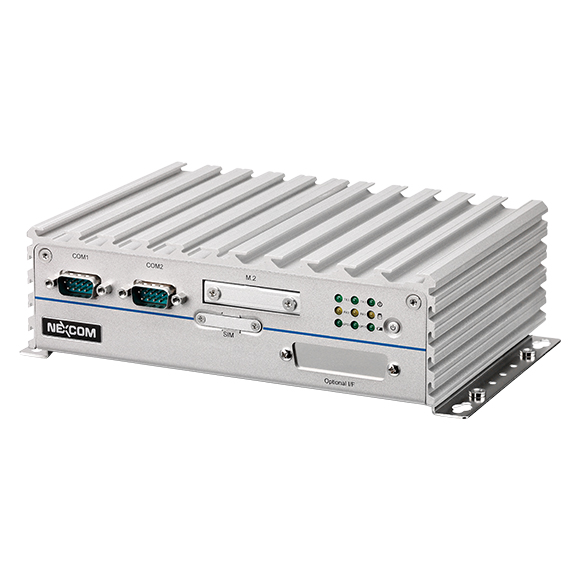

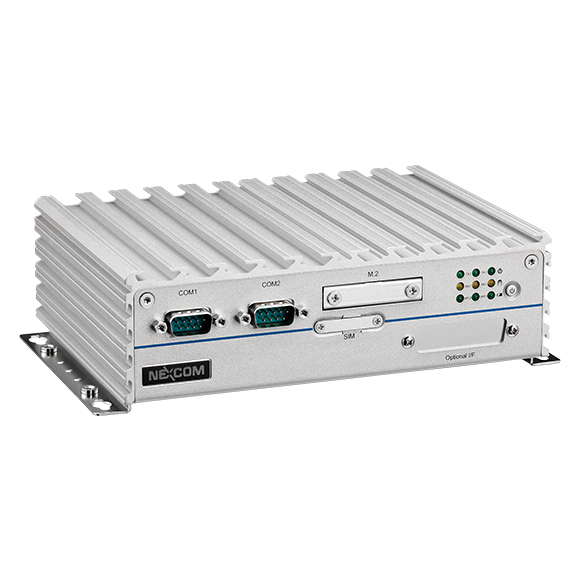

• 2 x DB9 for COM1 & COM2, support RS232/422/485 with auto flow control

- Jumper-free setting on RS232/422/485

• 2 x DB9 for COM3 & COM4, support RS232 only
• 1 x External M.2 socket support B, B+Key M module
• 1 x SIM card holder
• 1 x Optional I/F opening for optional function output or module interface use

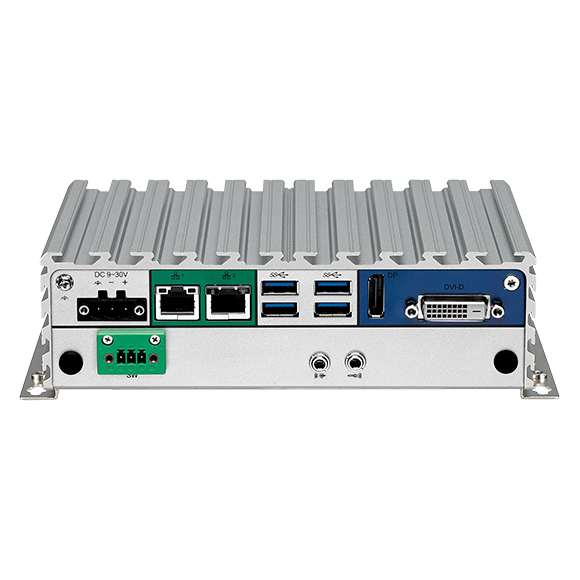

• 1 x Display port
• 1 x DVI-D port
• 4 x USB 3.0 ports (900mA per each)
• 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
• 1 x Line-out and 1 x Mic-in
• 2 x Antenna holes for optional Wi-Fi/3.5G antenna
• 1 x 3-pin DC input, support +9 to 30VDC input
• 1 x 3-pin remote power on/off switch

• Display Option

Dual independent display: DVI-D + DP

• 1 x mini-PCIe socket support optional Wi-Fi/4G LTE/3.5G modules

• Power input: +9 to 30 Vdc
• 1 x Optional 24V, 60W power adapter

• Operating temperature: Ambient with air flow: -20°C to 70°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 95% at 40°C
• Shock protection:

- HDD: 20G @ wall mount, half sine, 11ms(operation), IEC60068 2-27
- M.2: 50G @ wall mount, half sine, 11ms(operation) , IEC60068 2-27

• Vibration protection w/ HDD condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

• Vibration protection w/ M.2 & SSD condition:

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

• CE approval

- EN61000-6-2
- EN61000-6-4

• FCC Class A

• Dimensions: 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
• Construction: Aluminum chassis with fanless design

• 4 x GPI and 4 x GPO (5V, TTL type)

• NISE 107 (P/N: 10J00010701X0)

Intel Atom® x5-E3930 Dual Core, 1.80GHz fanless system

• NISE 107-E3940 (P/N: 10J00010700X0)

Intel Atom® x5-E3940 Quad Core, 1.80GHz fanless system

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
