• 1 x DDR3L 1066/1333 SO-DIMM socket, support up to 8GB

• 1 x 2.5" HDD (SATA3.0)

• 1 x HDMI + 1 x DVI-D + 1 x DP display port

• 1 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G modules

• Power input: +9 to 30 Vdc
• 1 x optional 24V, 60W power adapter

• Operating Temperature: Ambient with air flow: -10°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -30°C to 85°C

• Relative Humidity: 10% to 95% (non-condensing)
• Shock protection:

- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection w/HDD condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

• Vibration protection w/CFast & SSD condition:

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

• CE
• FCC Class A

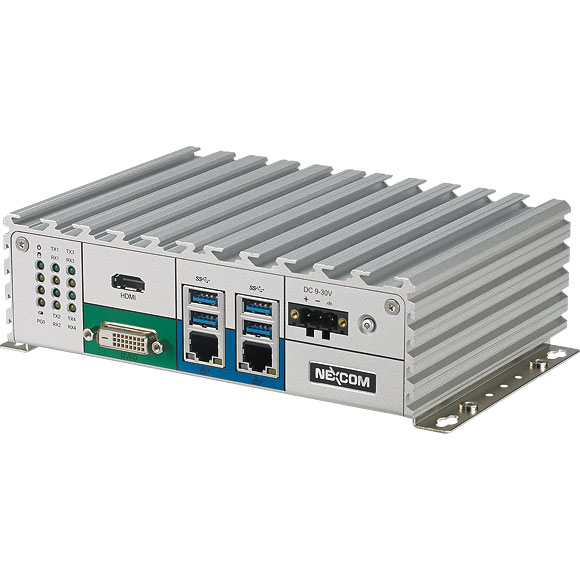

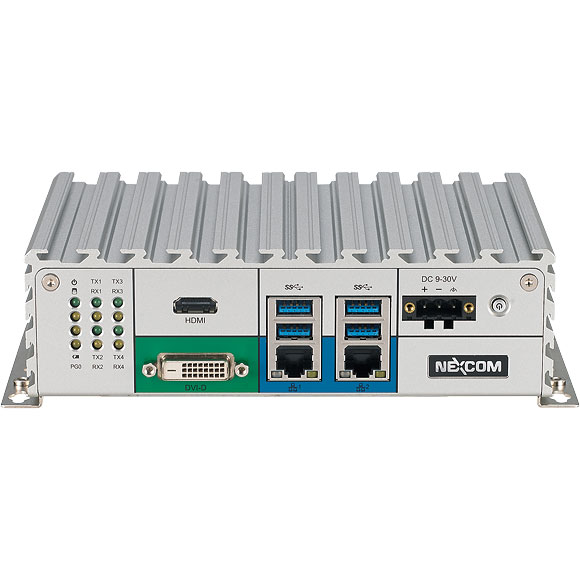

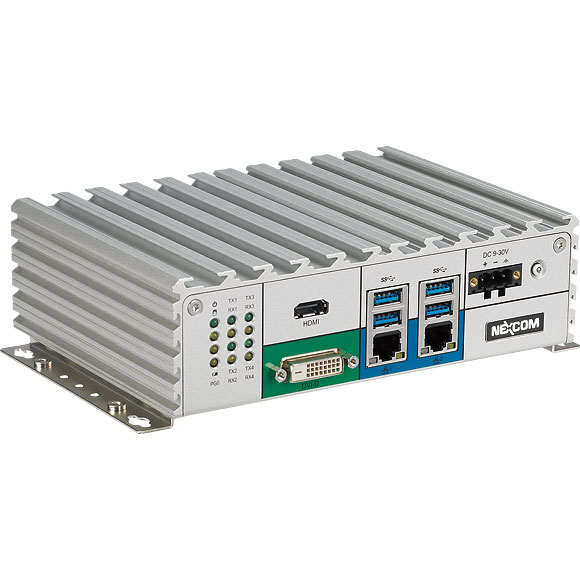

I/O Interface-Front

• ATX power on/off switch
• 1 x Power status/1 x HDD access/1 x battery low/1 x programing/4 x Tx/Rx LEDs
• 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
• 1 x HDMI + 1x DVI-D display output4 x USB 3.0 (900mA per each)
• 1 x 3-pin DC input, support +9 to 30VDC input

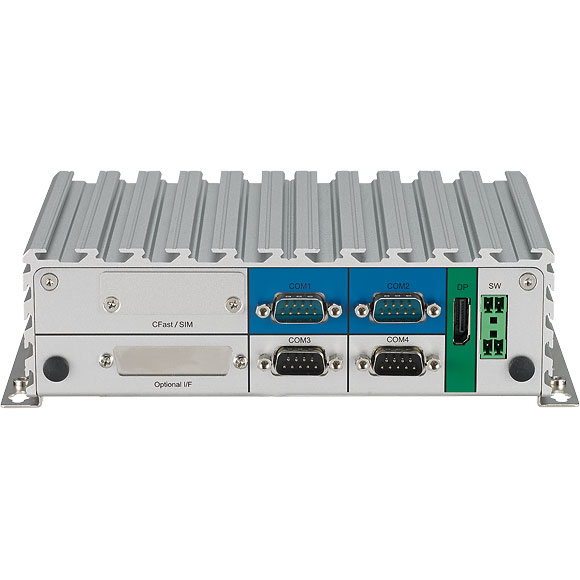

I/O Interface - Rear

• 1 x Display Port
• 1 x SIM Card holder
• 1 x external CFast socket
• 2 x DB9 for RS232/422/485 with auto flow control (COM1 and COM2)
• 2 x DB9 for RS232 (COM3 and COM4)
• 2 x Antenna holes for optional Wi-Fi/3.5G antenna
• 1 x remote power on/off switch
• 1 x optional I/F for optional Mini-PCIe Wi-Fi/3.5G/LTE/NEXCOM's automation module output

I/O Interface - Internal

• 4 x GPI and 4 x GPO (5V, TTL type)

• Dimensions: 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
• Construction: Aluminum chassis with fanless design

• Windows 7, 64-bit only
• Windows 8.1 , 64-bit only
• Windows Embedded Standard 7, 64-bit only
• Windows 10 IoT Enterprise, 64-bit only
• Linux Kernel version 4.4
