• 1 x DDR3L 1866 SO-DIMM socket, support up to 8GB

• 2 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA

• ATX power on/off switch

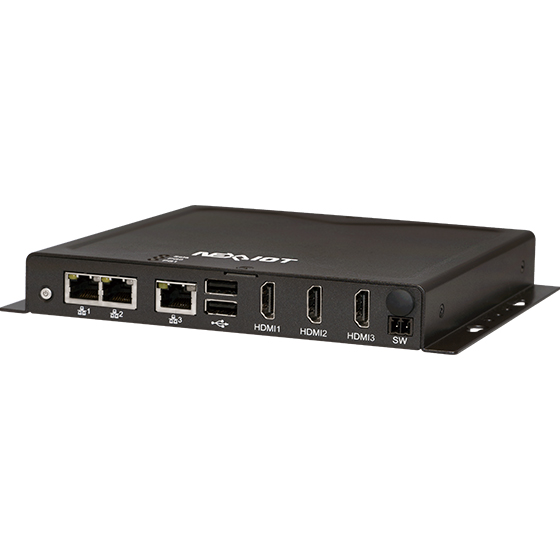

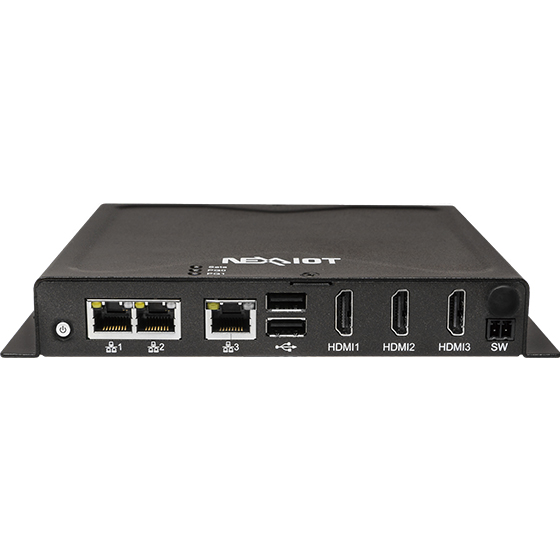

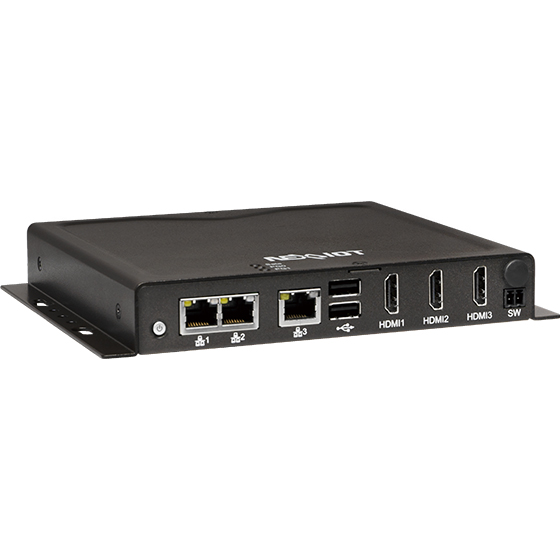

• 3 x HDMI
• 3 x Intel® I210 GbE LAN ports; support WoL, teaming and PXE
• 2 x USB 2.0 (500mA per each)
• 1 x Antenna hole
• 1 x 2-pin remote power on/off switch

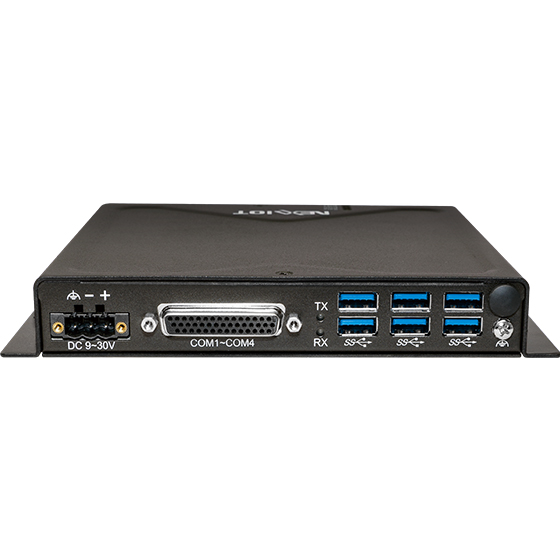

• 6 x USB 3.0 ports (900mA per each)
• 1 x DB44 serial port for 4 x COM port

- COM1: RS232/422/485 with auto flow control and jumper-free setting
- COM2 & COM3 & COM4: full RS232 signalLED indicator for TX/RX

• 1 x Antenna hole
• 1 x 3-pin DC input, support +9V to 30V DC input

• Display Option: 3 x HDMI

• 2 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA

• Power input: +9 to +30V DC
• 1 x Optional 24V, 60W power adapter

• Operating temperature: Ambient with air flow: -10°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 75°C
• Relative humidity: 10% to 95% (non-condensing)
• Shock protection

- mSATA: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection with mSATA condition

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

• CE
• FCC Class A

• Dimensions: 162mm (W) x 150mm (D) x 26mm (H) without wall mount bracket
• Construction: Metal chassis with fanless design

• 4 x GPI and 4 x GPO (programmable to GPI or GPO)
• 1 x nano-SIM card holder

• Windows 10 64-bit
• Linux Kernel

• NISE 52-A01 (P/N: 10J00005200X0)

Intel® Celeron® J3455 processor fanless system

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
