NISE 2410-J1900/2410E-J1900

Intel® Celeron® Quad Core Processor J1900 Fanless System

Tính năng chính

Onboard Intel® Celeron® Quad Core processor J1900, 2.0GHz
Dual independent display from DVI-I and HDMI®
2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE
4 x USB 2.0 & 1 x USB 3.0
2 x mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G
2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control
Support -5~55 degree Celus extended operating temperature
Support 9-30V DC input

Giá sản phẩm: Liên hệ

Powered by Intel® Celeron® Quad Core processor J1900, 2.0GHz. Driven by the latest Quad Core Intel® Celeron® processor, NISE 2410-J1900/NISE 2410E-J1900 can provide excellent computing power and is more power-efficient than the platforms based on the previous generation Intel Atom® product family.

NISE 2410-J1900/NISE 2410E-J1900 supports up to 8G DDR3L memory and have several options on storage devices like CFast, HDD, SSD or mSATA. The NISE 2410-J1900/NISE 2410E-J1900 comes with 1 x HDMI^®, 1 x DVI-I, 2 x GbE LAN ports, 2x COM port with RS232/422/485 and 5x USB ports including one USB 3.0. NISE 2410-J1900/NISE 2410E-J1900 supports 9~30V DC input, and can be operated in an extended operating temperature range from -5 to 55 degrees Celsius. This Fanless system supports two mini-PCIe modules, which can be an excellent platform for IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and factory automation applications with optional fieldbus module. Its expansion versatility makes NISE 2410-J1900/NISE 2410E-J1900 a perfect platform for factory automation and M2M intelligent computing applications.

Processor	Onboard Intel® Celeron® Quad Core processor J1900, 2.0GHz Support Intel Atom® E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with differenceS KUs, by request
Memory	2 x DDR3L 1066/1333 SO-DIMM socket, support up to 8GB
Storage	1 x CFast card socket (SATA 2.0) 1 x 2.5" HDD space (SATA 2.0) 1 x mSATA from mini-PCIe socket if SATA HDD is not installed
Expansion	2 x mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G NISE 2410-J1900 : one PCI expansion - Add-on card length: 176mm max. - Power consumption: 10W/slot max. NISE 2410E-J1900 : one PCIe x4 expansion (only support PCIe x1 speed & signal) - Add-on card length: 176mm max. - Power consumption: 10W/slot max.
Power	Power input: +9Vdc to +30Vdc 1 x Optional 24V, 60W power adapter
Environment	Operating temperature: - Ambient with airflow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -30°C to 85°C Relative humidity: 10% to 95% (non-condensing) Shock protection - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/ HDD condition - Random: 0.5Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6 Vibration protection w/ CFast & SSD condition - Random: 2Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6
Certifications	CE FCC Class A

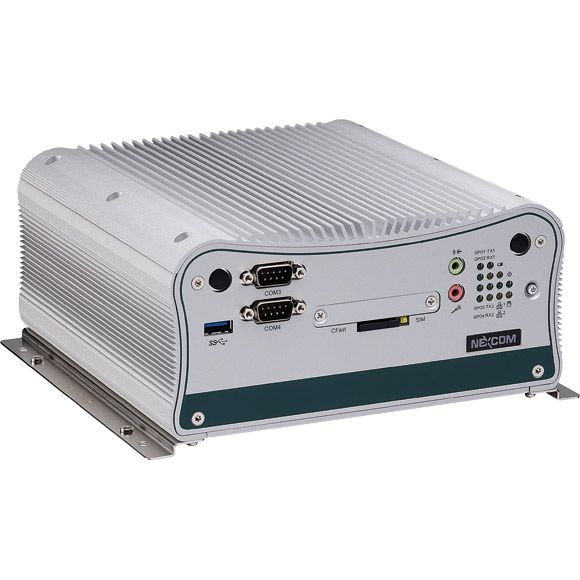

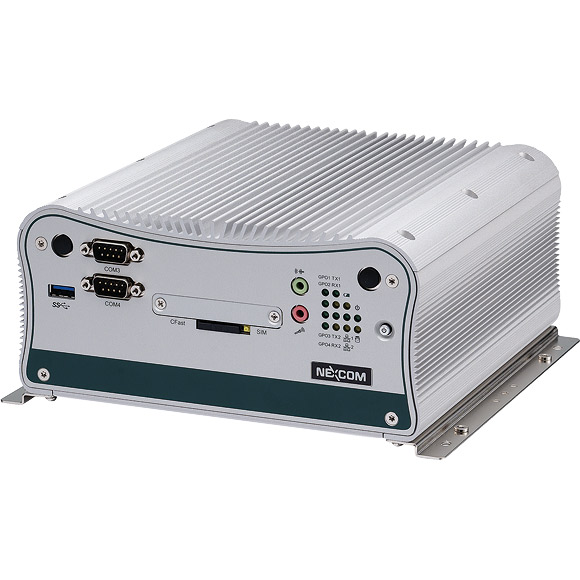

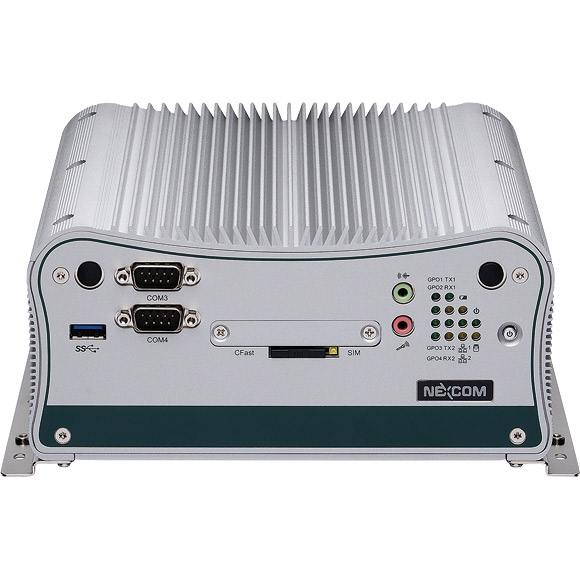

I/O Ports	Front I/O Interface ATX power on/off switch 1 x Power status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs 2 x DB9 RS232 for COM3 & COM4 1 x External CFast socket 1 x SIM card holder 1 x USB 3.0 (900mA per each) 1 x Mic-in & 1 x Line-out 2 x Antenna holes for optional Wi-Fi/3.5G antenna I/O Interface - Rear 4 x USB 2.0 1 x DVI-I display output 1 x HDMI® display output 1 x Remote power on/off switch 2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/485 1 x 3-pin DC input, support +9 to 30VDC input I/O Interface - Internal 4 x GPI and 4 GPO (5V, TTL type)
Physical Characteristics	Dimensions: 195mm (W) x 200mm (D) x 90mm (H) without wall-mount bracket Construction: Aluminum and metal chassis with fanless design
Support OS	Windows 8, 32-bit/64-bit Windows Embedded Standard 8, 32-bt/64-bit Windows 7, 32-bit/64-bit Windows Embedded Standard 7, 32-bit/64-bit Linux Kernel version 3.8.0
Hãng	NEXCOM
CPU Support	Intel® Celeron® Processor J1900
Operating System	Windows 7, Windows 8Linux

DATASHEETS

NISE2410-J1900-series.pdf

[ NISE2410-J1900-series.pdf , 0.63MB , Mar.15.2025 ]
