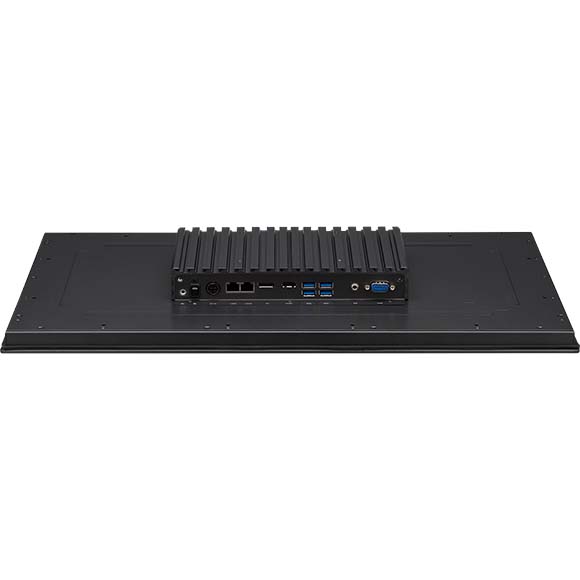

• 1 x 12V DC Jack
• 2 x RJ45 Intel® Gigabit LAN port
• 1 x DP++1 x HDMI 2.0
• 4 x USB 3.0
• 1 x Line out
• 1 x RS232/422/485
• LED for Power on/off
• Power switch

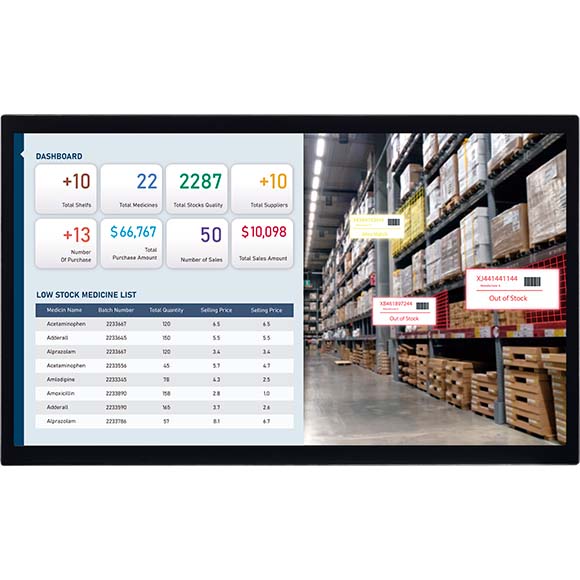

• LCD size: Innolux G-series 23.8”, 16:9
• Resolution: Full HD 1920 x 1080
• Luminance

- LCD panel: 350cd/m2
- XPPC PCAP touch: 85% of panel’s luminance after air bonding

• Contrast ratio: 1000:1
• LCD color: 16.7M
• Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
• Touch Screen10-Point PCAP (Projected Capacitive Touch)
• Air bonding
• Glass surface treatment: AS + AG

• 1 x M.2 2230 Key E , support optional WiFi modules

• 1 x 96W AC/DC lockable adapter included in accessory
• Input: 100VAC to 240VAC
• Output: DC+12VDC

• Vibration

- IEC 68 2-64
- 2G @ sine, 5~500Hz, 1hr/axis
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

• Shock

- IEC 68 2-27
- 20g peak acceleration (11 msec. duration)

• Temperature

- Operating temperature: with 0.35 m/s air flow: 0°C~50°C
- Storage temperature: -20°C~60°C

• Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%

• CE (EN55035 + EN55032)
• FCC Class A (EMI part 15B)
• LVD (EN62368-1)

• Color/materia: black metal sheet
• Support

- VESA mount 100mm x 100mm
- Panel mount
- Open frame

• System: 557mm x 336.7mm x 55mm
• System weight: 5.8 kg
• Package: 650mm x 480mm x 170mm
• Package weight: 7.85 kg
