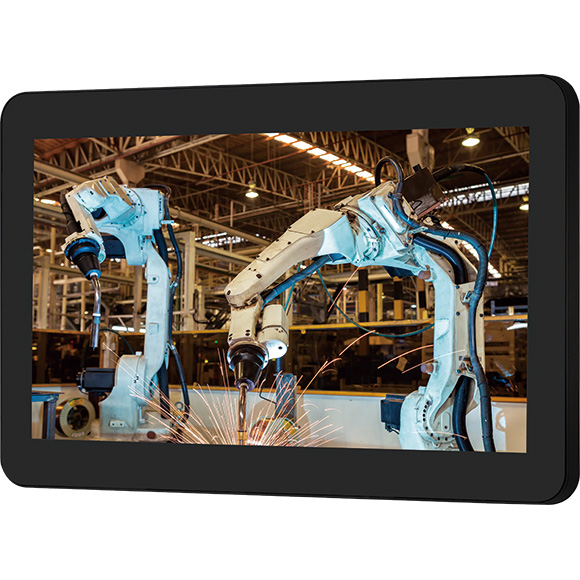

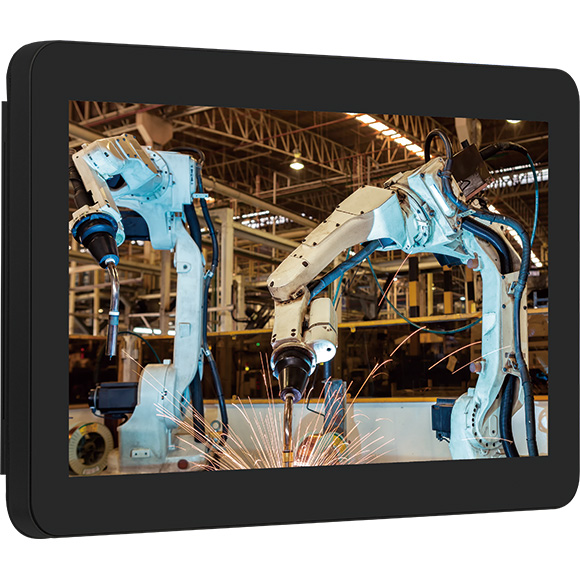

IPPC 1660-A11

15.6” TFT HD 16:9 Heavy Industrial Panel PC with Intel® Processor N97, P-Cap Touch Screen, 8GB DDR5, 1x PCIe slot

Tính năng chính

16:9 15.6” HD Panel PC with P-Cap touch
Intel® Processor N97, Quad Core 2.0GHz, 6M Cache
1x DDR5-4800MHz with 8GB installed by default
Support multi- Display for DP; 1x USB-C(DP Alt. Mode)
Dual Intel® 2.5GbE LAN ports
2 x USB 3.2, 2 x RS-232/422/485 with isolation(optional)
Support 1 x M.2 Key B 2242 SSD (SATA 3.0) for storage
Support 1 x PCIe x1 Expansion Slot
IP66-compliant front panel
Mounting support: panel/wall/stand/VESA (100mm x 100mm)
DC power input 24V DC
Support TPM 2.0

Giá sản phẩm: Liên hệ

The IPPC 1660-A11 is a 15.6” HD fanless panel PC powered by Intel^® N-Series processor, offering high efficiency and low power consumption. It features an IP66-rated front panel and a die-cast aluminum bezel and metal enclosure for durability, meeting IEC 61000-6-2/EN 61000-6-4 standards.

Expansion options include PCIe, Mini PCIe, and M.2 slots for add-ons like Fieldbus and Wi-Fi/LTE/5G modules. It supports dual 2.5GbE connectors for fast data transfer, reliable networking, and DP and USB-C (DP Alt. Mode) for multiple displays. Ideal for factory automation and IoT applications, the IPPC 1660-A11 combines performance, reliability, and flexibility.

Processor	CPU: Onboard Alder Lake N Intel® processor N97 BIOS: AMI BIOS Support TPM 2.0
Memory	System memory: 1 x DDR5 SO-DIMM - Max.16GB (non-ECC); pre-install 8G industrial grade - Memory as the manufacture configuration for shipment
Storage	Storage device: - 1 x M.2 Key B 2242 SSD (SATA 3.0)

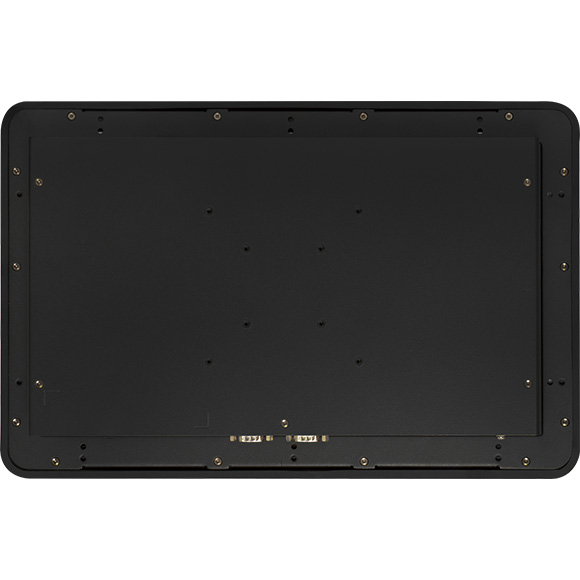

Rear I/O Interface	Power button 1 x 2-pin remote power on/off terminal block 1 x 3-pin 24V DC input terminal block 2 x USB 3.2 Type-A Ethernet: 2 x RJ45 1 x DP1.4a, up to 4K@60Hz 1 x USB 3.2 Type-C, supports DP1.4a; up to 4K@60Hz DB9 for COM1 & COM2 - COM1: RS-232/422/485 auto flow control - COM2: RS-232/422/485 auto flow control 1 x DIO (2 inputs/2 outputs) + Audio (via option cable/bracket) 2 x RS-232 (via option cable/bracket)
Display	Panel LCD size: 15.6”, 16:9Resolution: HD 1366x 768 Luminance: 400cd/m² Contrast ratio: 500:1 LCD Color: 16.2M Viewing angle: 80(U), 80(D), 85(L), 85(R) Backlight: LED Touch: 10-Point Projected Capacitive Touch Light transmission: 86% Interface: USB Anti-scratch surface: 6H hardness
Environment	Die-cast aluminum alloy front bezel with metal enclosure IP protection: IP66 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power - Power input: 24V DC ± 20% - AT/ATX power mode (default: ATX power mode) - Power adapter: optional AC to DC power adapter (24V DC, 60W) Vibration: - 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC 60068-2-64 - 2G@random condition, 5-500Hz, 1hr/axis (Non-operating), IEC 60068-2-64 Shock: - 20G@VESA mount, half sine, 11ms, IEC 60068-2-27 Temperature: - Operating temperature: -10 °C~55 °C (Ambient with airflow) - Storage temperature: -20°C~75°C Operating humidity: 10%~90%, non-condensing (limits to be at 90% RH at max 50°C)
Certifications	CE approval FCC Class A
Physical Characteristics	Dimension: 396.99 x 257.11 x 65.7 mm Weight: 5.7kg
Internal I/O	1 x Mini PCIe (PCIe x1, USB 2.0, SIM) for Wi-Fi/FBI/LTE 1 x M.2 Key B 2242 SSD (SATA 3.0) 1 x M.2 Key B 3042/3052 (PCIe x1, USB 3.0, USB 2.0, SIM) for 5G/LTE 1 x nano-SIM card slot 1 x USB 2.0 Type-A 1 x PCIe x1 slot
Support OS	Windows 11 Windows 10, 64-bit
Hãng	NEXCOM
