XPPC 10-10N97

10.1” TFT WXGA 16:10 Slim Bezel Embedded Touch Screen Computer Powered by Intel® Processor N97

Tính năng chính

10. 1” TFT WXGA 16:10 panel
10 Points P-Cap multi-touch with a slim bezel design
IP65 protection on the front
Support: VESA / Panel / Open Frame Mounting
Intel® Processor N97, 6M Cache, up to 3.6GHz
1 x DDR4 SO-DIMM, up to 16 GB
1x M.2 Key M 2242, supports PCIe x 1 & SATA for storage
1 x full-size Mini PCIe, available for Wi-Fi / LTE module
Support DC 12V power input

Giá sản phẩm: Liên hệ

The 10.1” embedded fanless panel PC XPPC10-10N97, embedded with an industrial motherboard, is intended for vertical industrial applications. XPPC10-10N97 features an industrial-grade panel with 1280 x 800 (WXGA) resolution and 400 nits brightness. The front panel adopts a slim bezel design and complies with the IP65 rating. Its flexible mounting options make it the perfect fit for industrial applications.

XPPC10-10N97 is powered by an Intel^® Processor N97. Built-in Intel® UHD Graphics is available for AI inference, enhancing visual quality and graphics performance. With rich I/O of USB 2.0, USB 3.2, GL AN, and COM, it fulfills the demands of various edge computing applications. XPPC10-10N97 is ideal for diverse applications, such as self-service kiosks, smart retail, and payment machines.

Processor	Intel® Processor N97 Intel® UHD Graphics TPM 2.0
Memory	1 x DDR4 SO-DIMM, non-ECC, up to 16GB
Storage	1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1, SATA 3.0) 1 x Mini PCIe slot, supports mSATA
Display	LCD size: 10.1”, 16:10 Resolution: 1280 x 800 (WXGA) Luminance: - LCD panel: industrial grade 400cd/m2 - XPPC PCAP touch: 90% of the panel’s luminance after optical bonding Contrast ratio: 1000 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89(R) Touch Screen10 points P-Cap (Projected Capacitive Touch) Optical Bonding Glass Surface Treatment: AS (Anti-Smudge Coating for easy cleaning)
Power	Input: DC 12V input - 1 x 12V, 60W AC/DC lockable adapter included in accessory
Environment	Operating temperature: - Ambient with airflow: 0°C ~ 50°C - Storage temperature: -20°C ~ 60°C Relative humidity: 0%~90% (non-condensing) Shock protection: 20g peak acceleration, 11 ms according to IEC 60068-2-27 Vibration protection - Random: 2.2Grms@5~500Hz, 0.5hr/axis (non-operating), IEC 60068-2-64 - Sinusoidal: 2Grms@5~500Hz, 1hr/axis, IEC 60068 -2-6
Certifications	CE (EMC EN 55035 + EN 55032) FCC Class A (EMI Part 15B) LVD (EN 62368-1)

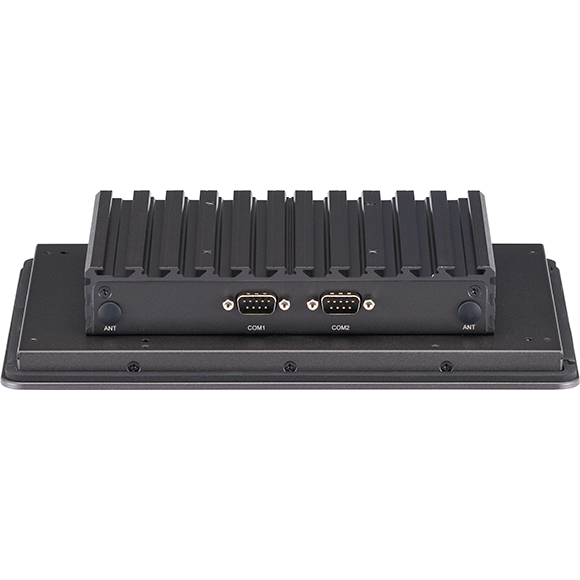

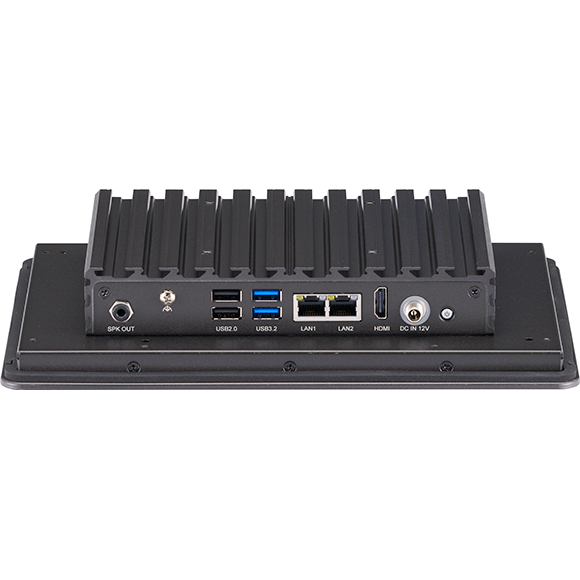

I/O Ports	I/O Interface - Rear 1 x DC 12V input 2 x 1GbE RJ45 port, Intel® I210AT 1 x HDMI 2.0b, up to 3840x2160@60Hz 2 x USB 3.2 Gen 1x1, Type-A 2 x USB 2.0, Type-A 1 x Speaker out (can’t hot plug) 1 x Power button I/O Interface - Front 2 x Antenna hole 1 x COM port, supports RS-232/422/485I/O Interface - Internal 1 x 4-pin header for Line out1 x 10-pin header for 4-in & 4-out GPIO 1 x 9-pin header for COM2 RS-232 1 x 3-pin jumper for LCD panel voltage 3.3V/5V setting 1 x DC Power thru one 2-pin pitch=3 . 96 mm ATX connector (lockable)
Physical Characteristics	System Unit - Dimension: 260.3mm (W) x 178.3mm (D) x 47.9mm (H) - Net weight: 1.62kg/ Unit Support - VESA Mount 75mm x 75mm - Panel Mount (optional kit) - Open Frame (optional kit) Package Carton - Dimension: 343mm x 308mm x 158mm - Gross weight: 2.7kg/ (1 unit / per carton)
Support OS	Windows 11 Windows 10, 64bit Linux
Size	10" - 11"
Hãng	NEXCOM

DATASHEETS

XPPC10-10N97.pdf

[ XPPC10-10N97.pdf , 0.47MB , Feb.06.2025 ]
