• 2 x DDR5 SO-DIMM, non-ECC, up to 96GB

• 1 x M.2 Key M 2280 SSD (PCIe 4.0 x4, SATA 3.0)

1 x M.2 Key B 3042/3052
-Support a 5G/LTE module (PCIe 4.0 x1, USB 3.2, USB 2.0)

1 x M.2 Key E 2230
-Support a Wi-Fi module (PCIe 4.0 x1, USB 2.0)

DC 12V power input
-1 x 12V, 96W AC/DC lockable adapter included in accessory

• Temperature:

-Ambient with air flow: 0°C~50°C
-Storage temperature: -20°C~80°C

• Relative humidity: 0%~90% (non-condensing)
• Shock protection: 20g peak acceleration, 11ms according to IEC 60068-2-27
• Vibration protection

-Random: 2.2Grms@5~500Hz, 0.5hr/axis (non-operating), IEC 60068-2-64
-Sinusoidal: 2Grms@5~500Hz, 1hr/axis, IEC 60068-2-6

• CE (EMC EN 55035 + EN 55032)
• FCC Class A (EMI Part 15B)
• LVD (EN 62368-1)

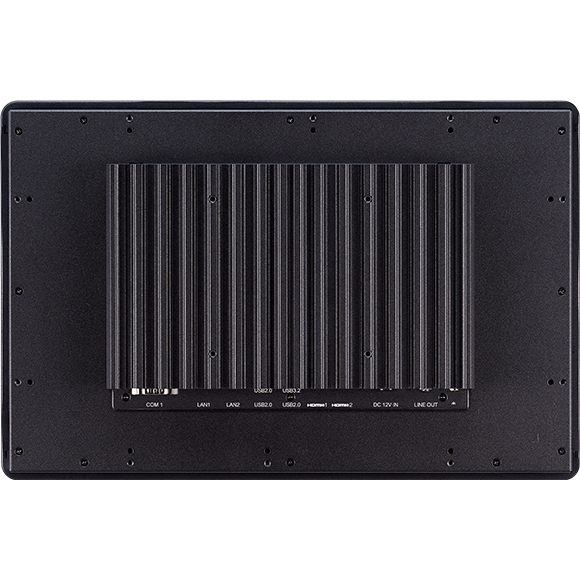

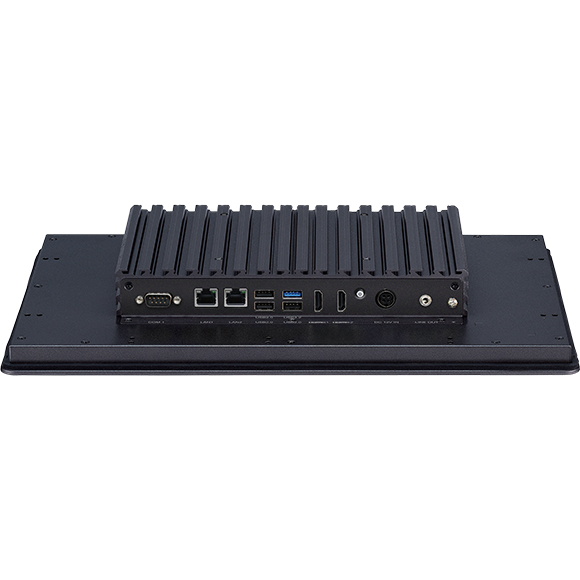

I/O Interface Rear

• 1 x DC 12V power input
• 1 x 1GbE RJ45 port, Intel® I219-LM
• 1 x 2.5GbE RJ45 port, Intel® I226-V
• 2 x HDMI® 2.0, up to 3840x2160@60Hz
• 1 x USB 3.2 Gen 1x1, Type-A3 x USB 2.0, Type-A
• 1 x COM port, supports RS-232/422/485
• 1 x Line out
• 1 x Power button

I/O Interface Front

• 2 x Antenna hole

I/O Interface Internal

• 2 x 6-pin header for 4 x USB 2.0 port
• 1 x 10-pin header for 4-in & 4-out GPIO
• 1 x 9-pin header for RS-232 (COM2)
• 1 x 3-pin jumper for LCD panel voltage 3.3V/5V setting
• 1 x DC Power thru one 2-pin pitch=3.96mm ATX connector (lockable)

Mechanical

• Dimensions: 382.2mm (W) x 251.4mm (D) x 51.8mm (H)
• Net weight: 2.84kg
• Mounting type:

-VESA Mount 100mm x 100mm
-Panel Mount (optional kit)
-Open Frame (optional kit)

Package Information

• Dimensions: 481mm (W) x 361mm (D) x 220mm (H)
•  Gross weight: 4.5kg (1 unit per carton)

• Windows 11
• Windows 10, 64-bit
• Linux
