• 2 x 260-pin DDR4 SO-DIMM socket, support up to max 32GB DDR4 2933MHz (non-ECC)

• Storage device:

- 1 x M.2 2242 Key B
- 1 x mini-PCIe
- 1 x Hard drive tray

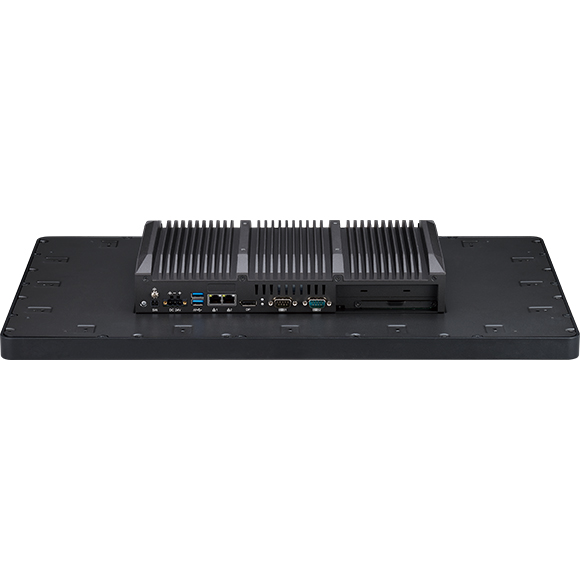

• 2 x DB9 for COM1&COM2

- COM1: RS232
- COM2: RS232/422/485 auto flow control (isolation)

• 2 x USB 3.1 ports (900mA per each)
• 1 x DP++2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE
• 1 x 2-pin remote power on/off switch
• 24V DC input

• LCD size: 23.8”, 16:9
• LCD interface: LVDS
• Resolution: FHD 1920 x 1080
• Luminance: 450cd/m²
• Viewing angle: 178 (H), 178 (V)
• Backlight: LED
• Ten points P-Cap (projected capacitive touch)
• Light transmission: 90 +/- 3%
• Interface: USB
• Anti-scratch surface: 7H hardness

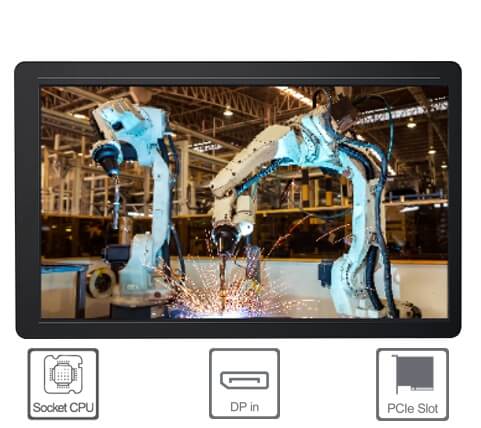

• One PCIe x4 expansion slot: FHFL, 40W max
• 1 x mini-PCIe for Wi-Fi/mSATA
• 1 x M.2 3042/3052 Key B for 5G/Wi-Fi
• 1 x Nano SIM card onboard

• AT/ATX power mode (default: ATX power mode)
• Power input: +24V DC
• Power adapter: optional AC to DC power adapter (24V DC, 120W)

• Operating temperature:

- Ambient with air flow: 0°C to 50°C
- Storage temperature: -20°C to 75°C

• Relative humidity: 10% to 90% (non-condensing)
• Shock protection:

- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection with SSD&M.2 condition:

- 2.0Grms @ random condition, 5~500Hz, 1hr/axis (M.2/ SSD operating)

• CE approval- EN61000-6-2- EN61000-6-4
• FCC Class A

• Dimensions: 590mm x 366.6mm x 77.66mm

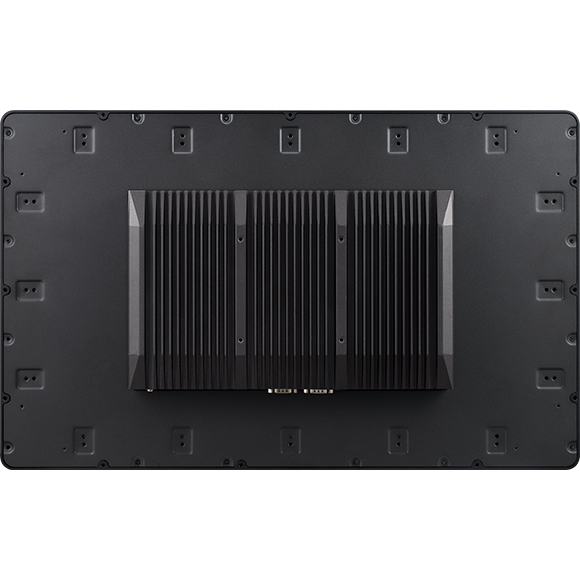

• Construction: Support Panel/ Wall / VESA (100x100mm) mount
• IP65 Rating front panel
• Weight Information: 11.5 kg

• Windows 10 64-bit
• Windows 11 64-bit

Barebone

• IPPC 2411-C11 (P/N: 10II0241100X0)

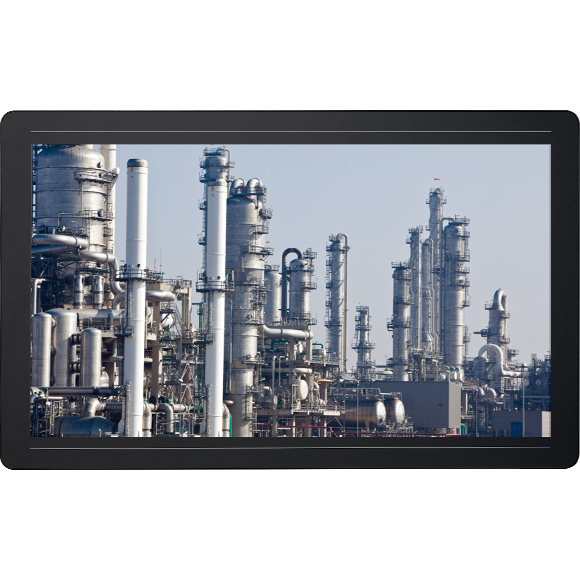

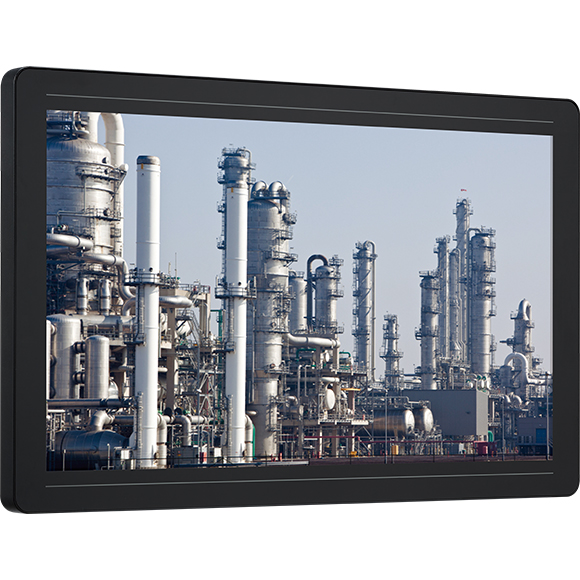

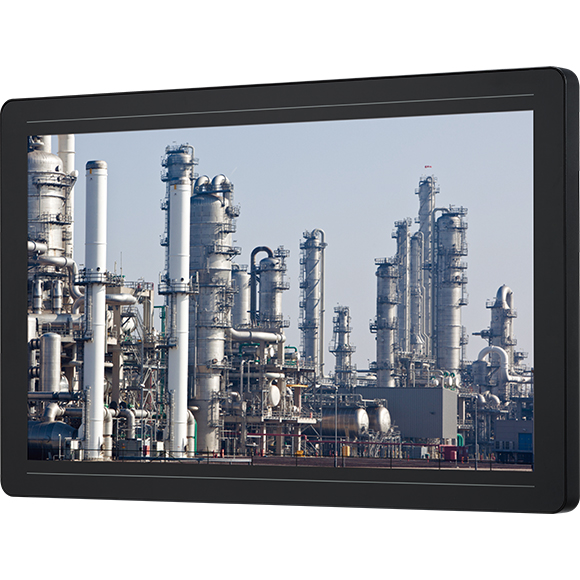

23.8.” TFT FHD 16:9 heavy industrial panel PC 10th Gen Intel® Core™ i processor support, P-Cap screen, DDR4, PCIe slot supported

Others
24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060061X00)
24V, 120W AC/DC power adapter w/o power cord (P/N: 7400120029X00)
