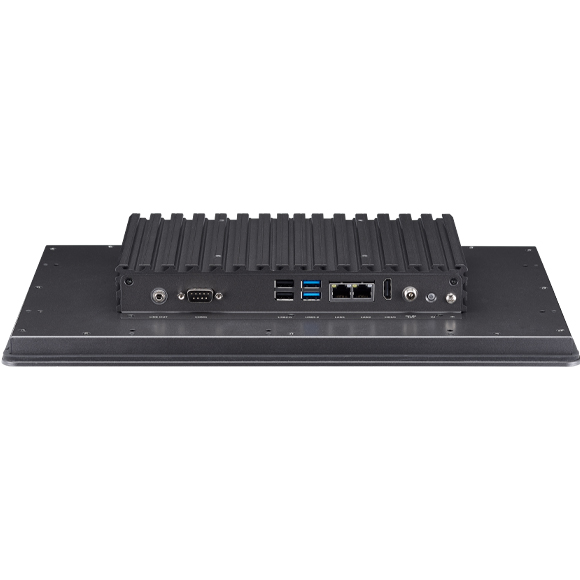

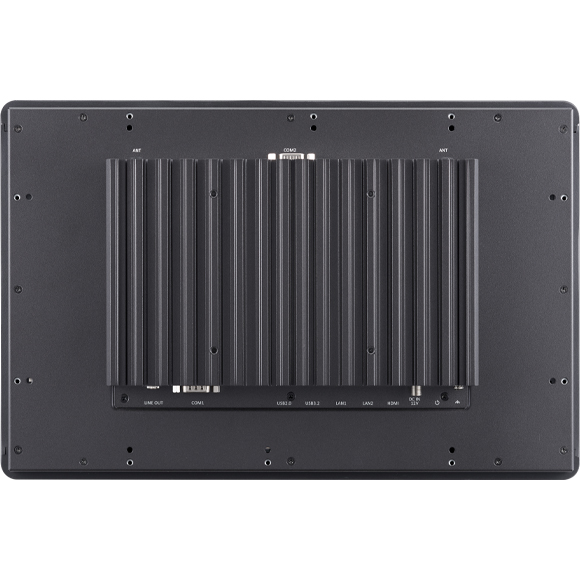

• 1 x DDR4 SO-DIMM, non-ECC, up to 16GB

• 1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1, SATA 3.0)
• 1 x Mini PCIe slot, supports mSATA

• 2 x Antenna hole
• 1 x COM port, supports RS232 (RI/5V/12V)

• 1 x +12V DC in2 x 1GbE RJ45 port, Intel® i210AT
• 1 x HDMI 2.0b, up to 3840x2160@60Hz
• 2 x USB 3.2 Gen 1x1, Type-A
• 2 x USB 2.0, Type-A
• 1 x COM port, supports RS-232/RS422/RS485
• 1 x Line out
• 1 x Power button

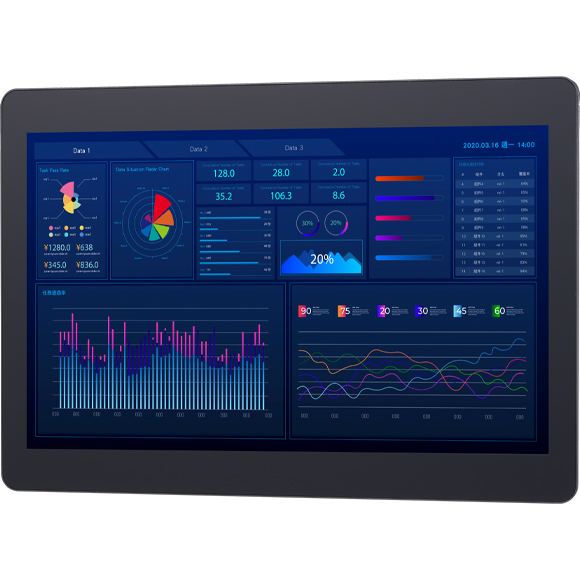

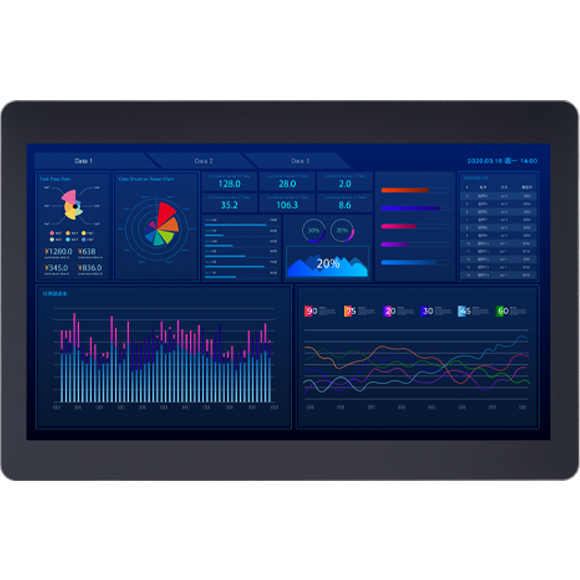

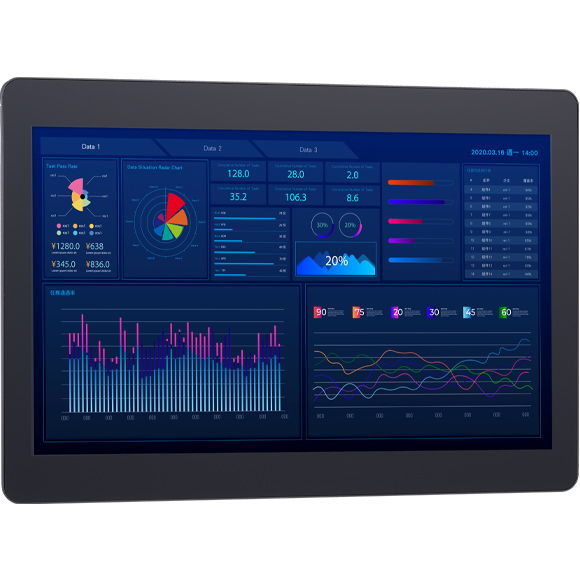

LCD size: 15.6”, 16:9

Resolution: Full HD 1920 x 1080

Luminance:
- LCD panel: industrial grade 450cd/m2
- XPPC PCAP touch: 90% of the panel’s luminance after optical bonding

Contrast ratio: 1000LCD color: 16.7MViewing angle: 89 (U), 89 (D), 89 (L), 89(R)

Touch Screen: 10 points P-Cap (Projected CapacitiveTouch)

Optical Bonding

Glass Surface Treatment: AS (Anti-Smudge Coating for easy cleaning)

• 1 x Mini PCIe slot, supports Wi-Fi/BT module

• 1 x 12V, 65W AC/DC lockable adapter included in accessory
• +12VDC In

Operating temperature:
- Ambient with airflow: 0°C ~ 50°C
- Storage temperature: -20°C ~ 60°C

Relative humidity: 0%~90% (non-condensing)

Shock protection: 20g peak acceleration, 11 ms according to IEC60068-2-27

Vibration protection:
- Random: 2.2Grms @ 5~500Hz, 0.5hr/axis (non-operating),IEC60068-2-64

Sinusoidal: 2Grms @5~500Hz, 1hr/axis, IEC60068-2-6

• CE (EMC EN55035 + EN55032)
• FCC Class A (EMI Part 15B)
• LVD (EN62368-1)

System Unit
- Dimension: 382.2mm (W) x 251.4mm (D) x 51.8mm (H)
- Net weight: 2.84 kg/ Unit

Support
- VESA Mount 100mm x 100mm
- Panel Mount (optional kit)
- Open Frame (optional kit)

Package Carton
- Dimension: 481mm x 361mm x 220mm
- Gross weight: 4.5 kg/ (1 unit / per carton)

• Windows 11
• Windows 10, 64bit
• Linux
