XPPC 10-200

10.1” TFT WXGA 16:10 Slim Bezel, Multi Touchscreen Computer Powered by 11th Generation Intel® Core™ Processor

Tính năng chính

  • 10.1” TFT WXGA 16:10 panel
  • 10 points P-Cap multi-touch with slim bezel design
  • IP65 protection on the front
  • Support: VESA/panel/open frame mount
  • 11th Gen Intel® Core™ processors (Tiger Lake UP3)
  • 1 x DDR4 SO-DIMM up to 32G
  • M.2 2280 Key M (PCIe x4) for storage device
  • Onboard M.2 2230 Key E for optional Wi-Fi modules
  • Support power input 12 VDC

Giá sản phẩm: Liên hệ

Lượt xem 40

Panel PC màn hình cảm ứng không quạt 10.1” XPPC 10-200 tích hợp bo mạch chủ công nghiệp dành cho các ứng dụng công nghiệp đa năng. XPPC 10-200 có màn hình cảm ứng LCD đèn nền LED với độ phân giải 1280 x 800 (WXGA) và độ sáng 400 nit. Panel mặt trước sử dụng thiết kế phẳng và tuân thủ tiêu chuẩn IP65 về giá treo bảng, khiến nó phù hợp hoàn hảo cho các ứng dụng công nghiệp. XPPC 10-200 được trang bị bộ xử lý Intel® Core™ thế hệ thứ 11, có thiết kế mỏng và tối ưu hóa trọng lượng. Nó cũng hỗ trợ các lựa chọn lắp đặt đa dạng dựa trên các ứng dụng khác nhau, có thể được áp dụng trong các tình huống khác nhau. Ví dụ: hệ thống tự nhận phòng của khách sạn, cửa hàng bách hóa, bảng chào mừng và quảng cáo.



* Thông tin đặt hàng

Barebone
XPPC10-200-1-i3 (P/N:10W30XPPC30X0)

10.1” WXGA LED P-CAP touchscreen computer, Intel® Core™ i3-1115G4E Processor, w/ touch IC: 81W60

XPPC10-200-1-i5 (P/N:10W30XPPC31X0)
10.1” WXGA LED P-CAP touchscreen computer, Intel® Core™ i5-1145G7E Processor, w/ touch IC: 81W60

Panel mount kit (P/N: 88W30XPPC02X0)

Open frame kit (P/N: 88W30XPPC03X0)



Front I/O Interface
  • 2 x Antenna hole

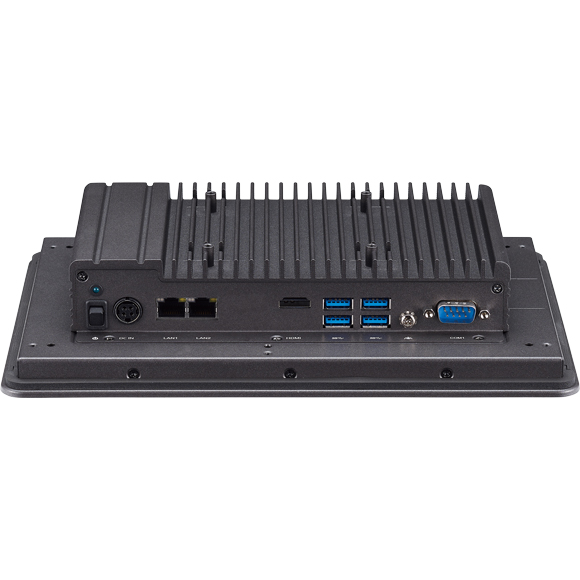

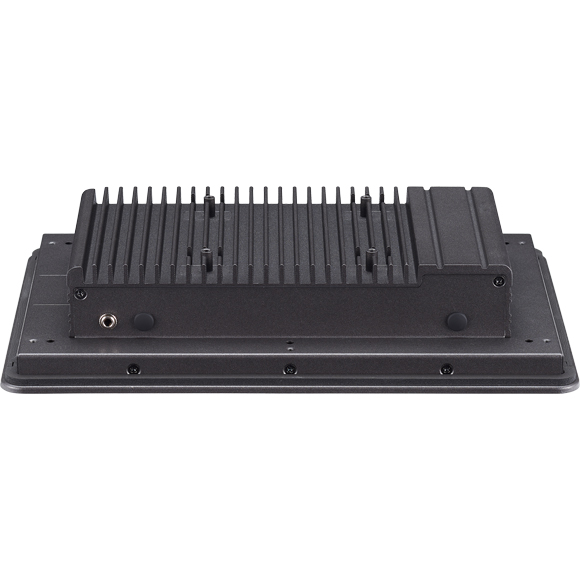

Rear I/O Interface
  • 1 x RS232/422/485
  • 1 x 12V DC Jack
  • 2 x RJ45 Intel® Gigabit LAN port
  • 1 x HDMI 2.04 x USB 3.0
  • 1 x Line outLED for power on/off
  • Power switch

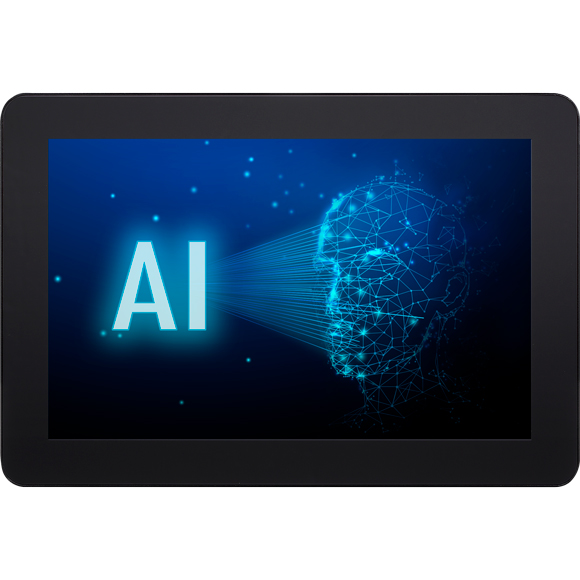

Display
  • LCD size: AUO G-series 10.1”, 16:10
  • Resolution: WXGA 1280 x 800
  • Luminance:

- LCD panel: 400cd/m2
- XPPC PCAP touch: 90% of panel’s luminance after optical bonding

  • Contrast ratio: 800
  • LCD color: 16.7M
  • Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
  • Touch Screen10 points P-Cap (projected capacitive touch)
  • Optical bonding
  • Glass surface treatment: AS (anti-smudge coating for easy cleaning)
Expansion
  • 1 x M.2 2230 Key E, support optional Wi-Fi modules
Power
  • 1 x 60W AC/DC lockable adapter included in accessory
  • Input: 100VAC to 240VAC
  • Output: DC+12VDC
Environment
  • Vibration

- IEC 60068-2-64
- 2Grms @ sine, 5~500Hz, 1hr/axis
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

  • Shock

- IEC 60068-2-27
- 20g peak acceleration (11 msec. duration)

  • Temperature

- Operating temperature with 0.7 m/s air flow: 0°C~50°C
- Storage temperature: -20°C~60°C

  • Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Certifications
  • CE (EN55035 + EN55032)
  • FCC Class A (EMI part 15B)
  • LVD (EN62368-1)
Physical Characteristics
  • Color/materia: black silver/metal sheet
  • Support

- VESA mount 75mm x 75mm
- Panel mount
- Open frame

  • System: 260.3mm x 178.3mm x 50.4mm
  • System weight: 2.0 kg
  • Package: 335mm x 302mm x 160mm
  • Package weight: 3 kg
Hãng NEXCOM

DATASHEETS
XPPC10-200.pdf
[ XPPC10-200.pdf , 0.64MB , Mar.18.2024 ]
