R19IT3S-MRA2

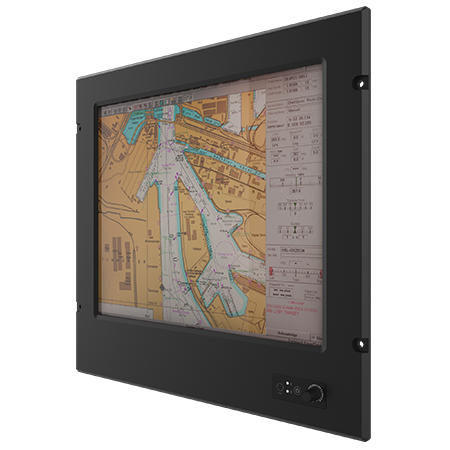

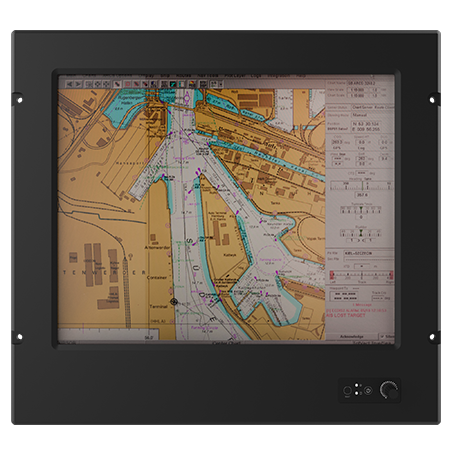

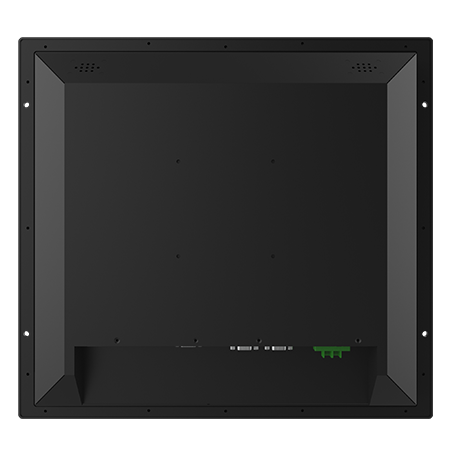

19" Intel® Core™ i7-1165G7 Marine Panel PC

Tính năng chính

  • Intel® Core™ i7-1165G7 processor marine panel PC
  • Dimming knob controls the backlight brightness from nearly 0% to 100%
  • 9~36V DC power input is acceptable
  • Panel (flush) mount IP66 aluminum housing with powder coating design

Giá sản phẩm: Liên hệ

Lượt xem 23

Panel PC hàng hải Winmate được thiết kế và thử nghiệm theo Tiêu chuẩn DNVGL-CG-0339, IEC60945 và IACS-E10 để đáp ứng các yêu cầu quy định quốc tế của ngành hàng hải.



Processor
  • Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)
Memory
  • 1 x SO-DIMM, DDR4 2400 MHz, 4GB

8GB (Optional)
16GB (Optional)
32GB (Optional)

Storage
  • 1 x M.2 M-Key 2280 NVMe SSD, 128GB

256GB (Optional)
512GB (Optional)
1TB (Optional)
2TB (Optional)
4TB (Optional)

Display
  • Size: 19.0 inches
  • Touch / Glass: Resistive
  • Touch Screen: AR Glass (Optional)
  • Resolution: 1280x1024
  • Panel Brightness: 350.0 nits
  • Contrast Ratio: 1000:1
  • View Angles: 85,85,80,80
  • Active Area: 376.32x301.06 mm
Environment
  • Operating Humidity: 5% to 95%
  • Operating Temperature: -15~55°C
  • Shock: 15G,11ms duration
  • Vibration: 0.7g@DNV-CG-0339 (Class A)
  • IP rating: IP66 (Front Side)
I/O Ports
  • USB Port: 2 x USB 3.0
  • Serial Port: 1 x RS232,
  • 4 x RS232 or 4 x Isolation RS422/485 (Optional)
  • LAN: 2 x RJ45-10/100/1000 Mbps
  • Video: 1 x HDMI (Optional)
Physical Characteristics
  • Dimension: 483 x 444 x 77.5 mm
  • Cut out: 429 x 396 mm
  • Weight: 9.6 kg
  • Mounting: VESA mount/Panel mount
  • Enclosure: Metal Housing with Aluminum Bezel
  • Cooling System: Fanless Design
Support OS

*Note:  Only Windows 11 support Wake on touch
Windows 11 IoT Enterprise (64 bit)
Windows 11 Pro 64 bit (Optional)
Windows 10 IoT Enterprise (64 bit)
(Optional)

IP Rating IP66
Size 19"
Hãng WINMATE
Operating System Windows 10, Windows 11

DATASHEETS
R19IT3S-MRA2.pdf
[ R19IT3S-MRA2.pdf , 0.31MB , Sep.29.2025 ]
