• 1 x DDR4 2666 SO-DIMM socket, support up to 16GB

• 1 x 2.5" HDD (SATA 3.0)
• 1 x M.2, support B, B+M key module (2242)

• ATX power on/off switch
• LED indicator: power status, HDD access, RTC battery low
• 6 x Intel® I225-IT 2.5GbE TSN LAN ports; support WoL, teaming and PXE
• 2 x USB3.1 ports (900mA per each)
• 2 x USB2.0 ports (500mA per each)
• 1 x Display port
• 2 x DB9 for COM1 & COM2, support RS232/422/485 with auto flow control, BIOS setting
• 1 x Optional I/F opening for optional function output or module interface use
• 1 x 3-pin DC input, support +9 to 30VDC input

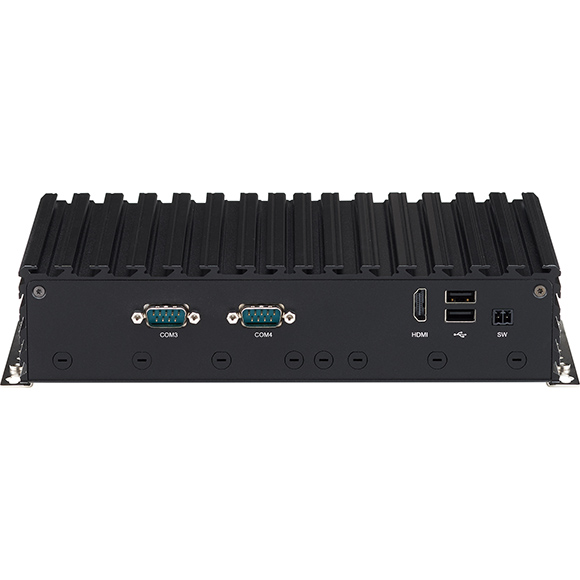

• 2 x USB2.0 ports (500mA per each)
• 1 x 2-pin remote power on/off switch
• 1 x HDMI port
• 2 x DB9 for COM3 & COM4, support RS232 only
• 2 x connector holes for optional Mic-in / Line-out
• 6 x antenna holes for 5G/LTE/Wi-Fi

• Display Option: Dual independent display: HDMI + DP

• 1 x mini-PCIe socket support optional Wi-Fi/4G LTE modules
• 1 x M.2 Key B socket support optional 5G/ 4G LTE/ Storage modules

• Power input: +9 to 30 Vdc

• Operating temperature:
• Ambient with air flow: -20°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 95% at 40°C
• Shock protection:

- HDD: 20G @ wall mount, half sine, 11ms (operation), IEC60068 2-27
- M.2: 50G @ wall mount, half sine, 11ms (operation) , IEC60068 2-27

Vibration protection w/ M.2 & SSD condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

• CE approval

- EN61000-6-2
- EN61000-6-4

• FCC Class A

• Dimensions: 238mm (W) x 145mm (D) x 54mm (H) without wall-mount bracket
• Construction: Aluminum chassis with fanless design

• 4 x GPI and 4 x GPO (5V, TTL type)
• 1 x NANO-SIM holder
• TPM2.0 (optional)
• Mic-in / Line-out (optional)

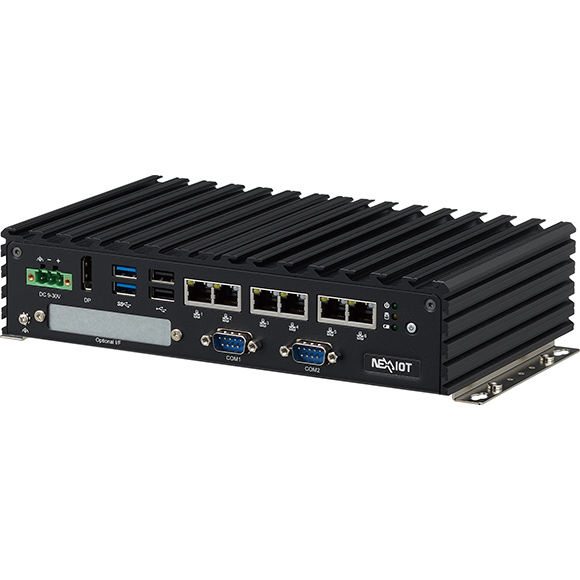

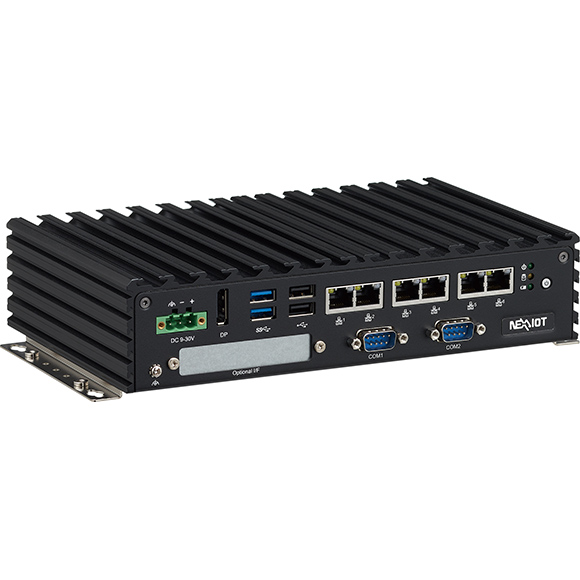

• NISE 4310-E01 (P/N: 10J00431000X0 )

Intel Atom® x6425E Quad Core, 2.0GHz fanless system

24V, 60W AC/DC power adapter w/o power cord
(P/N: 7400060054X00)
