• 2 x DDR3L 1866 SO-DIMM socket, support up to 16GB with un -buffered and non-ECC (pre-installation is necessary for users who has over 8GB memory demand)

• 1 x M.2 slot support optional 2242 B or B+M key
• 1 x 2.5" HDD or SSD

• 1 x ATX power on/off switch
• 1 x 3-pin 24V DC input
• 2 x Intel® I210-AT GbE LAN
• 1 x Dual USB 2.0 ports (500mA/per port)
• 1 x Dual USB 3.0 ports (900mA/per port)
• 2 x DP1.2
• 2 x RS232 COM port
• 1 x RS232/422/485 COM port GPIO

• 2 x Antenna holes

Display Option

• Box PC only, DP1+DP2, two independent displays
• With panel PC, LVDS+ DP1 + DP2, three independent displays

• 1 x Power LED
• 1 x GPIO programmable LED
• 1 x SATA LED

• 1 x Internal mini-PCIe socket support optional Wi-Fi and LTE modules

• AT/ATX power mode (default: ATX power mode)
• Power input: +24V DC
• Power adapter: optional 24V 120W

• Operating temperature:

Ambient with air flow: -5°C to 55° (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 90% (non-condensing)
• Shock protection:

- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection with HDD condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

• CE approval

- EN61000-6-2

- EN61000-6-4

• FCC Class A

• Dimensions: With wall mount bracket: 259 mm(W) x 145 mm (D) x 60 mm (H)
• Without wall mount bracket: 238 mm(W) x 145 mm (D) x 54 mm (H)

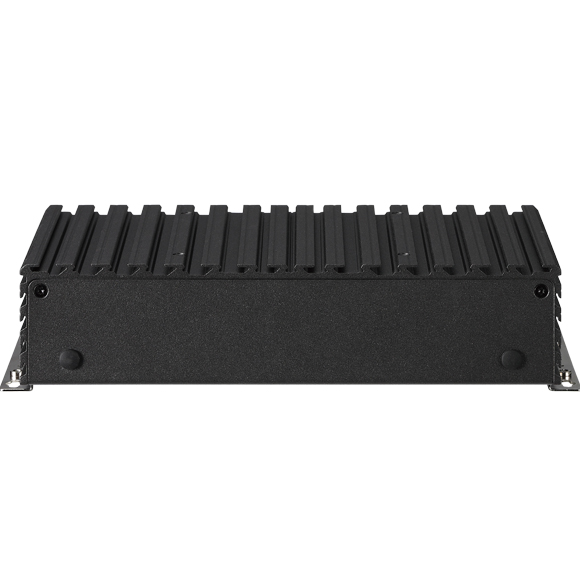

• Construction: Aluminum and metal chassis with fanless design

• NISE 4300-6300U System (P/N: 10J00430001X0)

6th generation Intel® Core™ i5-6300U fanless system

• NISE 4300-6100U System (P/N: 10J00430000X0)

6th generation Intel® Core™ i3-6100U fanless system

24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120023X00)
