• 2 x DDR4 2400 SO-DIMM socket, support up to 32GB with un-buffered and non-ECC

• 1 x mSATA (SATA 3 0)
• 1 x 2.5" HDD (SATA 3.0)

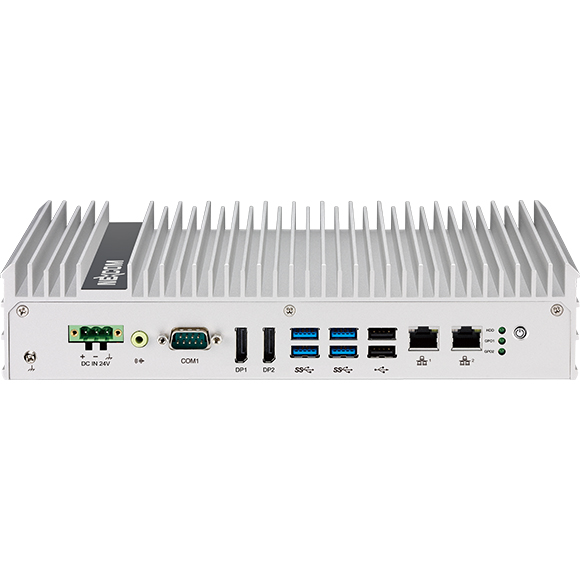

• 1 x ATX power on/off switch
• 2 x DP 1.2
• 1 x Line-out
• 1 x DB9 for COM1

COM1: RS232/422/485 (BIOS selectable)

• 4 x USB 3.0 ports (900mA per each)
• 2 x USB 2.0 ports (500mA per each)
• 24V +/- 20% DC input
• LAN1: Intel® I210-IT GbE LAN ports; support WoL and PXE
• LAN2: 1 x Intel® I219-LM GbE LAN, support Intel® AMT 11

(NISE 4200Q-6442EQ)

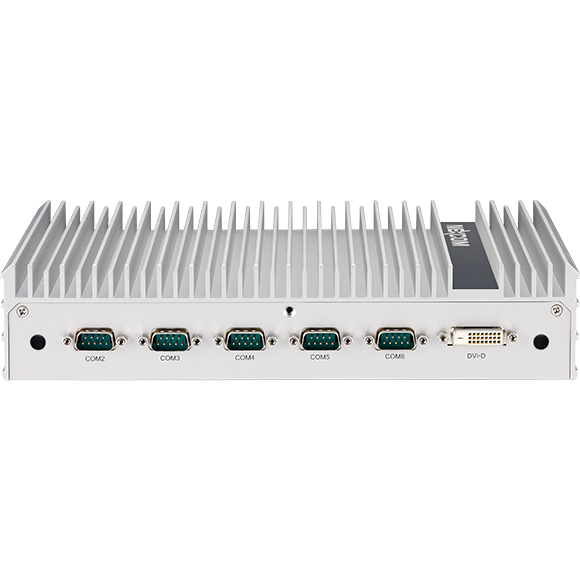

• 5 x DB9 for COM2 & COM3~6

- COM2: RS232/422/485 auto flow control
- COM3: RS232
- COM4: RS232
- COM5: RS232
- COM6: RS2321 x DVI-D port

• Display option

Three independent display

- DP + DP+ DVI-DDual independent display
- DP + DVI-D

• 2 x LAN active LEDs
• 2 x GPO status/COM1/2 TX/RX LEDs
• 1 x HDD access LEDs

• 1 x mSATA (SATA 3 0)
• 1 x 2.5" HDD (SATA 3.0)

• AT/ATX power mode (default: ATX power mode)
• Power input: 24V +/- 20% DC input
• Power adapter: optional AC to DC power adapter (24V DC, 120W)

• Operating temperature:
• Ambient with air flow: -20°C to 70° (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 93% (non-condensing)
• Shock protection:

- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection with HDD condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

• Vibration protection with SSD & M.2 condition:

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

• CE approval-EN55032/EN55024
• FCC Class A

• Dimensions: 269 mm(W) x 157mm (D) x 56mm (H) without wall mount bracket
• Construction: Aluminum chassis with fanless design
• Gross weight: 2.8kg; Net weight: 2.1kg

• 1 x USB 2.0 type A connector
• 1 x USB 2.0 box header
• 16CH GPIO: internal pin header, support 8x GPO and 8x GPI, TTL 5V level
• On-board TPM2.0 (SLB9665) for data encryption purpose

• NISE 4200Q-6442EQ System (P/N: 10J00420002X0)

6th Generation Intel® Core™ i5 fanless system with iAMT supported

• NISE 4200Q-6102E System (P/N: 10J00420004X0)

6th Generation Intel® Core™ i3 fanless system w/o iAMT supported

24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120023X00)
