Máy tính công nghiệp 6 cổng USB

NISE 3910R

12/13/14th Gen Intel® Core™ i3/i5/i7/i9 Fanless System

Tính năng chính

Support 14th/13th/12th Gen Intel® Core™ i3/i5/i7/i9 LGA1700 socket type embedded processor
Intel® Q670E PCH
Support 2 x DDR5 SO-DIMM socket, up to 64GB
Four Intel® i226-IT LAN ports, support WoL and PXE
1 x DP, 1 x HDMI, and 1 x VGA with independent display
1 x M.2 3042/3052 Key B support LTE/5G module
1 x Outside accessible M.2 2242 Key M with PCIe x4, support NvME
6 x USB 3.2 Gen 1, 4 x USB2.0
2 x Isolated RS232/422/485 with auto-flow
1 x mini-PCIe slot, support optional Wi-Fi, 3.5G, 4G LTE
2 x 2.5” SATA HDD/SSD
TPM 2.0 default onboard

Giá sản phẩm: Liên hệ

Integrated with 14th/13th/12th Gen Intel^® Core™ i9/i7/i5/i3 processors, NISE 3910 series is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910 series supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD, and mSATA. NISE 3910 series supports wide range of DC input from +12V to 30V DC input, and can be operated in an extended operating temperature range between -20 to 60 Celsius degree. For extended module availability, NISE 3910 series also designed one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 3052 Key B.

Processor	Support 12/13th Gen. Intel® Core™i3/i5/i7/i9 LGA1700 socket type embedded processors - Intel® Core™ i9-13900TE, 8P+16E, 1.0GHz, 36M Cache - Intel® Core™ i7-13700TE, 8P+8E, 1.1GHz, 30M Cache - Intel® Core™ i5-13500TE, 6P+8E, 1.3GHz, 24M Cache - Intel® Core™ i3-13100TE, 4P+4E, 2.4GHz, 12M Cache - Intel® Core™ i9-12900TE, 8P+8E, 1.1GHz, 30M Cache - Intel® Core™ i7-12700TE, 8P+4E, 1.4GHz, 25M Cache - Intel® Core™ i5-12500TE, 6P+6E, 1.9GHz, 18M Cache - Intel® Core™ i3-12100TE, 4P+4E, 2.1GHz, 12M Cache
Memory	2 x DDR4 2400/2666 SO-DIMM socket, support up to 32GB
Storage	1 x Internal M.2 socket (Key M SATA 3.0, PCIe x4) 2 x 2.5” HDD bracket trays

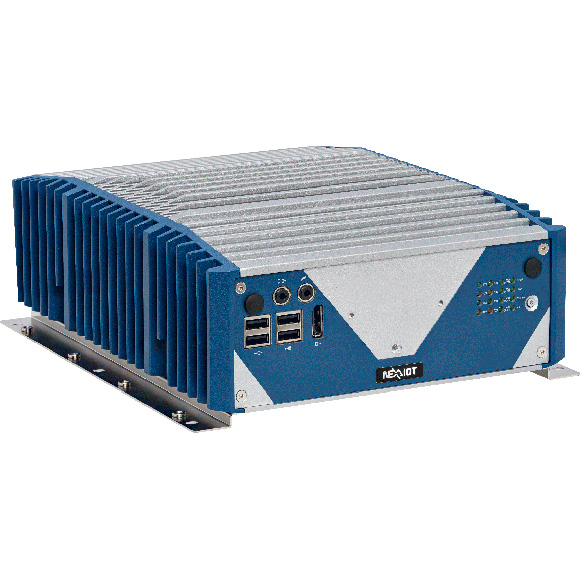

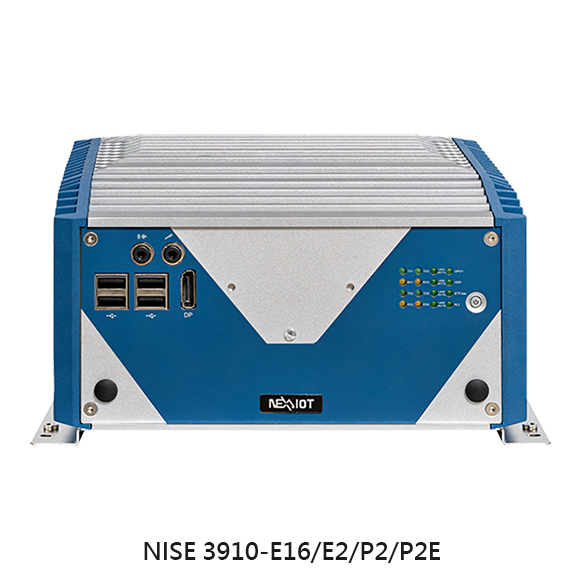

Front I/O Interface	1 x ATX power on/off switch LED indicators: - 4 x LAN active - 1 x GPO status - 4 x COM Tx/Rx - 1 x HDD/SSD status - 1 x Battery low - 1 x M.21 x DP2 x Antenna holes 1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA) 1 x SIM card holder 4 x USB 2.0 Type A (500mA/port) 1 x Line out and 1 x mic-in

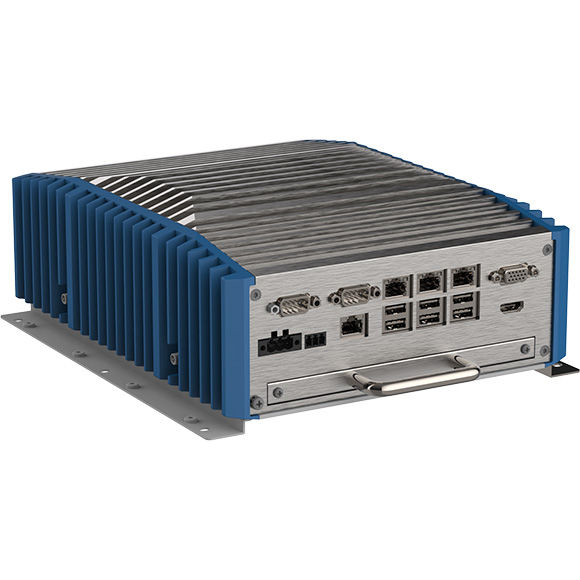

Rear I/O Interface	1 x HDMI 1 x VGA port 6 x USB 3.2 Gen1 Type A (900mA per each) 4 x Intel® I226-IT 2.5GbE LAN ports; support WoL, teaming & PXE 2 x Isolated RS232/422/485 1 x 3-pin DC input, support +12 to 30VDC input 1 x 3-pin remote power on/off switch
Display	Display option: Three independent display, HDMI, DP, VGA
Expansion	1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
Power	AT/ATX power mode (Default ATX mode) Power input: +12 to 30 VDC
Environment	Operating temperature: Ambient with air flow: -20°C to 60°C(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°C Relative humidity: 10% to 95%(non-condensing) Shock protection: - HDD:20G@wallmount,halfsine,11ms(operation),IEC600682-27 - SSD:50G@wallmount,halfsine,11ms(operation),IEC600682-27 Vibration protection w/ HDD condition: - Random:0.5Grms@5~500Hz,IEC60068-2-64 - Sinusoidal:0.5Grms@5~500Hz,IEC60068-2-6 Vibration protection w/ SSD condition: - Random:2Grms@5~500Hz,IEC60068-2-64 - Sinusoidal:2Grms@5~500Hz,IEC60068-2-6
Certifications	CE FCC Class A UL
Physical Characteristics	NISE 3910E/R 215mm (W) x 272mm (D) x 102mm (H) without wall-mount bracket (8.46” x 10.7” x 4.02”) Aluminum chassis with fanless design
Internal I/O	8 x GPI and 8 x GPO (5V, TTL type) 1 x M.2 2242/3042/3052 Key B (PCIe x2, SATA, USB 3.0) 1 x mini-PCIe (PCIe x1, USB 3.0, SATA)
Ordering Information	NISE 3900R system (P/N: 10J00390004X0) 8th/9th generation Intel® Core™ i7/i5/i3 fanless system with two external 2.5" HDDs bracket to support RAID 0/1 24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120023X00)
Hãng	NEXCOM
CPU Support	Intel® Core™ i9/i7/i5/i3 Gen.12/13th
Operating System	Windows 10 IoT Enterprise, Linux Kernal 4.9

DATASHEETS

NISE3910R.pdf

[ NISE3910R.pdf , 0.52MB , Mar.21.2024 ]
