• DDR5 4800 SO-DIMM socket, support up to 64GB

• 1 x 2.5" HDD/SSD (Additional 1 x 2.5” tray upon request)
• 1 x M.2 2242 Key M, 1 x M.2 2242 Key B
• 1 x mSATA

• 1 x ATX power on/off switch

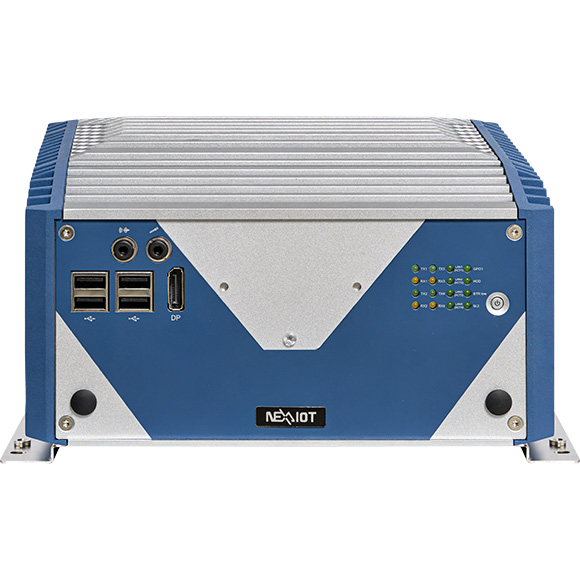

• LED indicators:

- 4 x LAN active
- 1 x GPO status
- 4 x COM Tx/Rx
- 1 x HDD/SSD status
- 1 x Battery low
- 1 x M.2

1 x DP

• 2 x Antenna holes
• 1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA)
• 1 x SIM card holder

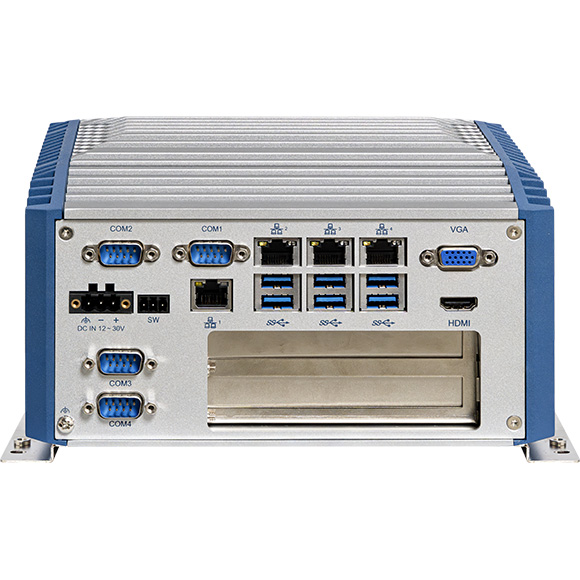

• 4 x USB 2.0 Type A (500mA/port)
• 1 x Line out and 1 x mic-in

• 1 x HDMI
• 1 x VGA port
• 6 x USB 3.2 Gen1 Type A (900mA per each)
• 4 x Intel® I226-IT 2.5GbE LAN ports; support WoL, teaming & PXE
• 2 x Isolated RS232/422/485
• 2 x RS232
• 1 x 3-pin DC input, support +12 to 30VDC input
• 1 x 3-pin remote power on/off switch

• Display Option: Three independent display: HDMI, DP, VGA

• 1 x PCIe x4 + 1 x PCI (NISE 3910P2E) up to 10W/slot, 169mm & 240mm Max. length

• AT/ATX power mode (Default ATX mode)
• Power input: +12 to 30 VDC

• Operating temperature: Ambient with air flow: -20°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 95% (non-condensing)
• Shock protection:

- HDD: 20G@wallmount, half sine, 11ms(operation), IEC600682-27
- SSD: 50G@wallmount, half sine, 11ms(operation), IEC600682-27

• Vibration protection w/ HDD condition:

- Random: 0.5Grms@5~500Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms@5~500Hz, IEC60068-2-6

• Vibration protection w/ SSD condition:

- Random: 2Grms@5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6

• CE
• FCC Class A
• UL

• 215mm (W) x 272mm (D) x 123mm (H) without wall-mount bracket (8.46” x 10.7” x 4.8”)
• Aluminum chassis with fanless design

• 8 x GPI and 8 x GPO (5V, TTL type)
• 1 x M.2 Key B 2242/3042/3052 (PCIe x2, SATA, USB3.0)
• 1 x mini-PCIe (PCIe x1, USB3.0, SATA)

• NISE 3910P2E (P/N: 10J00391004X0)

Intel® 12/13th Gen Core™ i9/i7/i5/i3 fanless system with one PCI & one PCIe x4 expansions
