NISE 3910E16

12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 Fanless System

Tính năng chính

Support 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor (LGA1700)
Intel® Q670E
2 x DDR5 4800 SO-DIMM, up to 64GB
4 x 2.5GbE RJ45 port, Intel® I226-IT, supports WoL and PXE
1 x DP, 1 x HDMI, and 1 x VGA with independent display
1 x M.2 Key B 3042/3052, supports LTE/5G module
1 x M.2 Key M 2242 with PCIe x4, supports NVMe, outside accessible
6 x USB 3.2 Gen 1, 4 x USB 2.0
2 x Isolated RS232/422/485 with auto-flow and 2 x RS232
1 x mini-PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE
1 x 2.5” SATA 3.0 HDD/SSD, an additional 2.5" tray available upon request
TPM 2.0

Giá sản phẩm: Liên hệ

Integrated with 14th/13th/12th Gen Intel^® Core™ i9/i7/i5/i3 processors, NISE 3910 series is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910 series supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD, and mSATA. NISE 3910 series supports wide range of DC input from +12V to 30V DC input, and can be operated in an extended operating temperature range between -20 to 60 Celsius degree. For extended module availability, NISE 3910 series also designed one internal Mini PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 Key B 3052.

Processor	14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor (LGA1700) - Intel® Core™ i7-14700T , 8P+12E, 1.3GHz, 33M Cache - Intel® Core™ i5-14500T, 6P+8E, 1.7GHz, 24M Cache - Intel® Core™ i3-14100T, 4P+4E, 2.7GHz, 12M Cache - Intel® Core™ i9 processor 13900TE, 24 cores, 1.0GHz - Intel® Core™ i9 processor 12900TE, 16 cores, 1.1GHz - Intel® Core™ i7 processor 13700TE, 16 cores, 1.1GHz - Intel® Core™ i7 processor 12700TE, 12 cores, 1.4GHz - Intel® Core™ i5 processor 13500TE, 14 cores, 1.3GHz - Intel® Core™ i5 processor 12500TE, 12 cores, 1.9GHz - Intel® Core™ i3 processor 13100TE, 8 cores, 2.4GHz - Intel® Core™ i3 processor 12100TE, 8 cores, 2.1GHz
Memory	DDR5 4800 SO-DIMM socket, support up to 64GB
Storage	1 x 2.5" HDD/SSD (Additional 1 x 2.5” tray upon request) 1 x M.2 2242 Key M, 1 x M.2 2242 Key B 1 x mSATA

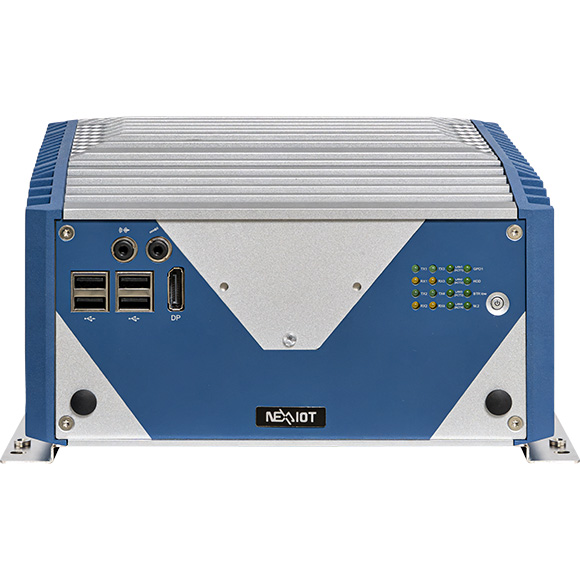

Front I/O Interface	1 x ATX power on/off switch LED indicators: - 4 x LAN active - 1 x GPO status - 4 x COM Tx/Rx - 1 x HDD/SSD status - 1 x Battery low - 1 x M.2 1 x DP 2 x Antenna holes 1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA) 1 x SIM card holder 4 x USB 2.0 Type A (500mA/port) 1 x Line out and 1 x mic-in

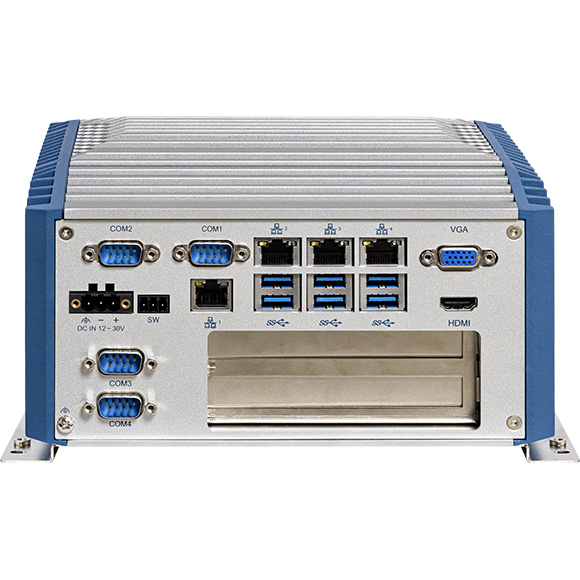

Rear I/O Interface	1 x HDMI 1 x VGA port 6 x USB 3.2 Gen1 Type A (900mA per each) 4 x Intel® I226-IT 2.5GbE LAN ports; support WoL, teaming & PXE 2 x Isolated RS232/422/485 2 x RS232 1 x 3-pin DC input, support +12 to 30VDC input 1 x 3-pin remote power on/off switch
Display	Three independent display: HDMI, DP, VGA
Expansion	1 x PCIe x16 (NISE 3910E16) up to 75W, 240mm Max. length
Power	AT/ATX power mode (Default ATX mode) Power input: +12 to 30 VDC
Environment	Operating temperature: Ambient with air flow: -20°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°C Relative humidity: 10% to 95% (non-condensing) Shock protection: - HDD: 20G@wallmount, half sine, 11ms(operation), IEC600682-27 - SSD: 50G@wallmount, half sine, 11ms(operation), IEC600682-27 Vibration protection w/ HDD condition: - Random: 0.5Grms@5~500Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms@5~500Hz, IEC60068-2-6 Vibration protection w/ SSD condition: - Random: 2Grms@5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Certifications	CE FCC Class A UL
Physical Characteristics	215mm (W) x 272mm (D) x 123mm (H) without wall-mount bracket (8.46” x 10.7” x 4.8”) Aluminum chassis with fanless design
Internal I/O	8 x GPI and 8 x GPO (5V, TTL type) 1 x M.2 Key B 2242/3042/3052 (PCIe x2, SATA, USB3.0) 1 x mini-PCIe (PCIe x1, USB3.0, SATA)
Ordering Information	NISE 3910E16 (P/N: 10J00391002X0) Intel® 12/13th Gen Core™ i9/i7/i5/i3 fanless system with one PCIe x16 expansion
Hãng	NEXCOM
CPU Support	Intel® Core™ i9/i7/i5/i3 Gen.12/13th
Operating System	Windows 11, Windows 10 IoT Enterprise
