• 2 x DDR4 2400/2666 SO-DIMM socket, support up to 32GB

• 1 x External M.2 socket (Key M SATA 3.0, PCIe x4)
• 1 x 2.5" HDD or SSD (SATA 3.0) driver bay

• 1 x ATX power on/off switch
• 1 x DP
• 1 x Line-out and 1 x Mic-in
• 2 x Antenna holes
• 1 x External M.2 socket Key M
• 1 x SIM card holder
• 4 x USB 2.0 ports (500mA per each)

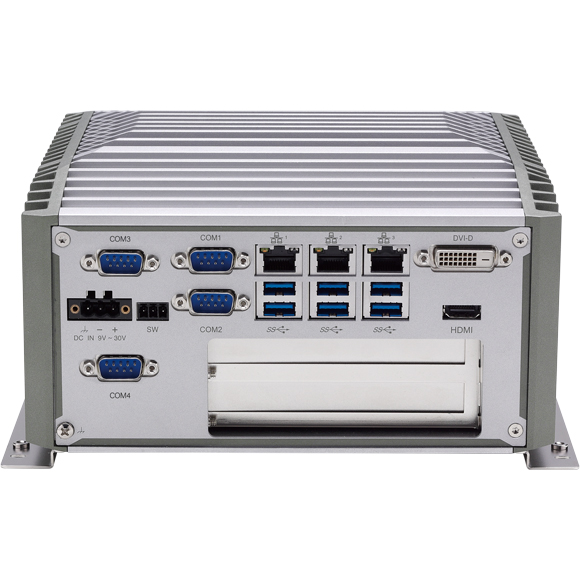

• 4 x DB9 for COM1 to COM4

- COM1/2: RS232/422/485 auto flow control
- COM3/4: RS232

• 6 x USB 3.1 Gen 1 ports (900mA per port)
• 1 x DVI-D port
• 1 x HDMI port
• 2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE
• 1 x Intel® I219-LM GbE LAN port
• 1 x 3-pin remote power on/off switch+9V to 30V DC input

• Three independent display

- HDMI+DP+ DVI-DDual independent display
- HDMI+DP
- HDMI+DVI-D
- DP+DVI-D

• 3 x LAN active LEDs
• 2 x GPO status/COM1/2 TX/RX LEDs
• 1 x HDD access LEDs
• 1 x Battery low
• 1 x M.2

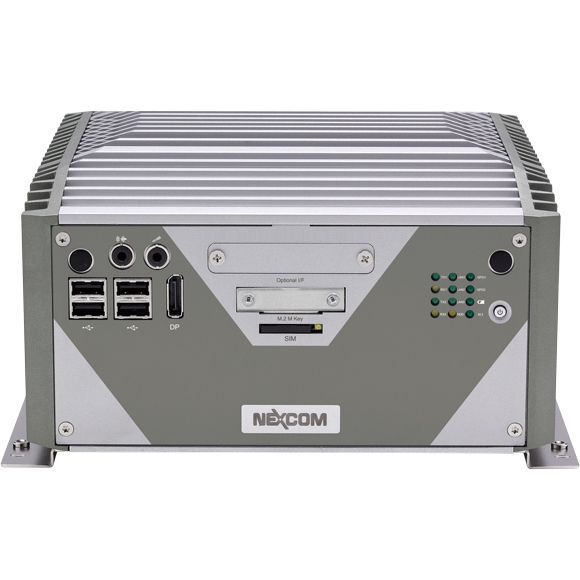

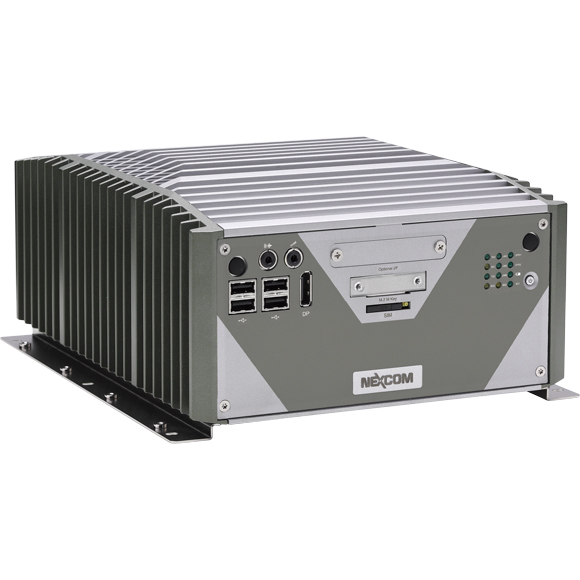

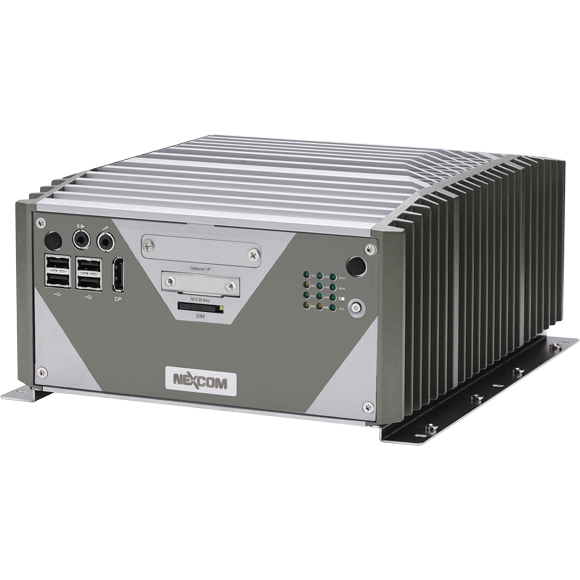

• NISE 3900P2 System (P/N: 10J00390002X0)

8th & 9th generation Intel® Core™ i7/i5/i3 fanless system with two PCI expansions

• AT/ATX power mode (default: ATX power mode)
• Power input: +9 to +30V DC
• Power adapter: optional AC to DC power adapter (24V DC, 120W)

• Operating temperature:

- Ambient with air flow: -5°C to 55°
- (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 95% (non-condensing)
• Shock protection:

- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

• Vibration protection with HDD condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

• Vibration protection with SSD & M.2 condition:

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

• CE approval- EN61000-6-2- EN61000-6-4
• FCC Class A
• UKCA

• Dimensions: 215 mm(W) x 272mm (D) x 115mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")
• Construction: Aluminum and metal chassis with fanless design
• Weight Information: Gross weight: 6.84kg; Net weight: 5.3kg

• 8CH GPIO: internal pin header, support 4 x GPO and 4 x GPI, TTL 5V level
• On-board TPM2.0 (SLB9665) for data encryption purpose
• 1 x Internal M.2 Key B support optional LTE

• NISE 3900P2 System (P/N: 10J00390002X0)

8th & 9th generation Intel® Core™ i7/i5/i3 fanless system with two PCI expansions

24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120023X00)
