Máy tính công nghiệp Core™ i7, i5

Máy tính công nghiệp NISE 3600CP2

6/7/8/9th Gen Intel® Core™ i7/i5/i3 Fanless System with Expansion

Tính năng chính

Support 6/7/8/9th Gen Intel® Core™ i7/i5/i3 socket type processor
Intel® H310C PCH
Support 1 x 2.5" SATA HDD/SSD
1 x VGA, 1 x HDMI and 2 x display port with independent display support
Dual Intel® GbE LAN ports; support WoL, teaming and PXE
4 x USB 3.0, 2 x USB 2.0, 5 x RS232 and 1 x RS232/422/485
2 x Internal mini-PCIe socket support optional Wi-Fi or 4G module
1 x External M.2 3042 Key B & 1 x mSATA
1 x SIM card socket
Support +12V to 30VDC input; support
Two PCI or PCIe x4 expansion
Support Windows 7 & Windows 10 64-bit

Giá sản phẩm: Liên hệ

Integrated with 6/7/8/9th Gen Intel^® Core™ i7/i5/i3 and H310C PCH platform, NISE series evolve to a new generation called NISE 3600C series. It is not only sustained its good reputation on quality and user friendly features but also innovated its mechanical design.

With computing and graphic performance enhancement, NISE 3600C series supports 2 x display port, 1 x VGA port and 1 x HDMI port to fulfill the graphic intensive or computing oriented applications, including auto optical Inspection, machinery automation, ePolice infotainment, surveillance or image processing equipment and healthcare industry. In addition, NISE 3600C series offers 4 x USB 3.0 and 2 x USB 2.0, greater expansion capability with 2 x Intel^® GbE LAN ports, 6 x COM ports, and 1 x M.2 3042 Key B socket for front accessible availability. NISE 3600C series is sufficient to support wide range of DC input from +12 to 30V and ATX power; it is a new generation to meet most application requirements.

Processor	Support 6/7/8/9th Gen Intel® Core™ i7/i5/i3 socket type processor
Memory	2 x DDR4 2133/2400/2666 SO-DIMM socket, support up to 32GB

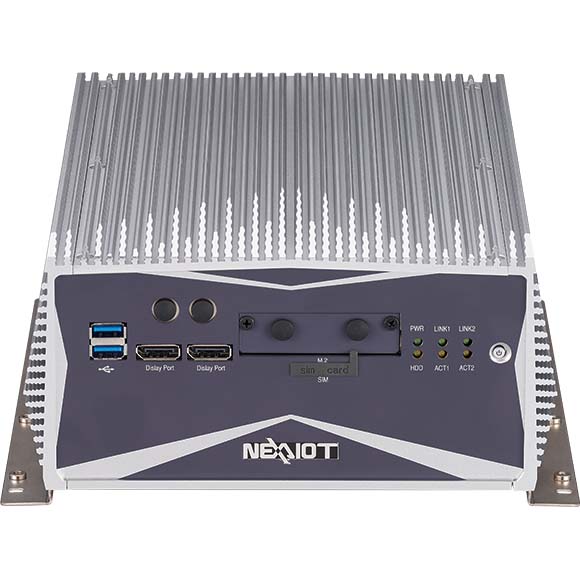

Front I/O Interface	ATX power on/off switch HDD access/power status LEDs 2 x USB 3.0 ports 2 x Display port (can be converted to DVI-D or HDMI via active cables) 4 x Antenna holes 1 x External M.2 3042 Key B & 2x mSATA (via 2x mini-PCIe socket) 1 x SIM card socket (for mini card 2)

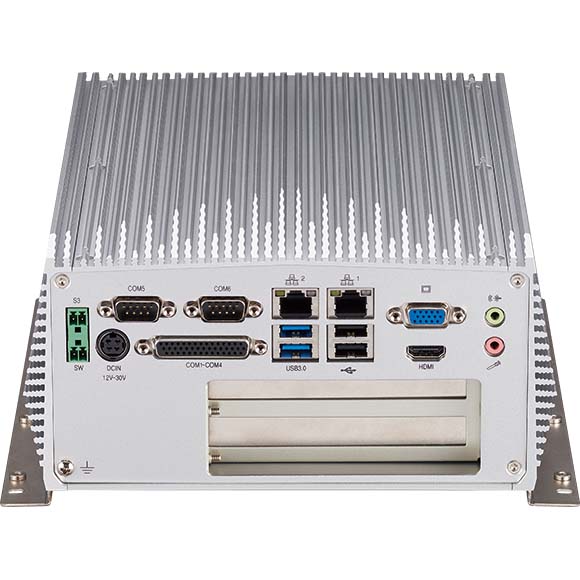

Rear I/O Interface	1 x DB44 serial port for 4 x COM ports - COM1/3/4 (RS232) - COM2 (RS232/422/485) 2 x DB9 for COM5 (RS232) & COM6 (RS232) 2 x USB 3.0 ports (900mA per port) 2 x USB 2.0 ports (500mA per port) 1 x VGA port 1 x HDMI port 2 x Intel® I210-AT GbE LAN ports; support WoL, teaming and PXE 1 x MIC-in and 1 x Line-out 1 x 2-pin remote power on/off switch +12V to 30V DC input
Display	Dual independent display - VGA and HDMI - Display port and VGA - Display port and HDMI - Display port and display port
Expansion	2 x Internal mini-PCIe socket support optional Wi-Fi/4G LTE NISE 3600CP2: two PCI expansion slot - Add-on card length: 169mm max. and one 240mm max. - Power consumption: 10W/slot max
Power	AT/ATX power mode (default: ATX power mode) Power input: +12 to +30V DC Power adapter: optional AC to DC power adapter (24V DC, 120W)
Ordering Information	NISE 3600CP2 (P/N: 10J03600C02XE) 6/7/8/9th Gen Intel® Core™ i7/i5/i3 fanless system with two PCI expansion
Hãng	NEXCOM
CPU Support	Intel® Core™ i3/i5/i7
Operating System	Windows 7, Windows 10 64-bit
