• 2 x DDR3L 1066/1333 SO-DIMM socket, support up to 8GB

• 1 x CFast card socket (SATA 2.0)
• 1 x 2.5" HDD space (SATA 2.0)
• 1 x mSATA from miniPCI socket if SATA HDD is not installed

Dual independent display
- HDMI and DVI-I
- HDMI and VGA (via DVI-I connector)

• Power input: +9Vdc to +30Vdc
•  1 x optional 24V, 60W power adapter

• Operating Temperature: Ambient with airflow: -20°C to 70°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -30°C to 85°C
• Relative humidity: 10% to 95% (non-condensing)
• Shock Protection:

HDD: 20G, half sine, 11ms, IEC60068-2-27
CFast: 50G, half sine, 11ms, IEC60068-2-27

• Vibration Protection w/ HDD Condition:

Random: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-64
Sinusoidal: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-6

Vibration protection w/ CFast & SSD condition:
Random: 2Grms @ 5 ~ 500Hz, IEC60068-2-64
Sinusoidal: 2Grms @ 5 ~ 500Hz, IEC60068-2-6

• CE
• FCC Class A

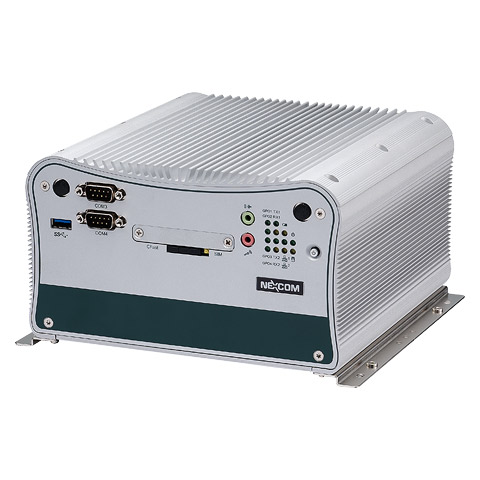

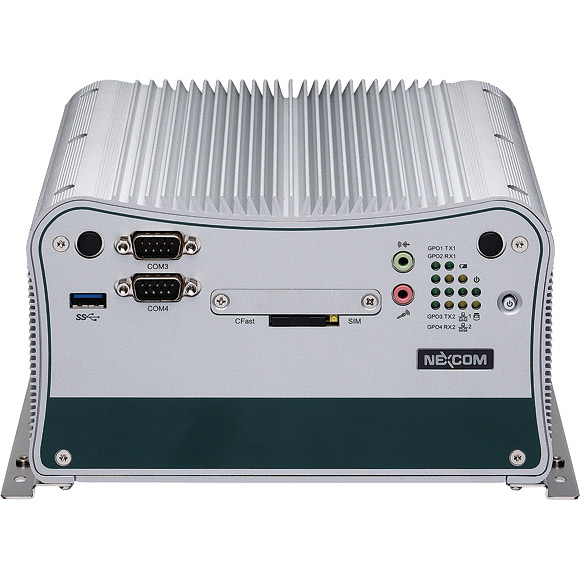

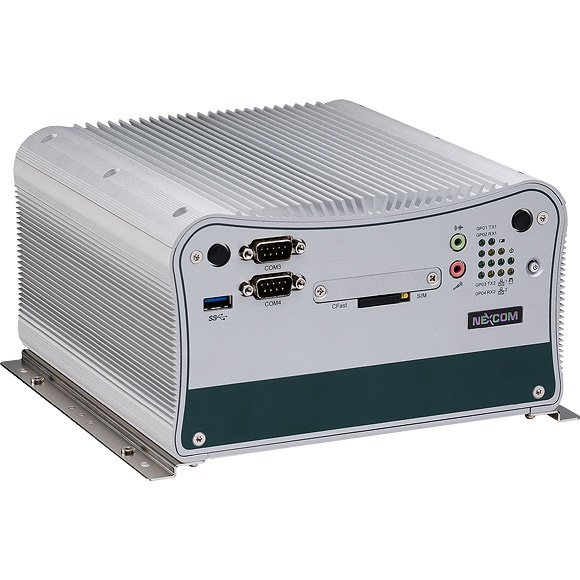

Front I/O Interface

• ATX power on/off switch
• 1 x Power Status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs
• 2 x DB9 RS232 for COM3 & COM4
• 1 x External CFast socket
• 1 x SIM card holder
• 1 x USB 3.0 (900mA Max.)
• 1 x Mic-in & 1 x Line-out
• 2 x antenna holes for optional Wi-Fi/3.5G antenna

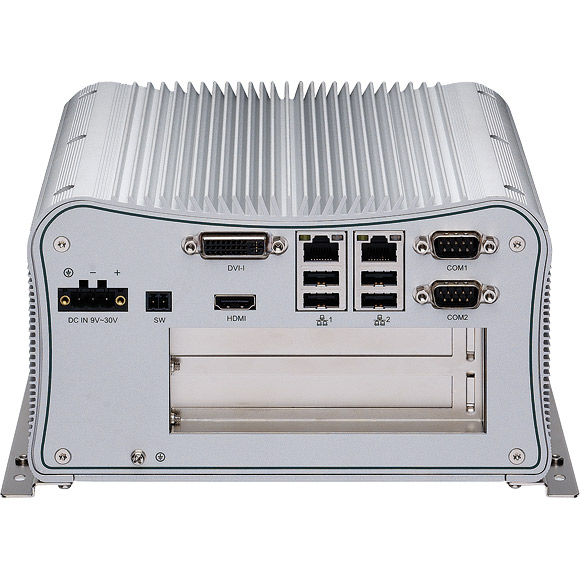

I/O Interface - Rear

• 4 x USB 2.0
• 1 x DVI-I display output
• 1 x HDMI display output
• 1 x remote power on/off switch
• 2 x Intel® I210IT GbE LAN ports, support wake on LAN, Teaming and PXE
• 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control

- Jumper-free setting on RS232/422/485

• 1 x 3-pin DC input, support +9 to 30VDC input

I/O Interface - Internal

• 4 x GPI and 4 GPO (5V, TTL Type)

• Dimensions: 195mm (W) x 200mm (D) x 111mm (H) without wall-mount bracket
• Construction: Aluminum and metal chassis with fanless design

• Windows 8, 32-bit/64-bit
• Windows Embedded Standard 8, 32-bit/64-bit
• Windows 7, 32-bit/64-bit
• Windows Embedded Standard 7, 32-bit/64-bit
• Linux Kernel version 3.8.0
