NISE 2410/2410E (by request)

Intel® Atom™ Processor E3827 Dual Core Fanless System

Tính năng chính

Onboard Intel® Atom™ processor E3827 Dual Core, 1.75GHz
Dual independent display from DVI-I and HDMI
2 x Intel® I210IT GbE LAN ports support WoL, Teaming and PXE
4 x USB 2.0 & 1 x USB 3.0
2 x Mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G
2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control
Support -20 ~ 70-degree Celsius extended operating temperature
Support 9-30V DC input

Giá sản phẩm: Liên hệ

Powered by Intel® Atom™ Bay Trail Dual Core processor E3827, 1.75GHz. Driven by the latest Dual Core Intel® Atom™ processor, NISE 2410/2410E can provide excellent computing power and is more power-efficient than the platforms based on the previous generation Intel® Atom™ product family.

NISE 2410/2410E supports up to 8G DDR3L memory and has several options on storage devices like C-Fast, HDD, SSD or mSATA. The NISE 2410/2410E comes with 1 x HDMI, 1 x DVI-I, 2 x Gigabit LAN ports, 2x COM ports with RS232/422/485, and 5x USB ports with USB 3.0. NISE 2410/2410E supports 9 ~ 30V DC input, and can be operated in an extended operating temperature range from -20 to 70 degrees Celsius. This Fanless system supports two Mini-PCIe modules, which can be an excellent platform for IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and factory automation applications with optional fieldbus module. Its expansion versatility makes NISE 2400 a perfect platform for factory automation and M2M intelligent computing applications.

Processor	Onboard Intel® Atom™ E3800 processor family - E3827 Dual Core, 1.75GHz for NISE 2410 - E3845 Quadl Core, 1.91GHz for NISE 2410E Support Intel® Atom™ E3800 processor family from single core E3815, dual core E3825/E3826/E3827 and quad core E3845 with differenceS KUs
Memory	2 x DDR3L 1066/1333 SO-DIMM socket, support up to 8GB
Storage	1 x CFast card socket (SATA 2.0) 1 x 2.5" HDD space (SATA 2.0) 1 x mSATA from miniPCI socket if SATA HDD is not installed
Display	Dual independent display - HDMI and DVI-I - HDMI and VGA (via DVI-I connector)
Expansion	2 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G NISE 2410: One PCI Expansion - Add-on card length: 176mm max. - Power consumption: 10W/ slot max. NISE 2410E: One PCIe x4 Expansion (only support PCIex1 speed & signal) - Add-on card length: 176mm max. - Power consumption: 10W/ slot max.
Power	Power input: +9Vdc to +30Vdc 1 x optional 24V, 60W power adapter
Environment	Operating Temperature: Ambient with airflow: -20°C to 70°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -30°C to 85°C Relative humidity: 10% to 95% (non-condensing) Shock Protection: HDD: 20G, half sine, 11ms, IEC60068-2-27 CFast: 50G, half sine, 11ms, IEC60068-2-27 Vibration Protection w/ HDD Condition: Random: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-64 Sinusoidal: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-6 Vibration protection w/ CFast & SSD condition: Random: 2Grms @ 5 ~ 500Hz, IEC60068-2-64 Sinusoidal: 2Grms @ 5 ~ 500Hz, IEC60068-2-6
Certifications	CE FCC Class A

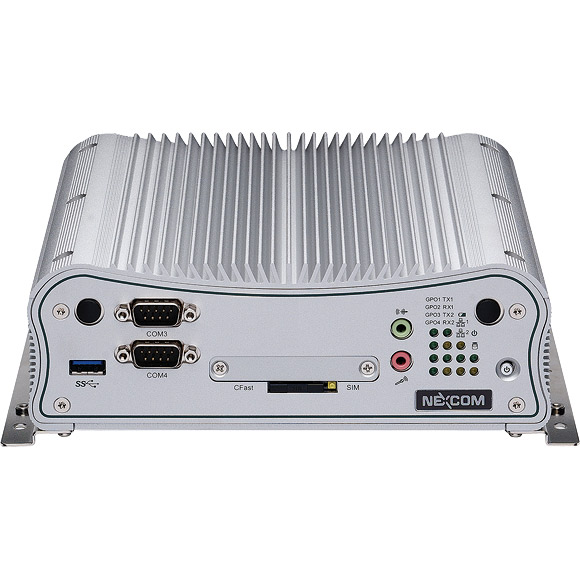

I/O Ports	Front I/O Interface ATX power on/off switch 1 x Power Status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs 2 x DB9 RS232 for COM3 & COM4 1 x External CFast socket 1 x SIM card holder 1 x USB 3.0 (900mA per each) 1 x Mic-in & 1 x Line-out 2 x antenna holes for optional Wi-Fi/3.5G antenna I/O Interface - Rear 4 x USB 2.0 1 x DVI-I display output 1 x HDMI display output 1 x remote power on/off switch 2 x Intel® I210IT GbE LAN ports, support wake on LAN, Teaming and PXE 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/485 1 x 3-pin DC input, support +9 to 30VDC input I/O Interface - Internal 4 x GPI and 4 GPO (5V, TTL Type)
Physical Characteristics	Dimensions195mm (W) x 200mm (D) x 90mm (H) without wall-mount bracket ConstructionAluminum and metal chassis with fanless design
Support OS	Windows 8, 32-bit/64-bit Windows Embedded Standard 8, 32-bit/64-bit Windows 7, 32-bit/64-bit Windows Embedded Standard 7, 32-bit/64-bit Linux Kernel version 3.8.0
Hãng	NEXCOM
CPU Support	Intel® Atom™ Processor E3827 Dual Core
Operating System	Windows 7, Windows 8Linux

DATASHEETS

NISE2410_2410E.pdf

[ NISE2410_2410E.pdf , 0.63MB , Mar.15.2025 ]
