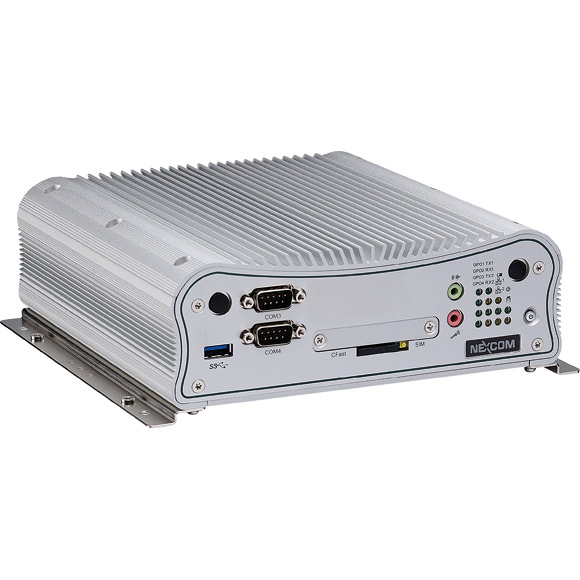

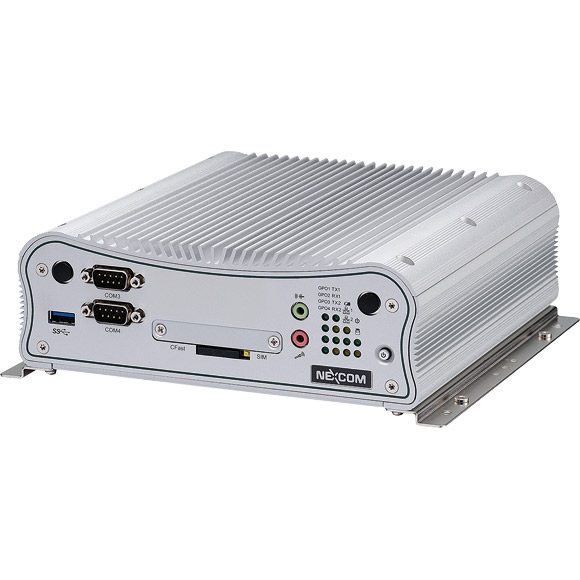

NISE 2400- J1900
Intel® Celeron® Processor J1900 Quad Core Fanless System
Tính năng chính
- Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHz
- Dual independent display from DVI-I and HDMI
- 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
- 4 x USB 2.0 & 1 x USB 3.0
- 2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control
- 2 x mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G/Fieldbus modules
- Support -5 to 55-degree Celus extended operating temperature
- Support 9-30V DC input
Giá sản phẩm: Liên hệ
Powered by Intel® Celeron® Processor J1900 Quad Core, 2.0GHz. Driven by the latest Quad-Core Intel® Celeron® Processor, NIE2400-J1900 can provide excellent computing power and is more power-efficient than the platforms based on the previous generation Intel® Celeron® product family.
NISE2400-J900 supports up to 8G DDR3L memory and has several options on storage devices like CFast, HDD, SSD or mSATA . The NISE2400-J900 comes with 1 x HDMI, 1 x DVI-I, 2 x GbE LAN ports, 2x COM port with RS232/422/485, and 5x USB ports including one USB 3.0. NISE2400-J900 supports 9~30V DC input, and can be operated in an extended operating temperature range from -5 to 55 degrees Celsius. This Fanless system supports two mini-PCIe modules, which can be an excellent platform for IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and factory automation applications with optional fieldbus module. Its expansion versatility makes NISE2400-J900 a perfect platform for factory automation and M2M intelligent computing applications.
| Processor |
|
| Memory |
|
| Storage |
|
| Display |
- HDMI and DVI-I |
| Expansion |
|
| Power |
|
| Environment |
HDD: 20G, half sine, 11ms, IEC60068-2-27
Random: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-64
Random: 2Grms @ 5 ~ 500Hz, IEC60068-2-64 |
| Certifications |
|
| I/O Ports |

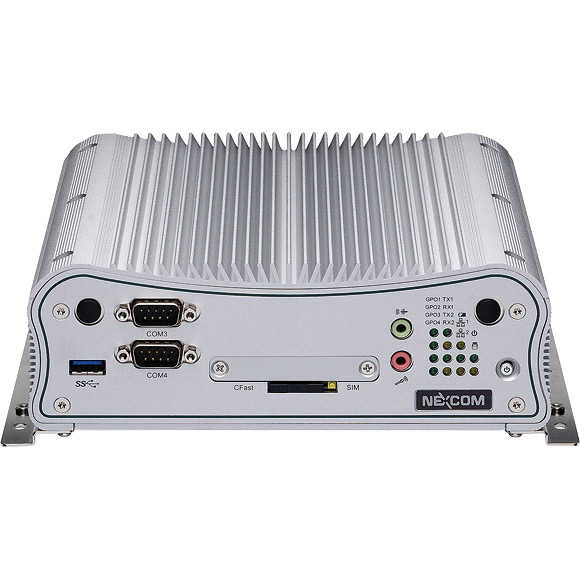

ATX power on/off switch 1 x Power Status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs 2 x DB9 RS232 for COM3 & COM4 1 x External CFast socket 1 x SIM card holder 1 x USB 3.0 (900mA per each) 1 x Mic-in & 1 x Line-out 2 x antenna holes for optional Wi-Fi/3.5G antenna

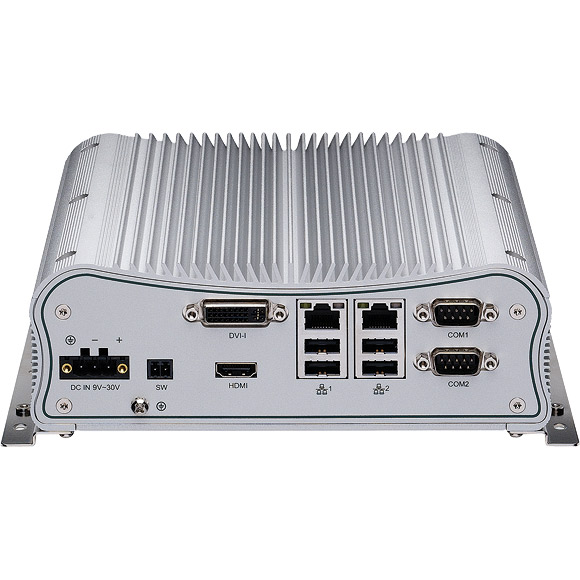

4 x USB 2.0 1 x DVI-I display output 1 x HDMI display output 1 x remote power on/off switch 2 x Intel® I210IT GbE LAN ports, support wake on LAN, Teaming and PXE 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/485 1 x 3-pin DC input, support +9 to 30VDC input
4 x GPI and 4 GPO (5V, TTL Type) |
| Physical Characteristics |
|
| Support OS |
|
| Hãng | NEXCOM |
| CPU Support | Intel® Atom™ Processor E3827 Dual Core |
| Operating System | Windows 7, Windows 8Linux |
