• 1 x SO-DIMM socket, non-ECC, up to 32GB

• 1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1,SATA 3.0)
• 1 x Mini PCIe slot, supports mSATA

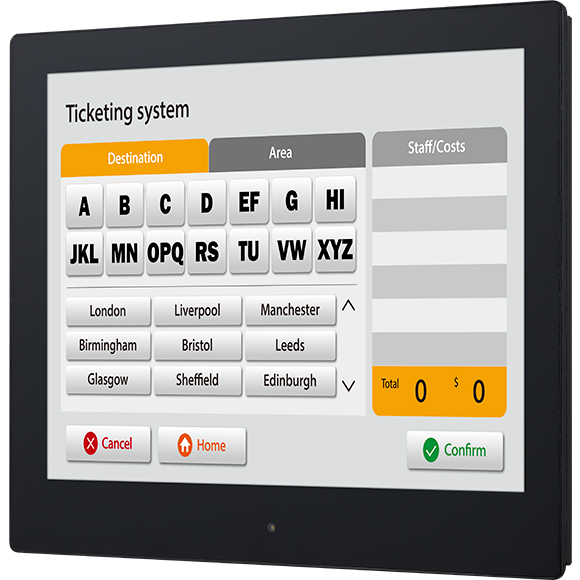

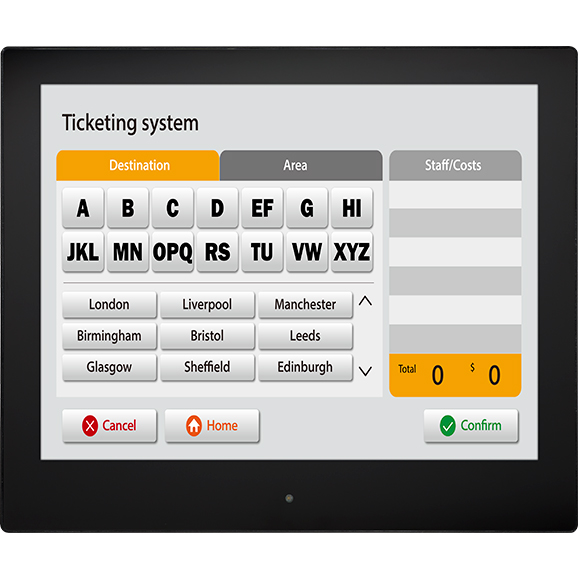

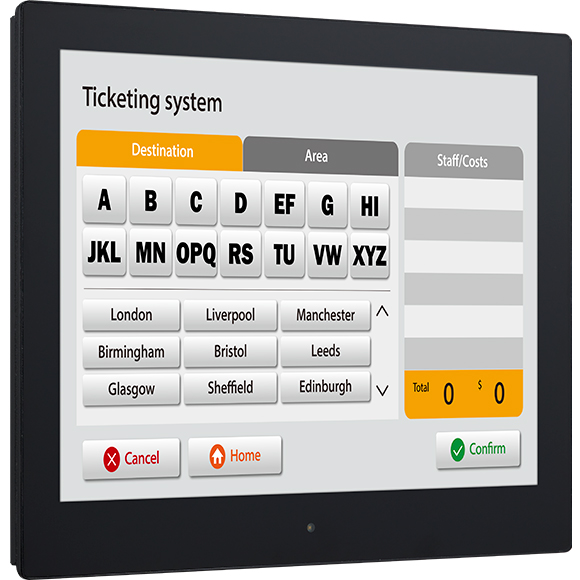

• LCD size: 15”, 4:3
• Resolution: XGA 1024 x 768
• Luminance

- LCD panel: 1800 cd/m2
- XPPC PCAP touch: 80% of the panel’s luminance after optical bonding

• Contrast ratio: 2500LCD color: 16.7M
• Viewing angle: 88 (U), 88 (D), 88 (L), 88 (R)
• 10 points P-Cap (Projected Capacitive Touch)
• Optical bonding with anti-UV & IR
• Glass Surface Treatment: AF & AG

• 1 x Mini PCIe slot

- Support 4G/Wi-Fi + BT/mSATA

• Nominal Voltage: DC 12V to 24V Input

Operating temperature:
- Ambient with air flow: -20°C~60°C
- Storage temperature: -20°C~80°C

Relative humidity: 10%~90% (non-condensing)

Shock protection:
- 20G peak acceleration, 11ms according to IEC 60068-2-27

Vibration protection:
- Random: 2Grms@5~500Hz, IEC 60068-2-64
- Sinusoidal: 2G@5~500Hz, IEC 60068-2-6

• CE (EN 55035 + EN 55032)
• FCC Class A (EMI Part 15B)
• LVD (EN 62368-1)

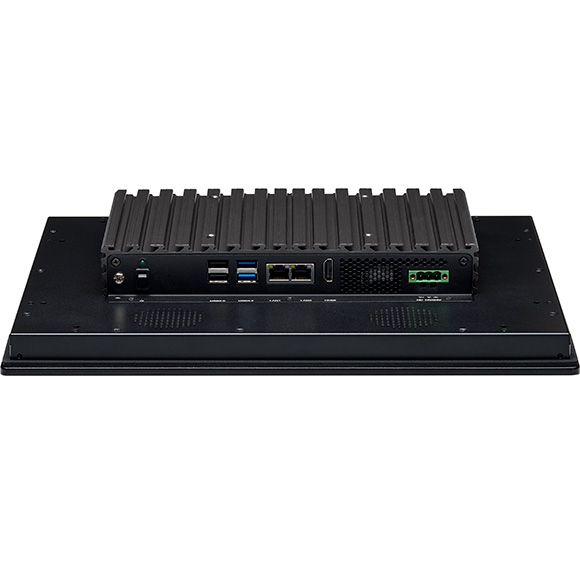

I/O Interface - Rear

• 2 x 1GbE RJ45 port, Intel® i210AT
• 1 x HDMI® 2.0b, up to 3840 x 2160@60Hz
• 2 x USB 3.2 5Gbps, Type-A
• 2 x USB 2.0
• 1 x Power button
• 1 x 3-pin Phoenix connector for DC 12 to 24V Input

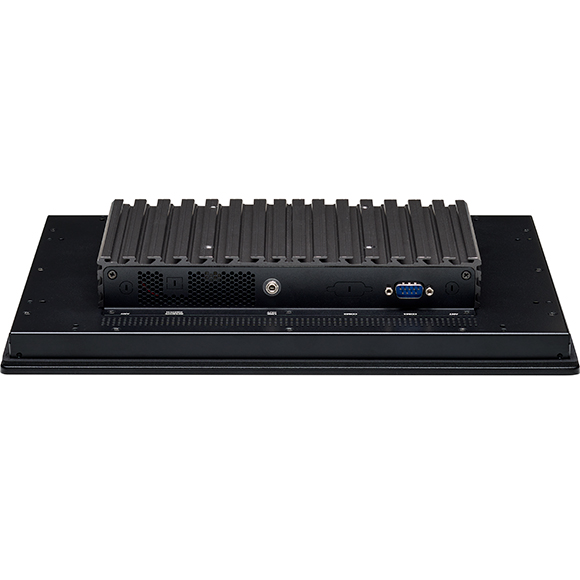

I/O Interface - Front

• 2 x Antenna hole
• 1 x COM Port (DB9), supports RS-232/422/485
• 1 x Line out

I/O Interface - Internal

• 1 x 4-pin header for USB 2.0
• 1 x 4-pin header for Speaker out
• 1 x 10-pin header for RS-232
• 1 x 3-pin header for MIC in
• 1 x 3-pin header for PWR LED
• 1 x 10-pin header for 4-in & 4-out GPIO

Color / Material: Black metal sheet

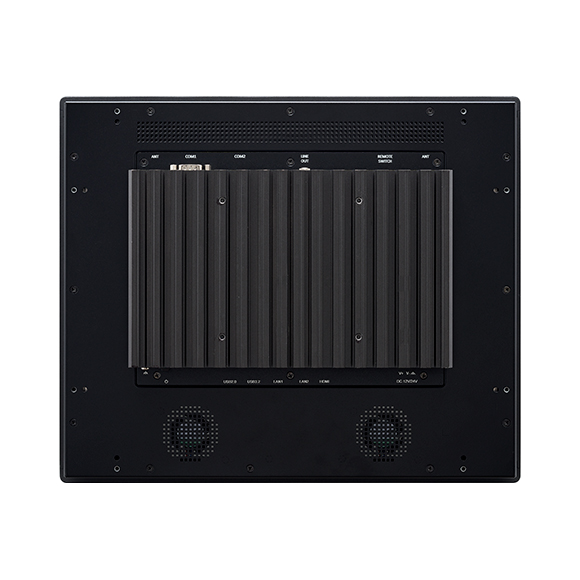

Support VESA Mount 100mm x 100mm

System unit:
- Dimension: 351.9mm(W) x 295.75 mm(D) x 58.15mm(H)
- Net Weight: 4.2kg

Package Carton:
- Dimension: 498mm(W) x 478mm(D) x 181mm(H)
- Gross weight: 5.8kg (1 unit / Carton)

• Windows 11
• Windows 10 64-bit
• Linux
