• 1 x DDR4 SO-DIMM, non-ECC, up to 32GB

• 1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1, SATA 3.0)

Panel

• LCD size: 12.1”, 4:3
• Resolution: XGA 1024x768
• Luminance

- LCD panel: 1300cd/m2
- XPPC P-CAP touch: 80% of panel’s luminance after optical bonding

• Contrast ratio: 1000
• LCD colour: 16.7MViewing angle: 88 (U), 88 (D), 88 (L), 88 (R)
• Touch Screen: 10-point P-CAP (Projected Capacitive Touch)
• Optical bonding with anti-UV & IR
• Glass surface treatment: AF & AG

• 1 x Mini PCIe, supports 4G/Wi-Fi + BT/mSATA

• Nominal voltage: DC 12V~24V input

• Ambient with air flow: -20°C~60°C
• Storage temperature: -20°C~80°C
• Relative humidity: 10%~90% (non-condensing)
• Shock protection: 20G peak acceleration, 11ms according to IEC 60068-2-27
• Vibration protection

- Random: 2Grms@5Hz~500Hz, IEC 60068-2-64
- Sinusoidal: 2G@5Hz~500Hz, IEC 60068-2-6

• CE (EN 55035 + EN 55032)
• FCC Class A (EMI Part 15B)
• LVD (EN 62368-1)

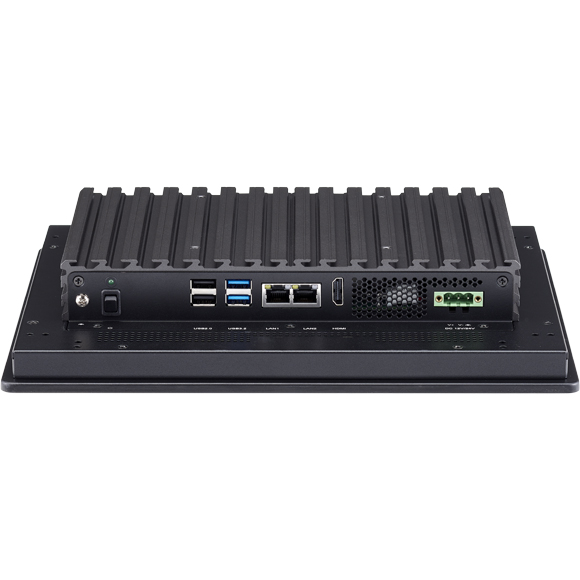

I/O Interface-Rear

• 2 x 1GbE RJ45 port, Intel® i210AT
• 1 x HDMI® 2.0b, up to 3840x2160@60Hz
• 2 x USB 3.2 5Gbps, Type-A
• 2 x USB 2.0
• 1 x Power button
• 1 x 3-pin Phoenix connector for DC 12V~24V input

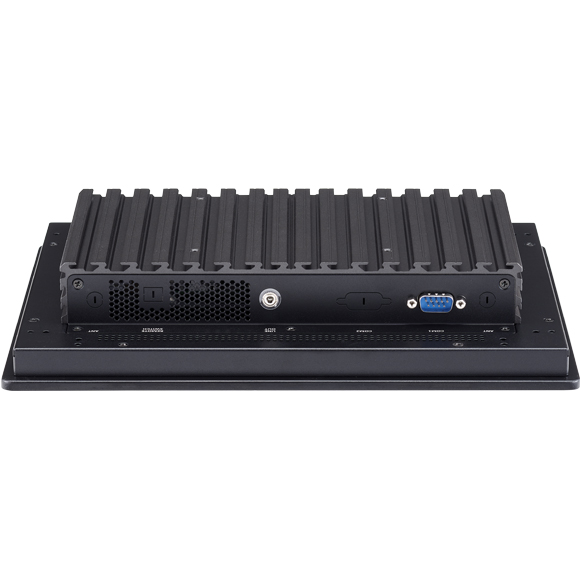

I/O Interface-Front

• 2 x Antenna hole
• 1 x COM port (DB9), supports RS-232/422/485
• 1 x Line out

I/O Interface-Internal

• 1 x 4-pin header for USB 2.0
• 1 x 4-pin header for speaker out
• 1 x 10-pin header for RS-232
• 1 x 3-pin header for Mic in
• 1 x 3-pin header for PWR LED
• 1 x 10-pin header for 4-in & 4-out GPIO

Mechanical & Dimension

• Color/Material: black metal sheet
• Support VESA mount 100mm x 100mm
• Dimensions: 293.56mm (W) x 245.46mm (D) x 56.65mm (H)
• Weight: 3.08kg

Package Information

• Dimensions: 438mm (W) x 346mm (D) x 227mm (H)
• Gross weight: 4.01kg (1 unit per carton)

• Windows 11
• Windows 10, 64-bit
• Linux
