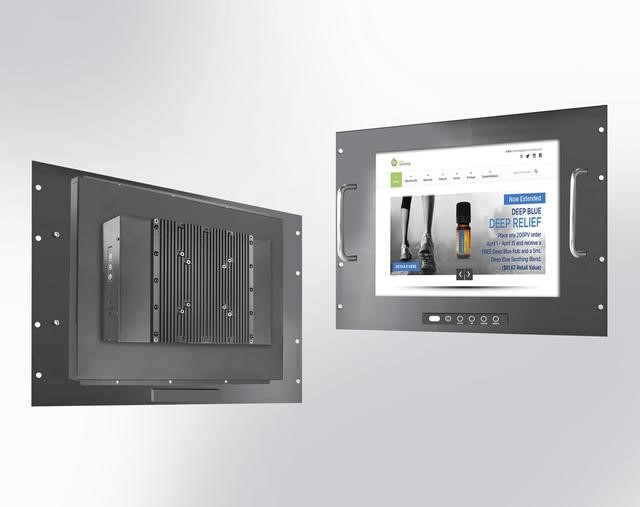

PRM1505F1-UN30L3-CB0M0A

Fanless Panel PC Rack Mount, 15" LCD monitor, 1600 x 1200, LED 300 nits,Intel®Celeron J6412

Tính năng chính

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Intel®Celeron J6412 processor
Intel® Elkhart Lake
Support DDR4-2666/2933/3200MHz, Max. Capacity 32GB
I/O: 2 x HDMI, 3 x USB 3.0, 3 x USB 2.0, 2 x LAN, 1 x Line-out
Security support TPM 2.0 onboard IC
Standard IP66/IP67 models I/O: 1 x HDMI, 2 x USB, 1 x LAN.

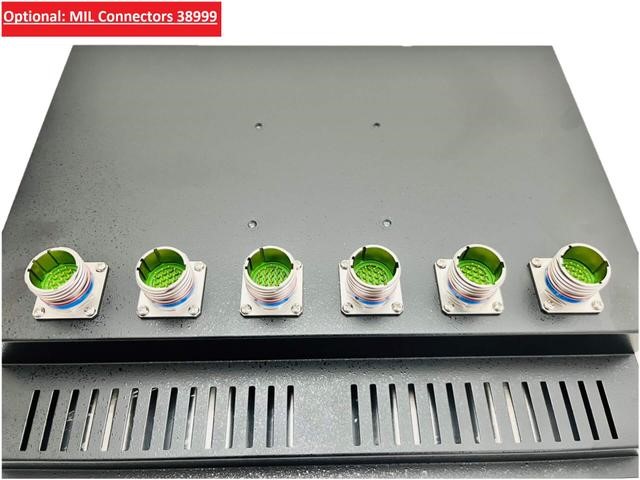

Optional connector type: M12 Metal connectors, MIL-38999, MIL-26482 series connectors

Giá sản phẩm: Liên hệ

Panel PC Rack Mount, 15" PRM1505F1-UN30L3-CB0M0A thiết kế không quạt, trang bị bộ xử lý Intel®Celeron J6412, lý tưởng sử dụng cho các ứng dụng thương mại và công nghiệp.

Options

Touch	Video Input	Enhanced Panel	Power	Others
Resistive Touch	AV-IN	High Brightness Panel	24V DC-IN	Motion Sensor
Projected Capacitive Touch	AV_Looping	Sunlight Readable	9~36V DC-IN	Light Sensor
Infrared Touch	HDMI / DP	Wide Viewing Angle	48V, 72V DC-IN	VR-knob Dimming
Protected Glass	HD-SDI	Wide Temperature	90V, 125V DC-IN	RS232 Remote On/Off
Optical Bonding		UV Film	110V, 220V DC-IN	Military Connector: MIL 38999
		Anti-Vandal		Metal Connector: M12 / M16
				Stainless 316 Enclosure

Display	Cell Type: TFT LCD Glass Surface: Black Anti-Glare, low reflection coating Aspect Ratio: 4 : 3 Size: 15 Active Area: 304.8(H) x 228.6(V) mm Pixel Pitch: 0.1905(H) x 0.1905(V) mm Native Resolution: 1600x1200 Colors: 16.2 M Bright.(typ): 300 Contrast: 1000 : 1 Response Time≤ 20 ms Viewing Angle: 160 / 160 Light Source: LED backlight, Long life, 35,000 hrs (typ)
Expansion	1 * M.2 Key-M(NVMe SSD 2280), 1 * M.2 Key-B Slot
Power	Power Input: Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz Power Consumption: (Operation / Power Saving) undefined
Environment	-30°C ~ 70°C (-22°F ~ 158°F) , 10% ~ 90% (no condensation)
I/O Ports	2xHDMI 3xUSB3.0 3xUSB2.0 2xLAN, 1xLin-out
Hãng

DATASHEETS

PRM1505F1-UN30L3-CB0M0A.pdf

[ PRM1505F1-UN30L3-CB0M0A.pdf , 0.12MB , Mar.20.2024 ]
