• 1 x DDR4 3200 SO-DIMM, non-ECC, unbuffered, up to 16GB

• 1 x M.2 Key M 2242 SSD (PCIe 3.0 x1)
• 2 x 2.5” SSD tray

• DC 12V input+12V, 60W AC/DC power adapter in carton

• Temperature:

-Ambient with air flow: -5°C~50°C
-Storage temperature: -20°C~80°C

• Relative Humidity: 95% (non-condensing)
• Shock protection: 50G peak acceleration, 11ms according to IEC 60068-2-27
• Vibration protection:

-Random: 2Grms@5Hz~500Hz, IEC 60068-2-64
-Sinusoidal: 2G@5Hz~500Hz, IEC 60068-2-6

• CE (EN 55035 + EN 55032)
• FCC Class A (EMI Part 15B)
• LVD (EN 62368-1)

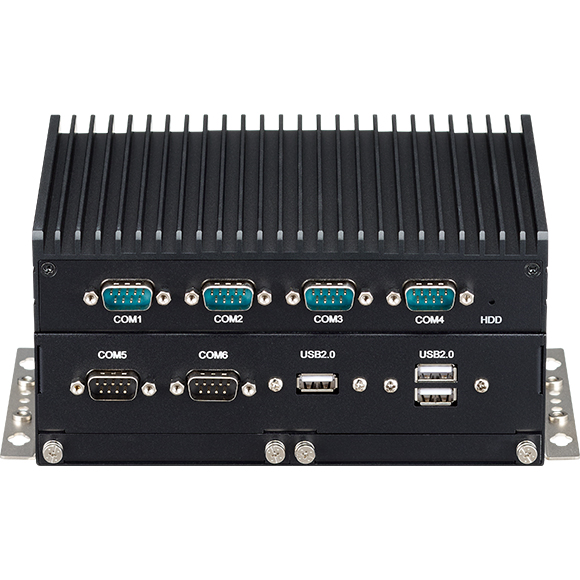

I/O Interface Front

• 2 x Antenna hole
• 2 x COM port (DB9), supports RS-232/422/485
• 4 x COM port (DB9), supports RS-232
• 1 x Storage active LED
• 3 x USB 2.0, Type-AI/O

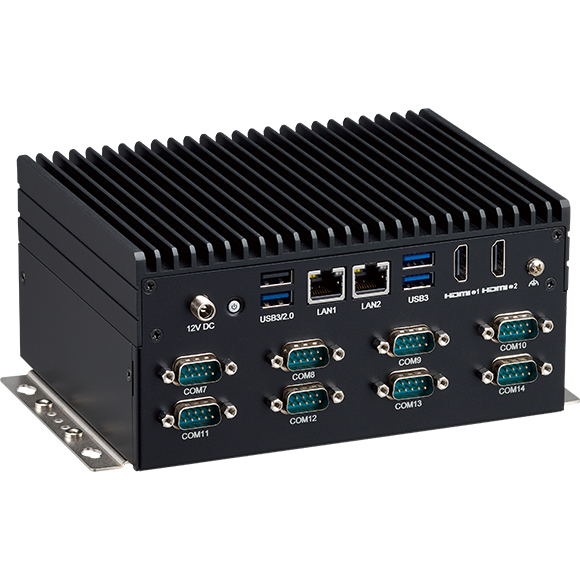

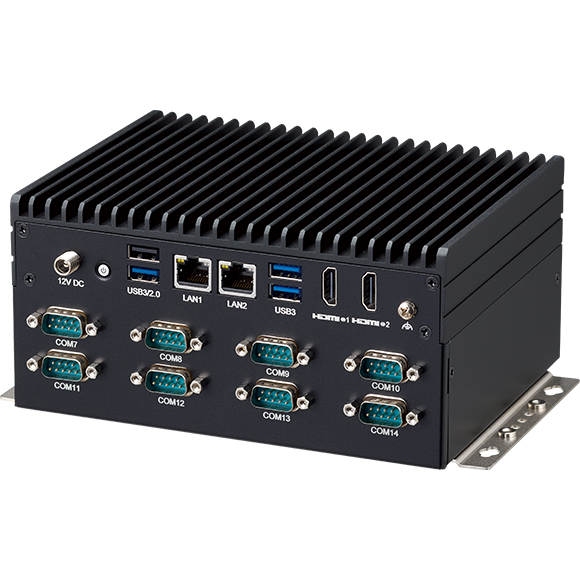

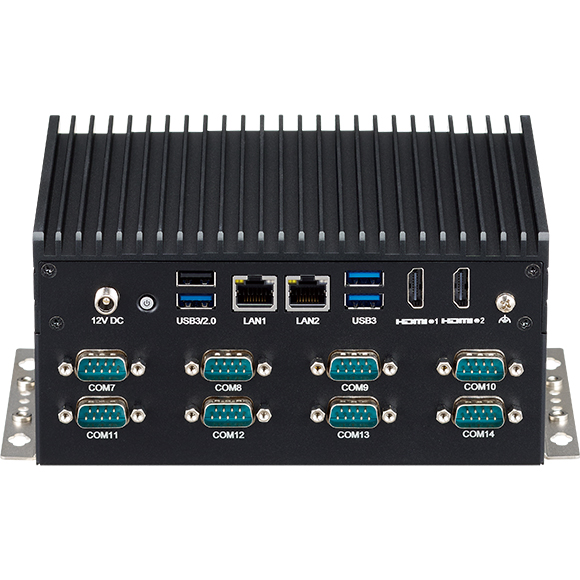

Interface Rear

• 2 x 2.5GbE RJ45 LAN port
• 2 x HDMI® 1.4, up to 3840x2160@30Hz
• 3 x USB 3.2, 10 Gbps, Type-A
• 1 x USB 2.0, Type-A
• 1 x Power button with LED
• 1 x DC input jack with lock
• 8 x COM port (DB9), supports RS-232

I/O Interface Internal

• 1 x 4-pin header supports speaker out amplifier 2W/4Ω
• 1 x 9-pin header supports mic in and line out
• 1 x 10-pin header for GPIO, 4 x GPI, 4 x GPO

Mechanical

• Dimensions: 203mm (W) x 137mm (D) x 95mm (H) (w/ bracket)
• Net weight: 1.65kg

Package Information

• Dimensions: 282mm (W) x 273mm (D) x 188mm (H)
• Gross weight: 2.53kg (1 unit per carton)

• Windows 11
• Windows 10, 64-bit
• Linux
