• 1 x 204-pin SO-DIMM socket, support DDR3L 1600MHz, non-ECC, unbuffered memory up to 8GB

• 1 x M.2 2242 Key M

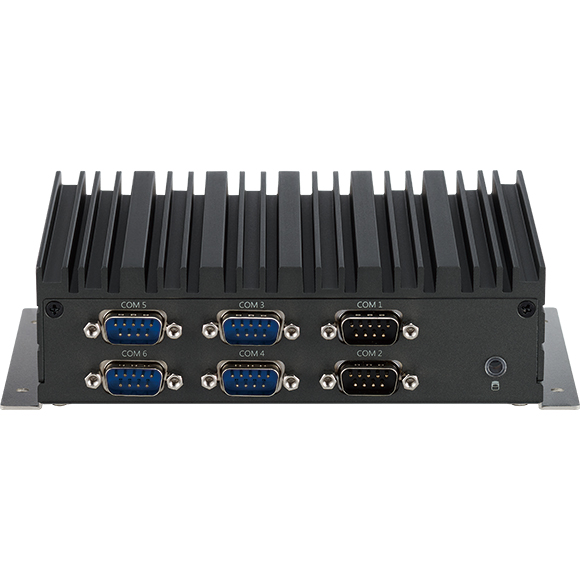

• 6 x COM ports

- COM1: RS232/422/485
- COM2: RS232
- COM3-6: RS485

• 1 x Storage active LED

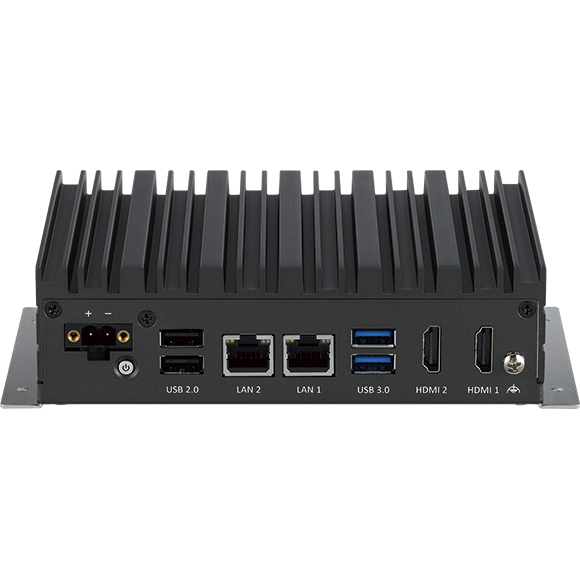

• 2 x RJ45 with LEDs for Gigabit LAN
• 2 x HDMI 1.4b, resolution 3840 x 2160 30Hz
• 2 x USB 3.0
• 2 x USB 2.0
• 1 x Power button with LED
• 1 x 2-pin phoenix contact 9-24V DC-input

• Power input: 9~24V DC

• Operating temperature: -5°C to 50°C ambient with 0.7 m/s air flow (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Relative Humidity: 10% to 95% (non-condensing)
• Storage temperature: -20°C to 80°C
• Shock protection w/ flash storage: 50G, half sine, 11ms, IEC60068-2-27
• Vibration protection w/ flash storage:

- Random: 2Grms@5~500Hz, IEC60068-2-64
- Sinusoidal: 2G@5~500Hz, IEC60068-2-6

• CE (EN55035 + EN55032)
• FCC Class A (EMI part 15B)
• LVD (EN62368-1)
• UKCA

Mechanical & Dimension

• Aluminum and metal chassis with fanless design
• 155mm (W) x 121mm (D) x 44mm (H) without wall-mount bracket

• 1 x Internal connector for optional TPM module
• 1 x Speaker out (2W 4Ω), 1 x Mic-in, 1 x Lin-out via realtek ALC3251 HD codec
• 2 x Internal pin header for USB 2.0

• Win10 64-bit
• Linux 4.1

• Neu-X101-6C-DC (P/N: 10W10X10106X2)

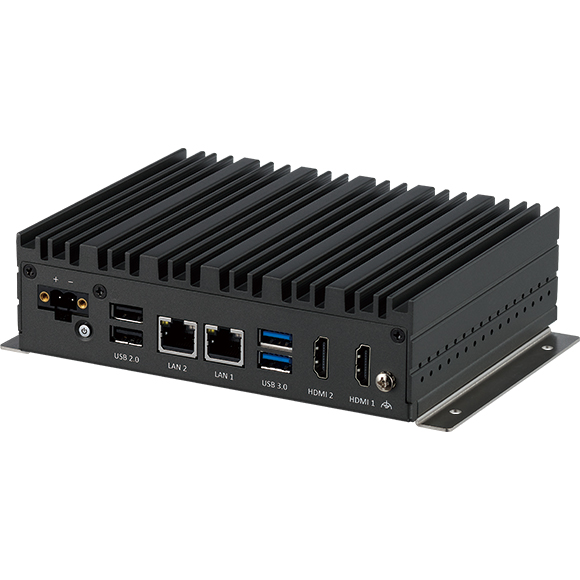

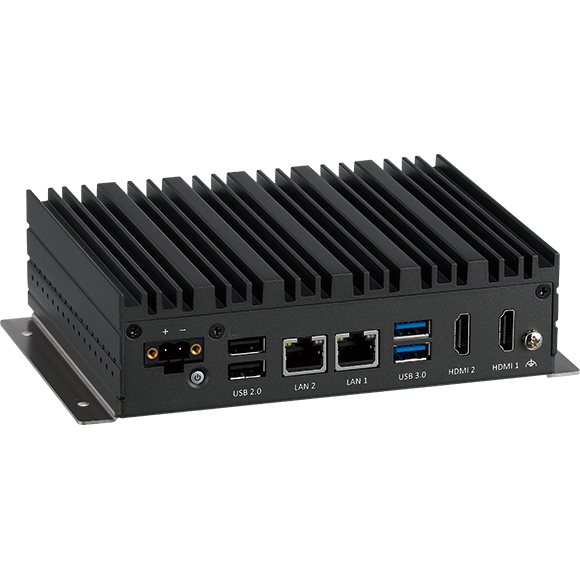

Fanless edge computing system powered by Intel® Celeron® processor J3455 with 6 x COM ports
