• 1 x 260-pin DDR4 SO-DIMM socket, up to 3200MHz with non-ECC, un-buffered memory up to 16GB

• 1 x M.2 2242 Key M storage for supporting SATA & PCIe signal

• 2 x RJ45 with LEDs for 2.5GbE LAN
• 2 x HDMI 1.4b, resolution 3840 x 2160@30Hz
• 4 x USB 3.2
• 1 x Power button with LED
• 1 x DC-in Jack with lock

• 2 x Antenna hole

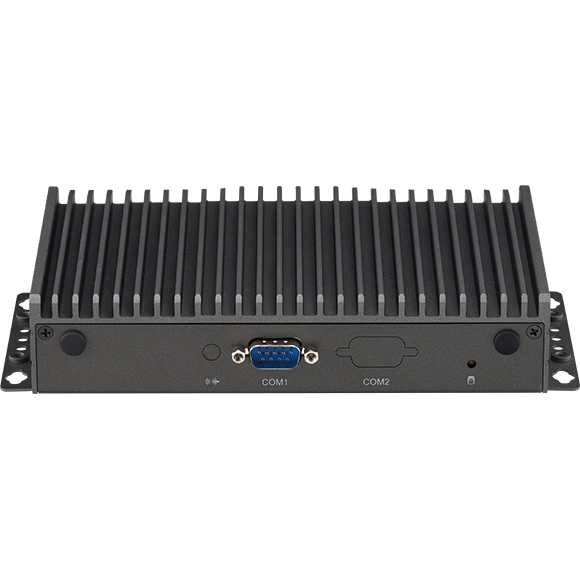

• 1 x COM port (RS232/RS422/RS485)
• 1 x Storage active LED

• Graphic & Display: Intel® UHD graphics

• 1 x mini-PCIe full-size connector with SIM slot (nano) onboard, support Wi-Fi 6/6E & LTE module

• 1 x External 12V/5A, 60W power adapter (Included in accessory)
• Input: DC+12V DC

• Operating temperature: -5°C to 50°C ambient with 0.7m/s air flow
• Humidity: 95% (non-condensing)
• Storage temperature: -20°C to 80°C
• Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27
• Vibration protection

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6

• CE (EN55035 + EN55032)
• FCC Class A (EMI part 15B)
• LVD (EN62368-1)

Mechanical & Dimension

• Aluminum and metal chassis with fanless design
•  203.5mm (W) x 106mm(D) x 40mm (H)

• 1 x COM port connector (RS232, RI/5V/12V)
• 1 x Line-out audio connector
• 2 x 6-pin header for 3 x USB 2.0 ports
• 1 x 10-pin header for GPIO, 4 x GPI, 4 x GPO

• Win10 64-bit, Win 11
• Linux 4.1 above

• Neu-X102-N97 (P/N: 10W10X10201X0)

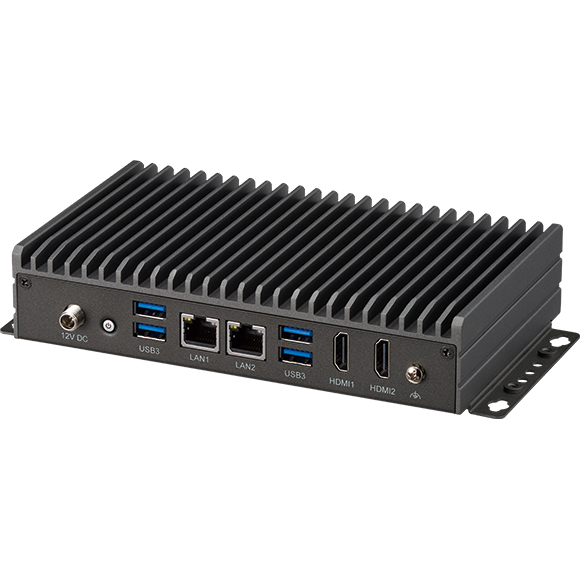

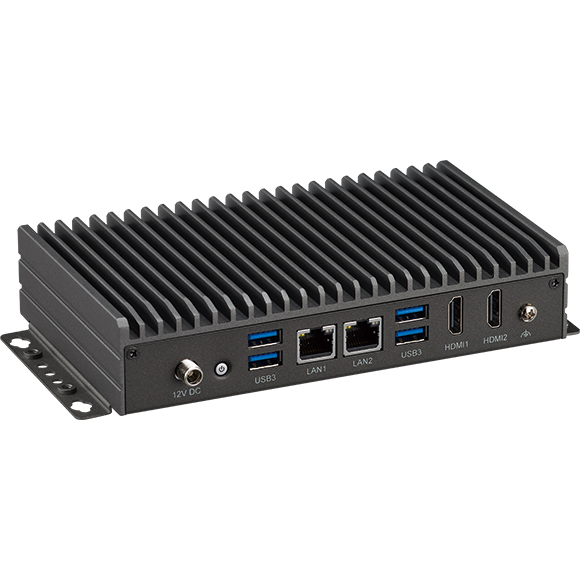

Intel® Processor, N97 (Alder Lake-N), slim and fanless system
