• 1 x 204-pin SO-DIMM socket, support up to DDR3L 1600MHz, non-ECC, un-buffered memory up to 8GB

• 1 x M.2 2242 Key M

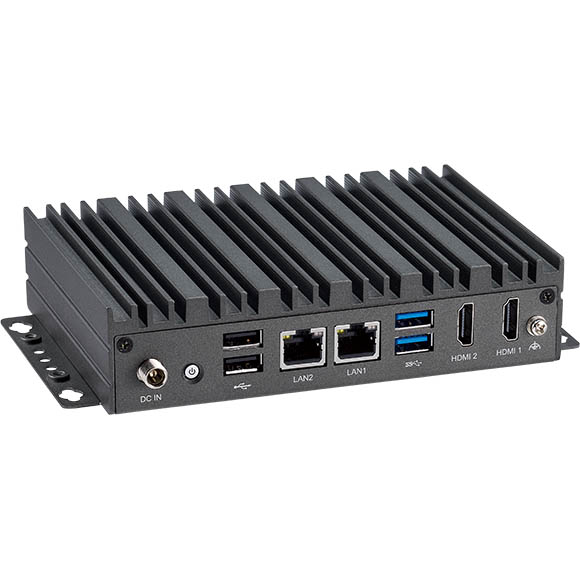

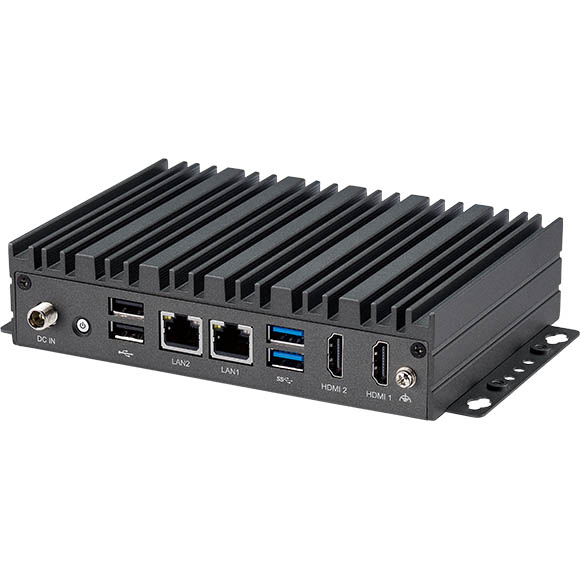

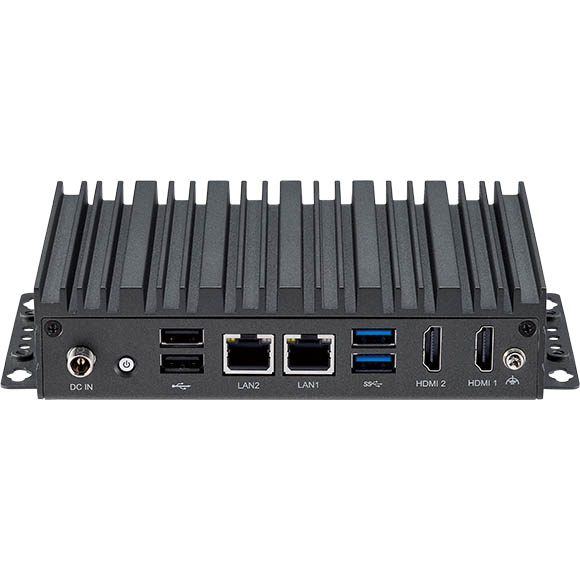

• 2 x RJ45 with LEDs for Gigabit LAN
• 2 x HDMI 1.4b, resolution 3840 x 2160 30Hz
• 2 x USB 3.0
• 2 x USB 2.0
• 1 x Power button with LED
• 1 x DC-in Jack with lock

• 2 x Antenna hole

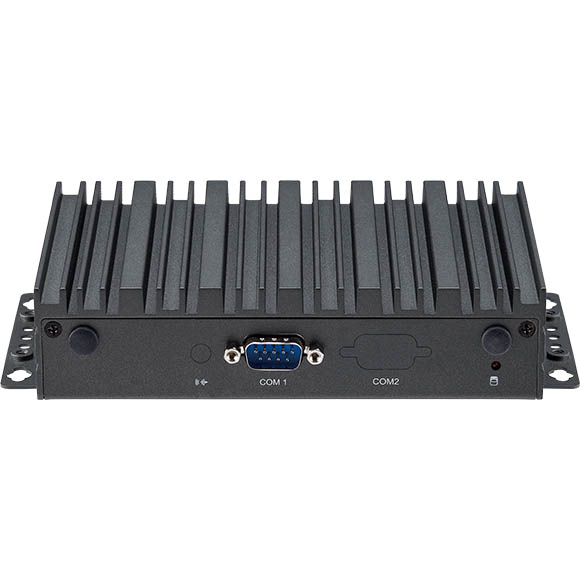

• 1 x COM port (RS232/RS422/RS485)
• 1 x Storage active LED

Graphic & Display: Intel® HD Graphics 500

• 1 x mini-PCIe full-size connector with SIM slot (nano) onboard, support Wi-Fi/LTE module

• 1 x External 60W AC/DC power adapter (power adapter is included in accessory)
• Input: 100VAC to 240VAC
• Output: DC+12VDC

• Operating temperature: -5°C to 50°C ambient with air flow
• Humidity: 95% (non-condensing)
• Storage temperature: -20°C to 80°C
• Shock protection: 50G peak acceleration, 11ms according toIEC60068-2-27
• Vibration protection

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6

• CE (EN55035 + EN55032)
• FCC Class A (EMI part 15B)
• LVD (EN62368-1)

Mechanical & Dimension:

• Aluminum and metal chassis with fanless design
• 179.5mm (W) x 106mm (D) x 37mm (H)

• 1 x COM port connector (RS232, RI/5V/12V)
• 1 x TPM module connector
• 1 x Line-out audio connector

• Win10 64-bit
• Linux 4.1

• Neu-X101 (P/N: 10W10X10100X0)

Intel® Apollo Lake J3455 processor slim and fanless system

AI Booster Card

AIBooster®-X1 (P/N: 88W10X10000X0)

Intel® Movidius™ Myriad™ X VPU, mini-PCIe module (1 x MA2485)

AIBooster®-X2 (P/N: 88W10X10001X0)

Intel® Movidius™ Myriad™ X VPU, mini-PCIe module (2 x MA2485)
