• 1x 204-pin SO-DIMM socket, support up to DDR3L 1600MHz, non-ECC, un-buffered memory up to 8GB

• 1x M.2 M key 2242 SSD

• 2 x RJ45 with LEDs for Gigabit LAN
• 2 x HDMI 2.0, resolution 4096 x 2160 60Hz
• 1 x COM port (RS232/RS422/RS485)
• 1 x DC-in Jack with lock
• 2 x USB 3.0

• 2 x Antenna hole
• 1 x Power button with LED
• 1 x Storage active LED

• 1 x mini-PCIe full-size connector, support Wi-Fi/ LTE module
• 1 x SIM slot on board (full-size )

• 1 x External 45W AC/DC power adapter with lock
• Input: 100VAC to 240VAC
• Output: DC+19VDC

• Operating temperature: -5°C to 50°C
• Storage temperature: -20°C to 80°C
• Humidity: 95% (non-condensing)

• CE (EMC EN55032 +EN55035)
• FCC Class A (EMI Part 15B)

• Dimensions: 179.5mm (W) x 106mm (D) x 37mm (H)

• 1 x COM port connector (RS232)
• 1 x Power connector
• 1 x TPM module connector
• 1 x Line out audio connector

• Win10 64-bit

• Neu-X100-N3350 (P/N: 10W10X10000X4)

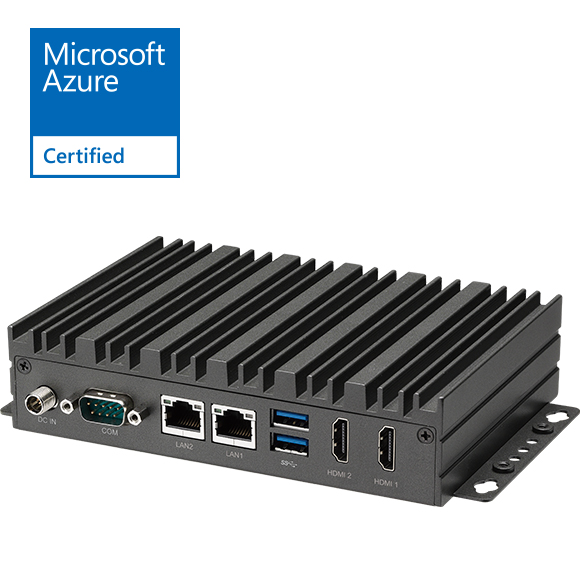

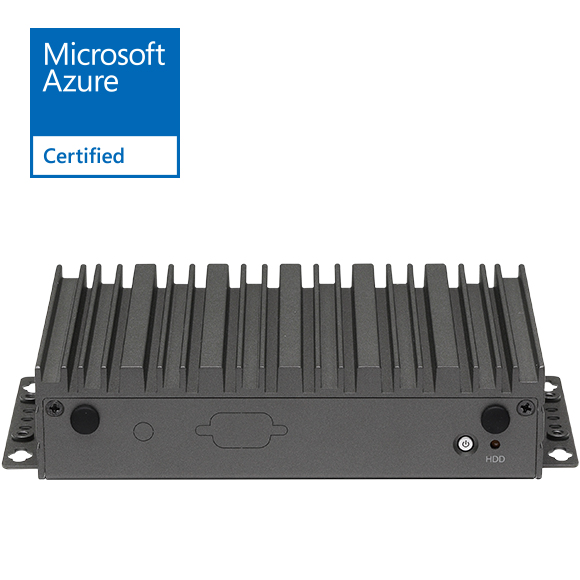

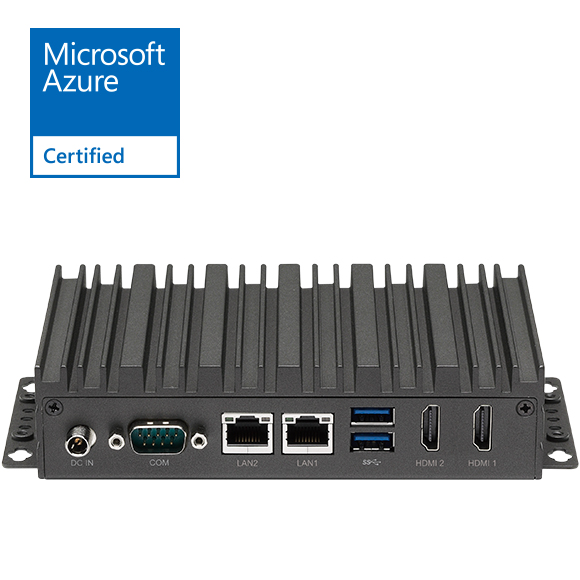

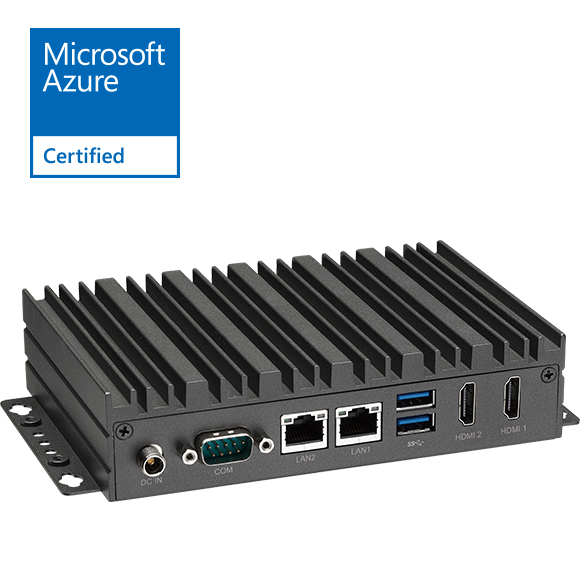

Intel® Apollo Lake N3350 processor slim and fanless system

• Neu-X100-N4200 (P/N: 10W10X10001X4)

Intel® Apollo Lake N4200 processor slim and fanless system

• Neu-X100-J3455 (P/N: 10W10X10002X4)

Intel® Apollo Lake J3455 processor slim and fanless system

AI Booster Card

AIBooster®-X1 (P/N: 88W10X10000X0)
Intel® Movidius™ Myriad X VPU, mini-PCIe module (1 x MA2485)

AIBooster®-X2 (P/N: 88W10X10001X0))
Intel® Movidius™ Myriad X VPU, mini-PCIe module (2 x MA2485)
