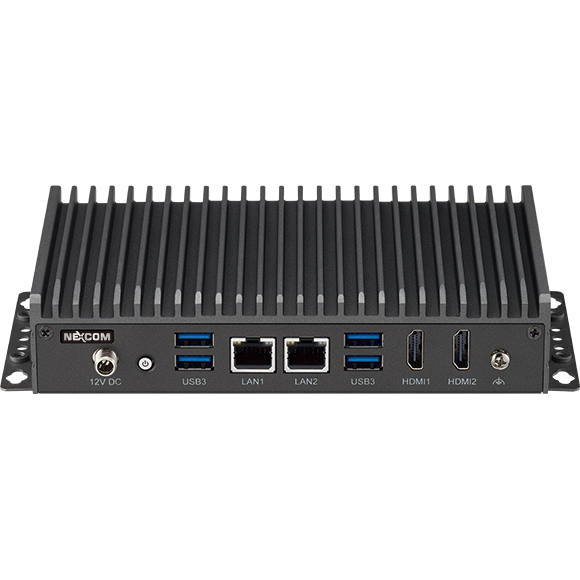

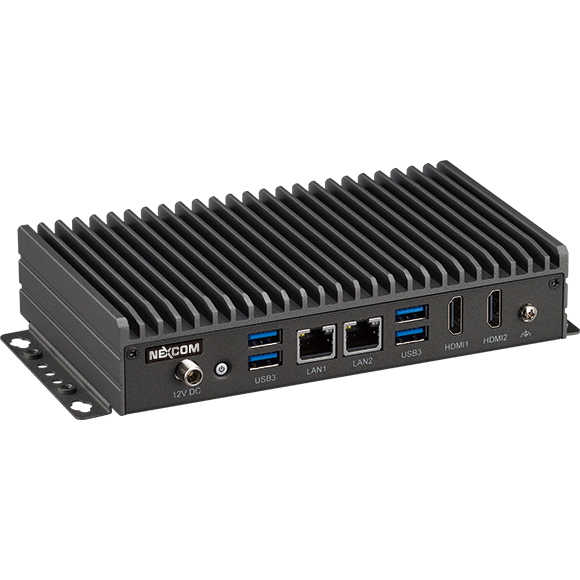

Neu-X104-N355

Edge Computing System Powered by Intel® Processor N-series

Tính năng chính

  • Intel® Processor N355
  • Slim compact chassis and fanless design
  • 1 x DDR4 3200 SO-DIMM, up to 16GB
  • Support 2 x HDMI® 1.4 output 4K@30Hz
  • TPM 2.0 onboard design for security
  • Richful I/O connectivity: 2 x 2.5GbE LAN, 4 x USB 3.2 Gen1
  • 1 x M.2 2242 Key M for supporting PCIe & SATA storage device
  • 1 x Mini PCIe slot supports Wi-Fi and LTE module
  • Support power input 12 VDC

Giá sản phẩm: Liên hệ

Lượt xem 13

Introducing the Neu-X104-N355, powered by Intel® Processor N355, offering enhanced computing performance with power efficiency, and a comprehensive set of IoT features. It supports dual HDMI® 1.4 display outputs, dual 2.5GbE LAN ports, four USB 3.2 Gen 1 ports, one RS-232/RS422/RS485 port, and an M.2 Key M 2242 storage slot that accommodates both PCIe and SATA. Additionally, the mPCIe slot supports LTE and Wi-Fi 6/6E/7 modules, enabling wide-area coverage and real-time data transmission for gateway applications.



With its slim, compact, fanless design and enhanced durability, the Neu-X104-N355 is well-suited for various applications, including IoT gateways, self-service kiosks, endless aisles, QSRs, digital signage, smart poles, intelligent lighting systems, and PIDS (passenger information display system) to make our cities smarter.

Processor



  • Intel® processor N355, 15W
Memory
  • 1 x DDR4 3200 SO-DIMM, non-ECC, unbuffered, up to 16GB
Storage
  • 1 x M.2 Key M 2242 SSD (PCIe 3.0 x1, SATA 3.0)
Expansion
  • 1 x Mini PCIe full-size connector

- Support Wi-Fi 6/6E/7 & LTE module

  • 1 x nano SIM slot
Power
  • Nominal Voltage: +12V DC+12V, 60W AC/DC power adapter in carton
Environment
  • Operating temperature: -5°C~50°C ambient with 0.7m/s air flow
  • Humidity: 95% (non-condensing)
  • Storage temperature: -20°C~80°C
  • Shock protection: 50G peak acceleration, 11ms according to IEC 60068-2-27
  • Vibration protection

- Random: 2Grms@5~500Hz, IEC 60068-2-64
- Sinusoidal: 2G@5~500Hz, IEC 60068-2-6
Certifications
  • CE (EN 55035 + EN 55032)
  • FCC Class A (EMI part 15B)
  • LVD (EN 62368-1)
I/O Ports

I/O Interface-Front

  • 2 x 2.5GbE RJ45 port with LEDs
  • 2 x HDMI® 1.4, up to 3840 x 2160@30Hz
  • 4 x USB 3.2, 10 Gbps, Type-A
  • 1 x Power button with LED
  • 1 x DC in Jack with lock

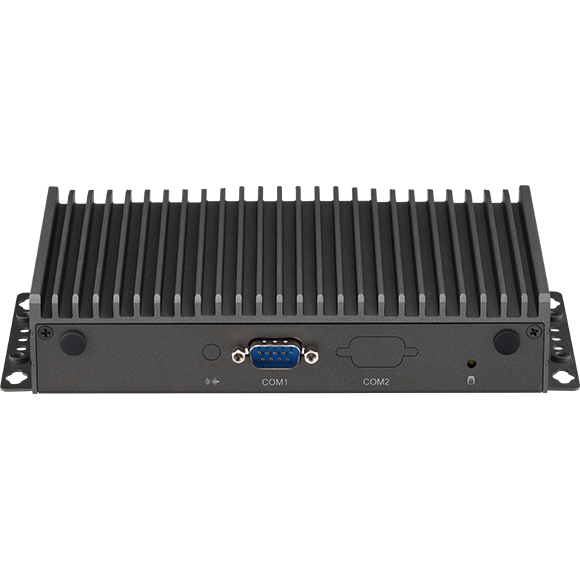

I/O Interface-Rear

  • 2 x Antenna hole
  • 1 x COM port (DB9), supports RS-232/422/485
  • 1 x Storage active LED

Internal I/O

  • 1 x 9-pin header for RS-232, supports RI/5V/12V
  • 1 x 4-pin header supporting speaker out, Amplifier 2W/4Ω
  • 1 x 9-pin header supporting Mic in and Line out
  • 2 x 6-pin header for 3 x USB 2.0 port
  • 1 x 10-pin header for GPIO, 4 x GPI, 4 x GPO
Physical Characteristics

System Unit
- Dimension: 203.5mm (W) x 106mm (D) x 40mm (H) (w/bracket)
- Net weight: 0.85 kg/unit

Package carton
- Dimension: 296mm (W) x 276mm (D) x205mm (H)
- Gross weight: 3.2kg (2 units/per carton)
Support OS
  • Win 11
  • Win 10 64-bit
  • Linux
Hãng NEXCOM
Operating System Windows 10, Windows 11Linux
