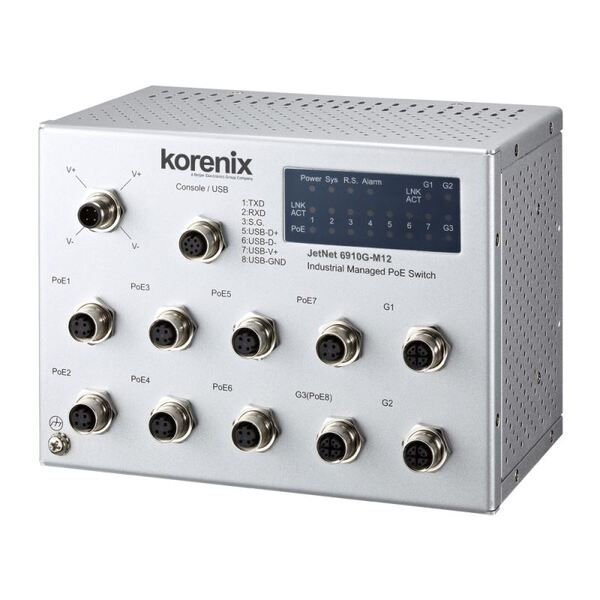

Managed High Power Switch JetNet 6910G-M12 HVDC

JetNet 6910G-M12 HVDC

Industrial 7 FE/ 1GbE/PoE 2GbE Managed High Power Switch

Tính năng chính

7 ports Fast Ethernet M12 D-code 3 Gigabit M12- X-code
8 IEEE 802.3af/at PSE allocated in 7 ports Fast Ethernet and 1 Gigabit Ethernet
EN50155 Railway on-board design
2 Gigabit Ethernet interfaces support Device Fault Bypass function
Network Redundancy – MSR (Multiple Super RingITU-T G.8032 ERPS RSTP MSTP Super Chain
Fully Device Management – SNMP v1/v2c/v3 RMON Web UI Telnet and Local Console

Giá sản phẩm: Liên hệ

The JetNet 6910G-M12 is new generation power over Ethernet Switch with rugged M12 connectors for IP surveillance in like as Train, MRT and LRV systems. It adapts 8 ports /PSE in 7 ports Fast Ethernet and 1 Gigabit interfaces, and 2 Gigabit interfaces with device fault bypass function. The PSE system enabled 30W high power function and compliance with IEEE 802.3af/at standard. The Switch system also adapts railway electrical power system and supports several types of input voltage rating to correspond different train electrical power system. With above major features, the JetNet 6910G-M12 is helpful to construct on train with multi-backup features to ensure passenger’s safety and train network reliability.

Technology	SW/Protocol Management: SNMP V1/2c/3 CLI Web Trap RMON RSTP/MSTP: Yes Traffic priority (QoS): Yes VLAN, P-VLAN, QinQ, GVRP: Yes IGMP query, snooping, GMRP: Yes IEEE 802.1AB LLDP network discovery: Yes IEEE 802.3ad LACP, static trunk: Yes IEEE 1588 PTP v1/v2: IEEE 1588 PTP V1 Jumbo frame/MAC address: 9.Kbytes Port mirroring: Yes IEEE 802.1x, IP/port security/SSL/HTTPS,SSH/Telnet: Yes TACACS+, Radius: Yes SNMP/RMON/Trap: Yes CLI/Web/Telnet: Yes DHCP (server, client, Opt 82, port based server): Yes
Interface	Total ports number: 10 10/100TX ports: 7 x M12-D 10/100/1000TX ports: 1 x M12-X(PoE+) 2 M12-X(w/Bypass) Console: M12-A RS 232 USB DC power input: 2 x DC 110V (77-137.5V) PoE ports: 8 Power feeding mode: M12-X : V+(12) V-(34) M12-D : V+(13) V-(24) PoE mode: IEEE 802.3af/at PoE scheduling: Yes System PoE budget: 100W/70℃
Approval/Compliance	Regulatory/approval: CE/FCC/EN50155/IEC 61373/EN50121-3-2
Environmental	Operating temperature: -40~70℃
Features	Switch type: L2 Managed Network redundancy: MSR RSTP/MSTP LACP Broadcast storm protection: yes Security: Port IEEE 802.1X Port w /RADIUS Server DHCP server (Opt82, port based): Yes IP security/Port security/SSL/HTTPS/SSH/Telnet: Yes
Mechanical	Housing/protection (IP): IP30 Dimension (HxWxD mm): 145.2 x 198 x 120 Mounting: Wall Mount
Management	Layer 2
Mounting	Wall Mount
Standards	EN 50155
Hãng	BEIJER ELECTRONICS

DATASHEETS

JetNet 6910G-M12 HVDC - Beijer Electronics.pdf

[ JetNet 6910G-M12 HVDC - Beijer Electronics.pdf , 0.2MB , Jul.10.2024 ]
