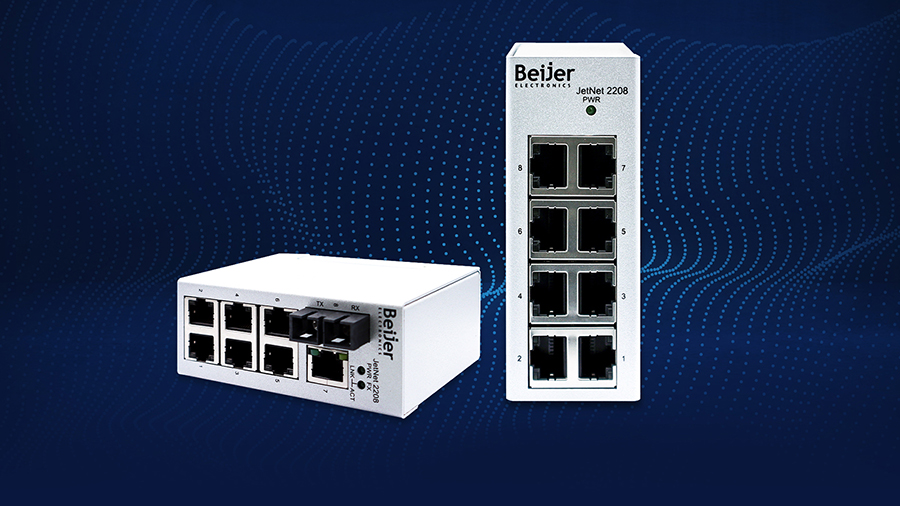

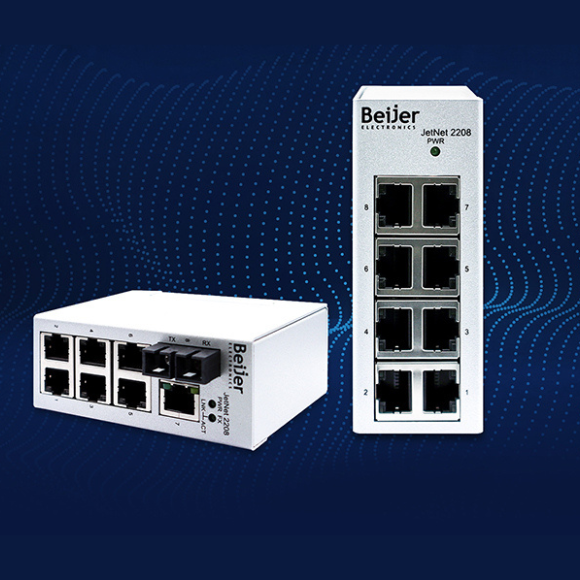

JetNet 2208-T7-SC1-SM

Industrial 8-port Compact Unmanaged Fast Ethernet Fiber Switch (single-mode)

Tính năng chính

7 10/100Base-TX Ports plus 1 100BASE-FX
Industrial Slim Size Design
12/24/48VDC Power input
Support 802.1p QoS
Wide operating temperature (-40°C ~75°C)

Giá sản phẩm: Liên hệ

The JetNet 2208 series is an 8-port industrial-grade switch, including the JetNet 2208-T8, JetNet 2208-T7-SC1-SM, and JetNet 2208-T7-SC1-MM models. It serves as a vital component for connecting field equipment, instruments, and asset networks.

Designed as a replacement for the JN3008 series Fast Ethernet Switch, the JetNet 2208 series is ideal for connecting controllers to field devices such as I/Os, transmitters, HMIs, and other data acquisition systems.

Its robust design meets the demanding requirements of industrial environments, ensuring reliable and efficient networking.

Technology	Traffic priority (QoS): CoS:4-7(High), 0-3(Low) w/ Queue Weight rate: 16: 1
Interface	Total ports number: 8 10/100TX ports: 7 Fiber ports: 1 x 100M Multi-mode SC Connector DC power input: 1x 12/24/48 VDC
Approval/Compliance	Regulatory/approval: CE/FCC/UL 62368-1/KC RoHS: Yes
Environmental	Operating temperature-40~75°C
Mechanical	Housing/protection (IP): IP30/Metal Dimension (HxWxD mm): 98 x 39 x 72 Mounting: DIN Rail
Management	Unmanaged
Hãng	BEIJER ELECTRONICS

DATASHEETS

JetNet 2208 - Beijer Electronics.pdf

[ JetNet 2208 - Beijer Electronics.pdf , 0.16MB , Jan.09.2025 ]
