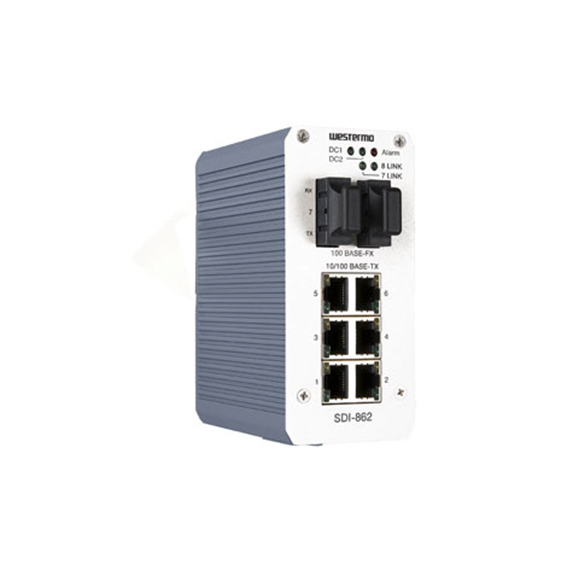

SDI-862-SM-SC30
Unmanaged 8-port Ethernet Fibre Switch
Tính năng chính
- Unmanaged 8-port Ethernet Fibre Switch
- 6 x 10/100 Base T ports
- 2 x 100 Base-FX ports single-mode SC connector
- –10 to +70°C (+14 to +158°F) operating temperature
- DIN rail mount
- Dual 10 to 60 VDC power supply
Giá sản phẩm: Liên hệ
The SDI-862 is a simple and cost-effective unmanaged fiber switch suitable for use in a wide range of factory and building automation applications. Two models are available: The SC2 for use on up to 2 km (1.2 mi) of multimode fibre and the SC30 for single-mode applications up to 30 km (18 mi).
A high-speed switch core ensures full speed on all ports and transparency to any Ethernet protocol.
The unit is designed for DIN rail mounting into industrial cabinets, allowing simple Ethernet connections to be established between PLCs, I/O units, drives, inverters, and HMIs.
The SDI-862 is easy to use, simply connect power to the screw terminals and plug in your RJ-45 cables. If you plan to use the fault contacts a DIP switch allows configuration whilst LEDs provide simple diagnostics if required. A broadcast storm filter helps out if a loop is created by mistake.
| Interface |
6 x 10/100 Base-TX with Auto MDI/MDI-X, Auto-Negotiation function 2 x 100 Mbit/s Fibre in multi-mode (Westermo SDI-862-MM-SC2) or single-mode (Westermo SDI-862-SM-SC30)
|
| Approval/Compliance |
EMC
|
| Environmental |
|
| Power Requirements |
|
| Mechanical |
|
| Management | Unmanaged |
| Mounting | DIN-rail |
| Connections | ≤10 Ethernet Ports |
| Hãng | WESTERMO |
