• Enclosure Port:

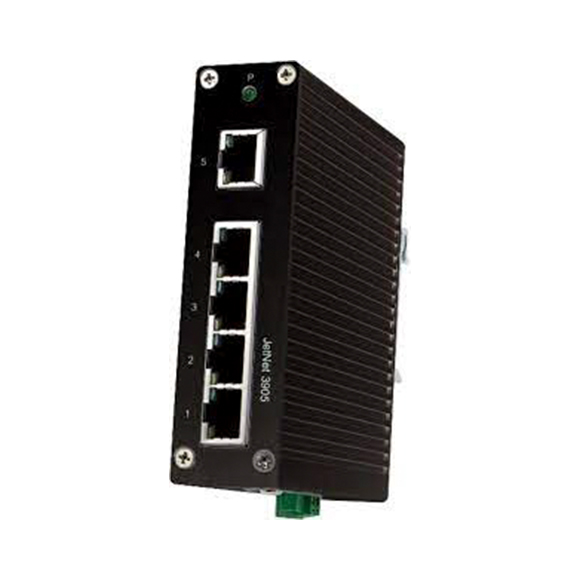

- 4-port 10/100T(X) RJ-45Ethernet Port

- Non-blocking Switching Performance

- Auto negotiation speed, Full/Half duplex mode and auto MDI/MDI-X connection

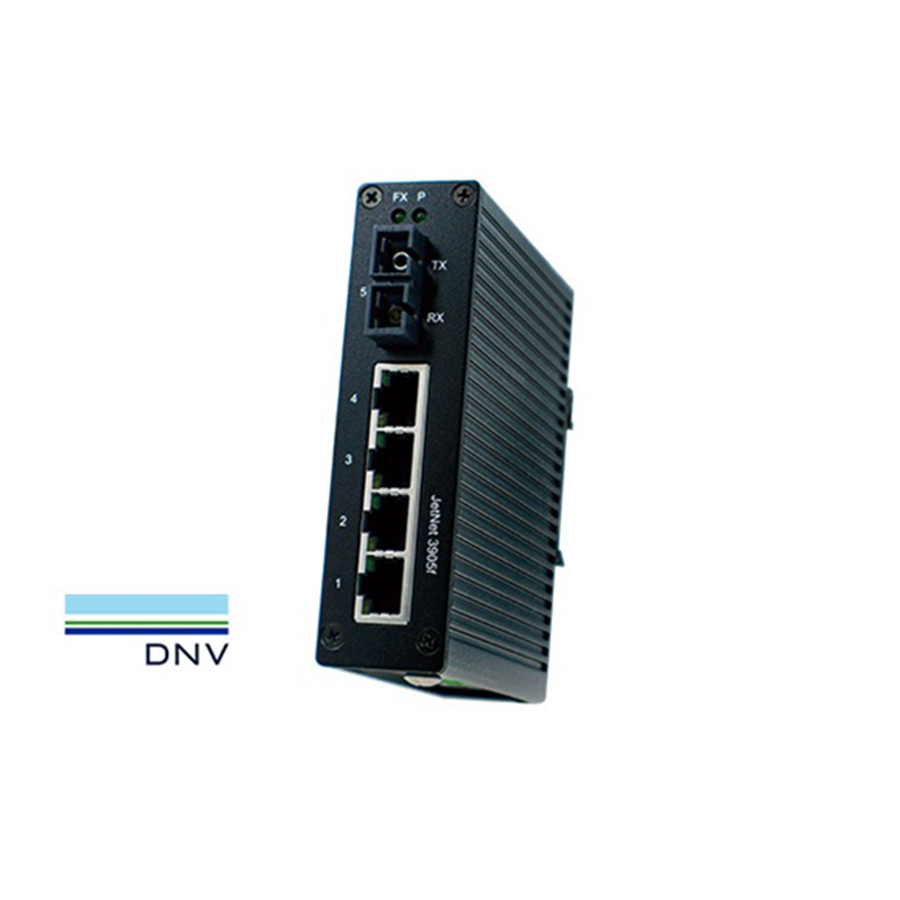

• Fiber Port: 1-port 100Base F(X)
• Ethernet Cable: 100Base-TX: 4-pair Cat.5e / Cat.6 UTP/STP cable, 100Meters
• LEDs:

- 1x Power (Green on)

- Ethernet Port: 100Mbps Link (Green on)

- 100Mbps Activity (Green blinking)

- 10Mbps link (Amber on)

- 10Mbps Activity (Amber blinking)

- 1x Fiber: Link (Green on)

- Activity (Green blinking)

• Switch Technology: Store and Forward technology
• MAC Address: 1K MAC address table
• Packet Buffer: 448 Kbits packet buffer
• Transfer packet size: 64 Bytes ~ 1536 Bytes
• Transfer Performance: 14,880 pps for 10 Mbps, 148,800 pps for 100 Mbps
• Broadcast Storm Control: Default enabled

• EMC

- IEC/EN61000-6-2, IEC/EN61000-6-4 ,EN55032/55035

- EMI: FCC Class B, CE/Class B

- EMS: IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8

• Shock: Compliance with IEC 60068-2-27
• Vibration: Compliance with IEC 60068-2-6
• Free Fall: Compliance with IEC 60068-2-32
• Marine: DNV GL rules for classification – Ships and Offshore units
• Safety: IEC 62368-1, UL 62368-1
• Warranty: 5 years

• Operating Temperature: -40 ~ 75°C / -40°F ~ 167°F
• Operating Humidity: 0% ~ 95%, non-condensing
• Storage Temperature -40 ~ 85°C / -40°F ~ 185°F

• System power: Power inputs
• Voltage: 10-60 VDC, 0.21A (The recommended working voltage is 24VDC)
• Power Consumption: Max 5W
• Connection: 1 x removable 2-contact terminal block

• Installation: DIN-Rail mounting
• Case: IP30 grade metal case

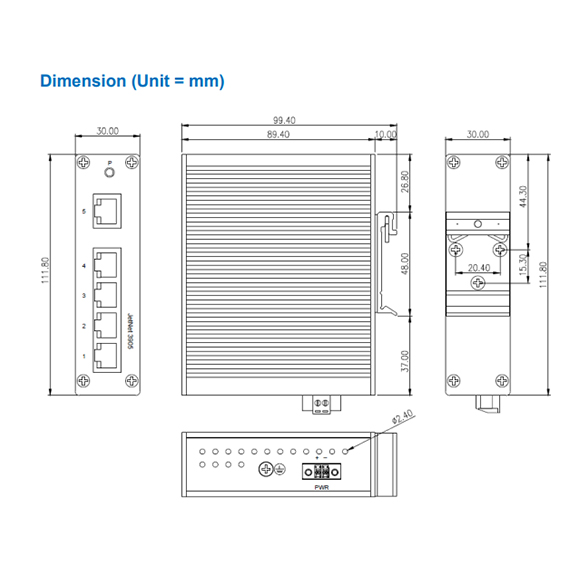

• Dimensions: Without DIN rail clip – W x D x H: 89.4 x 30 x 111.8 mm / 3.52 x 1.18 x 4.40 in.
• Weight Packaged: 0.35 kg / 12.34 oz; Without package 0.28 kg / 9.87 oz
