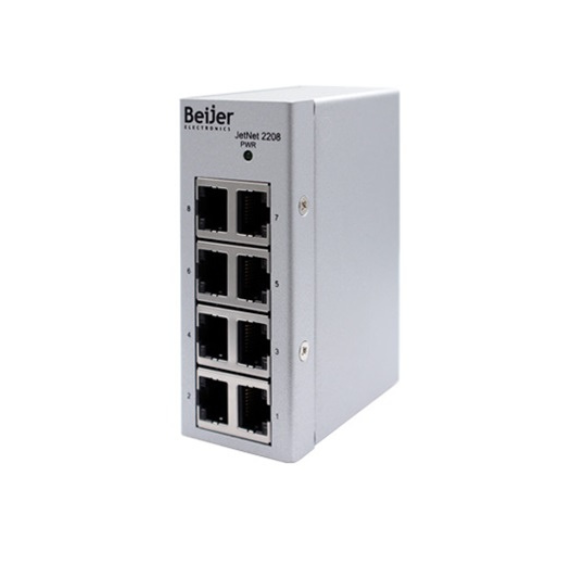

JetNet 2208-T8

Industrial 8-port Compact Unmanaged Fast Ethernet Switch

Tính năng chính

  • 8 10/100Base TX Ports with MDI/MDI-X connection
  • Industrial Slim Size Design
  • 12/24/48VDC Power input
  • Support 802.1p QoS
  • Wide operating temperature (-40°C ~75°C)

Giá sản phẩm: Liên hệ

Lượt xem 19

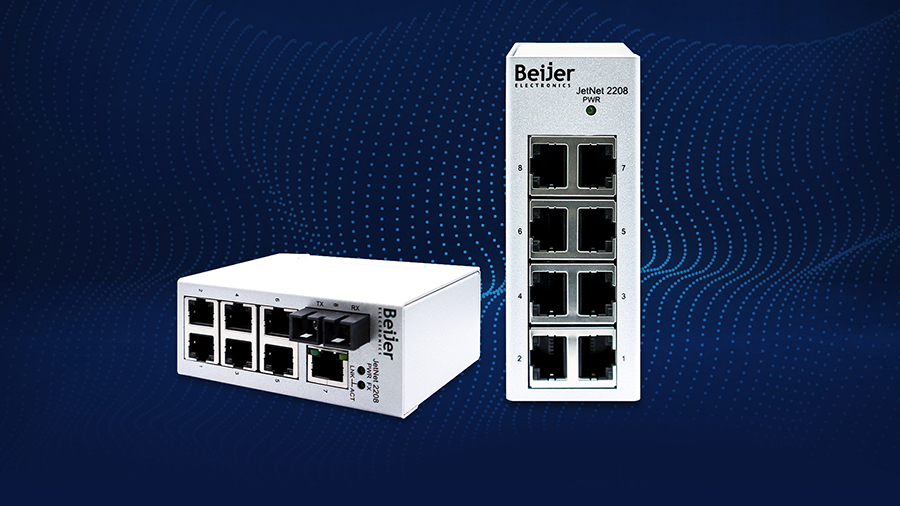

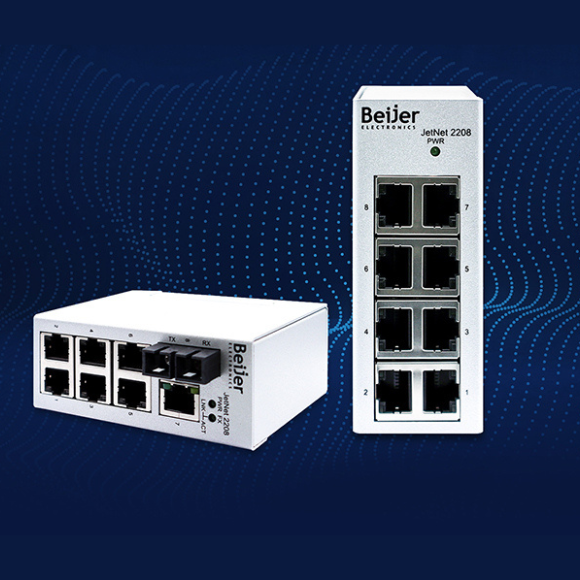

The JetNet 2208 series is an 8-port industrial-grade switch, including the JetNet 2208-T8, JetNet 2208-T7-SC1-SM, and JetNet 2208-T7-SC1-MM models. It is vital for connecting field equipment, instruments, and asset networks.

Designed as a replacement for the JN3008 series Fast Ethernet Switch, the JetNet 2208 series is ideal for connecting controllers to field devices such as I/Os, transmitters, HMIs, and other data acquisition systems.

Its robust design meets the demanding requirements of industrial environments, ensuring reliable and efficient networking.



Technology
  • Traffic priority (QoS): CoS:4-7(High), 0-3(Low) w/ Queue Weight rate 16: 1
Interface
  • Total ports number: 8
  • 10/100TX ports: 8
Approval/Compliance
  • Regulatory/approval: CE/FCC/UL 62368-1/KC
  • RoHS: Yes
Environmental
  • Operating temperature: -40~75°C
Mechanical
  • Housing/protection (IP): IP30/Metal
  • Dimension (HxWxD mm): 98 x 39 x 72
  • Mounting: DIN Rail
Management Unmanaged
Connections ≤10 Ethernet Ports
Hãng BEIJER ELECTRONICS

DATASHEETS
JetNet 2208 - Beijer Electronics.pdf
[ JetNet 2208 - Beijer Electronics.pdf , 0.14MB , Jan.09.2025 ]
