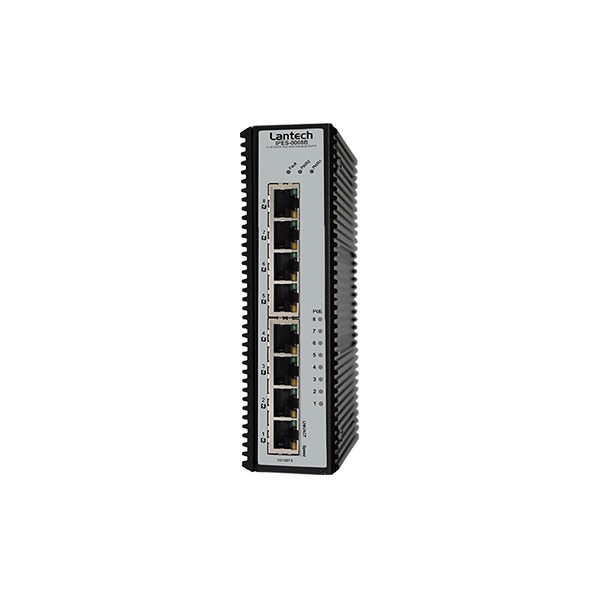

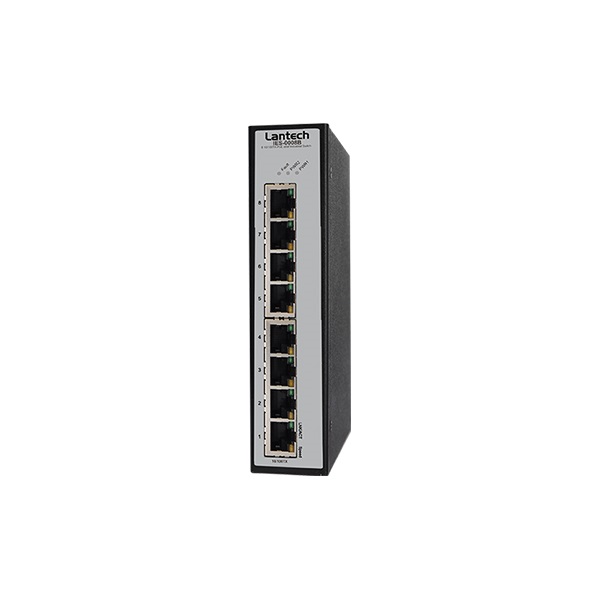

Lantech I(P)ES-0008B is a high performance all 8 10/100TX industrial Ethernet switch with w/8/6 PoE 802.3af/at ports.

Galvanic isolation for dual 48V, 12V, 24V input with max PoE budget
The IPES-0008B supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc.

The IPES-0008B-12V accepts power input 9~56VDC with IEEE802.3at/af standard and feed up to 30W per PoE port with maximum 120W@24V and 80W@12V output (at dual input). The 24V model is also compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start.

PoE 48V model accepts 45~56VDC power input and can feed 48V output for PoE feeding in vehicle at max 240W @48V input.

E-marking certificate, High reliability and extended working temperature
Lantech I(P)ES-0008B provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.

The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

The E-marking certificate makes it the most suitable PoE switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 12V but has demand of IP surveillance or VoIP applications. Only 12V or 24VDC input system is applicable for E-mark approval.
