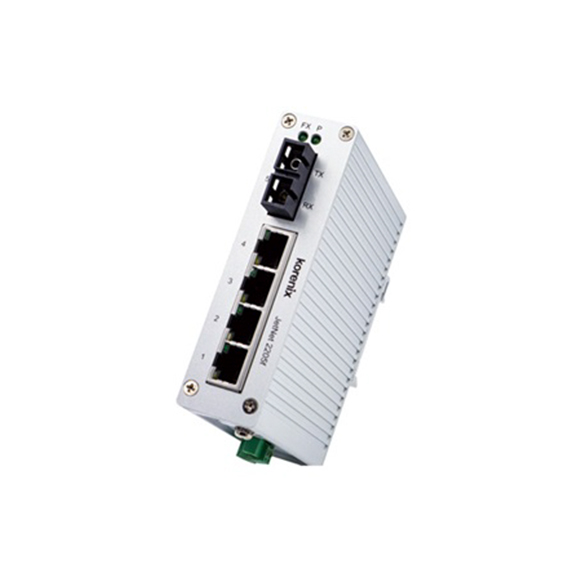

JetNet 2205f-s

Industrial 5-port Fast Ethernet Switch

Tính năng chính

4 10/100 Base TX ports plus 1 Fast Ethernet Fiber ports
Industrial Slim Size Design
Broadcast storm control
Support 802.1p QoS
Supports AC 1.5KV Hi port isolation protection
Wide Power input 10 60 VDC

Giá sản phẩm: Liên hệ

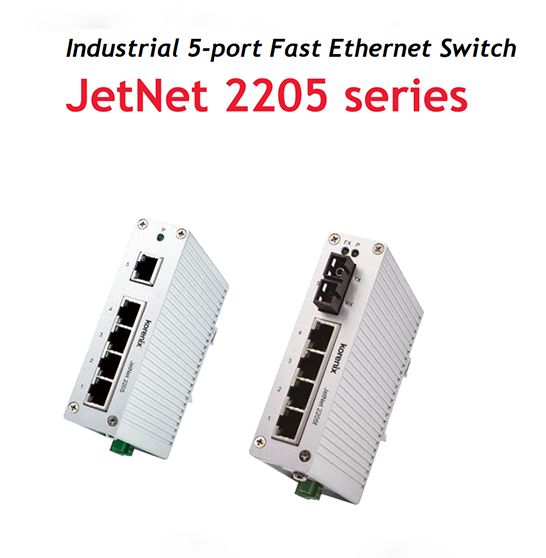

JetNet 2205/JetNet 2205f is a compact size 5(4)-port 10/100(X) and 0(1) port 100Base F(X) Industrial Ethernet Unmanaged Switch, which ensures high switching performance and easy installation. Along with its high switching performance, it supports multiple internal performance features, such as, Flow Control, broadcast storm filtering ensures quality traffic transmission.
JetNet 2205 series require no user setup and immediately start operating as soon as you power it up. Excellent data transmission performance is provided for you. The slim-sized design makes it an ideal model that would physically fit in a network environment with limited space.

Technology	IEEE Standards IEEE 802.3 10Base-T IEEE 802.3u100Base-TX/100Bae-Fx IEEE 802.3x Flow Control IEEE 802.1p QoS
Interface	Enclosure Port: - 5-port 10/100BaseT(X) RJ-45Ethernet Port - Non-blocking Switching Performance - Auto negotiation speed, Full/Half duplex mode and auto MDI/MDI-X connection Ethernet Cable: 100Base-TX: 4-pair Cat.5e / Cat.6 UTP/STP cable, 100Meters LEDs: - 1x Power (Green on) - Ethernet Port: 100Mbps Link (Green on); 100Mbps Activity (Green blinking); 10Mbps link (Amber on); 10Mbps Activity (Amber blinking) 1x Fiber: Link (Green on); Activity (Green blinking)
Performance	Switch Technology: Store and Forward technology MAC Address: 1K MAC address table Packet Buffer: 448 Kbits packet buffer Transfer packet size: 64 Bytes ~ 1536 Bytes Transfer Performance: 14,880 pps for 10 Mbps, 148,800 pps for 100 Mbps Broadcast Storm Control: Default enabled
Approval/Compliance	EMC: - IEC/EN61000-6-2, IEC/EN61000-6-4, EN55032/55035 - EMI: FCC Class B, CE/Class B Shock: Compliance with IEC 60068-2-27 Vibration: Compliance with IEC 60068-2-6 Free Fall: Compliance with IEC 60068-2-32 Safety: IEC 62368-1, UL 62368-1
Environmental	Operating Temperature: -40 ~ 75°C / -40°F ~ 167°F Operating Humidity: 0% ~ 95 %, non-condensing Storage Temperature: -40 ~ 85°C / -40°F ~ 185°F
Power Requirements	System power: Power inputs Voltage: 10-60 VDC, 0.21A (The recommended working voltage is 24VDC) Power Consumption: 2W Connection: 1 x removable 2-contact terminal block

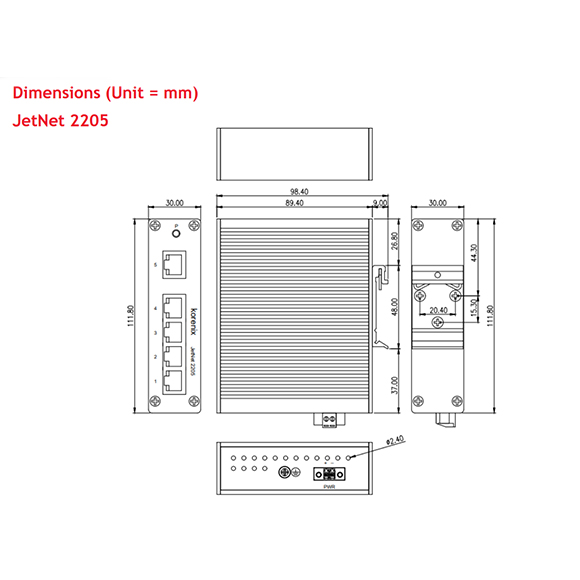

Mechanical	Installation: DIN-Rail mounting Case: IP30 grade metal case Dimensions: Without DIN rail clip – W x D x H: 89.4 x 30 x 111.8 mm / 3.52 x 1.18 x 4.40 in. Weight Packaged: 0.35 kg / 12.34 oz; Without package: 0.28 kg / 9.87oz
Management	Unmanaged
Mounting	DIN-rail
Hãng	KORENIX

DATASHEETS

JetNet 2205 Series.IG.v1.2.pdf

[ JetNet 2205 Series.IG.v1.2.pdf , 1.29MB , May.04.2024 ]
