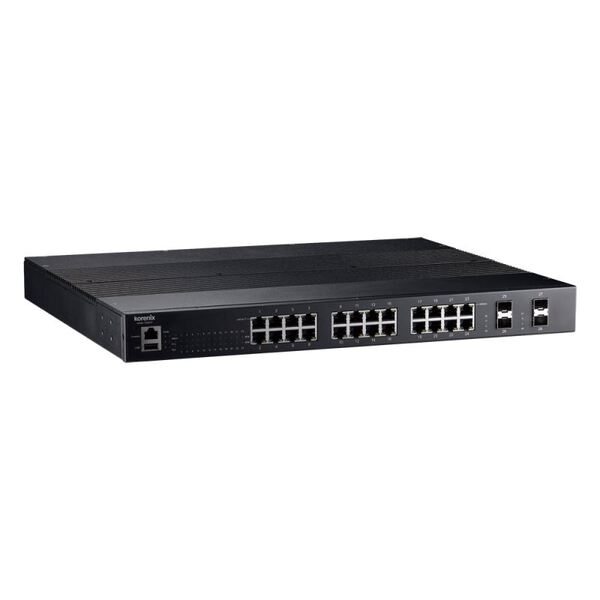

Managed Ethernet Switch 28 ports JetNet 6628X-4F-EU V1.0

JetNet 6628X-4F-EU V1.0

Industrial 28G Full Gigabit with 4*10G SFP L2 Managed Ethernet Switch

Tính năng chính

24 100/1000Base-TX 4* 10Gigabit SFP ports
Advanced Cyber Security – DHCP Snooping IP Source Guard Dynamic ARP Inspection L2/L3 Access
Redundancy – MSR ITU-T G.8032 ERPS
USB Firmware upgrade and configuration backup and restore
Isolated redundant power inputs with dual DC power and one 110/220 VAC power
Compliance with EN50121-4

Giá sản phẩm: Liên hệ

The JetNet 6628X-4F is a 19-inch L2 Full Gigabit Industrialswitch and is specially designed for surveillance application that operate in extremely harsh environments. With full Gigabit capability, the JetNet 6628X-4F increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network.

Technology	SW/Protocol Management: IPv6 RSTP/MSTP: Yes Traffic priority (QoS): 8 Queues/port VLAN, P-VLAN, QinQ, GVRP: 4k VLANs IGMP query, snooping, GMRP: Yes IEEE 802.1AB LLDP network discovery: Yes IEEE 802.3ad LACP, static trunk: Yes IEEE 1588 PTP v1/v2: HW time stamping Jumbo frame/MAC address: 9.2Kbytes/16K Port mirroring: Yes DDM SFP: Yes IEEE 802.1x, IP/port security/SSL/HTTPS,SSH/Telnet: Yes TACACS+, Radius: Yes Industry protocol (ModBus/ TCP,EtherNet/IP): Modbus/TCP EtherNet/IP SNMP/RMON/Trap: Yes CLI/Web/Telnet: Yes DHCP (server, client, Opt 82, port based server): Yes
Interface	Total ports number: 28 10/100/1000TX ports: 24 Fiber ports: 4 x 1G/10G SFP ports DI/DO (dry relay): DO Console/USB: RS 232/USB DC power input: 2x44-57VDC AC power input: 1x90-264VAC
Approval/Compliance	Regulatory/approval: CE/FCC/EN50121-4
Environmental	Operating temperature: -40~75°C
Features	Switch type: L2 Managed Network redundancy: MSR MultiRing TrunkRing RDH SuperChain ITU-T G.8032 ERPS Broadcast storm protection: Yes Security: Port security IEEE 802.1X DHCP Snooping IP Source Guard Dynamic ARP Inspection DHCP server (Opt82, port based): Yes
Mechanical	Housing/protection (IP): IP40 Dimension (HxWxD mm): 44 x 440 x 378.5 Mounting: Rackmount
Management	Layer 2
Mounting	Rackmount
Connections	≥11 Ethernet Ports
Standards	EN 50121-4
Hãng	BEIJER ELECTRONICS

DATASHEETS

JetNet 6628X-4F-EU V1.0 - Beijer Electronics.pdf

[ JetNet 6628X-4F-EU V1.0 - Beijer Electronics.pdf , 0.18MB , Jul.10.2024 ]
