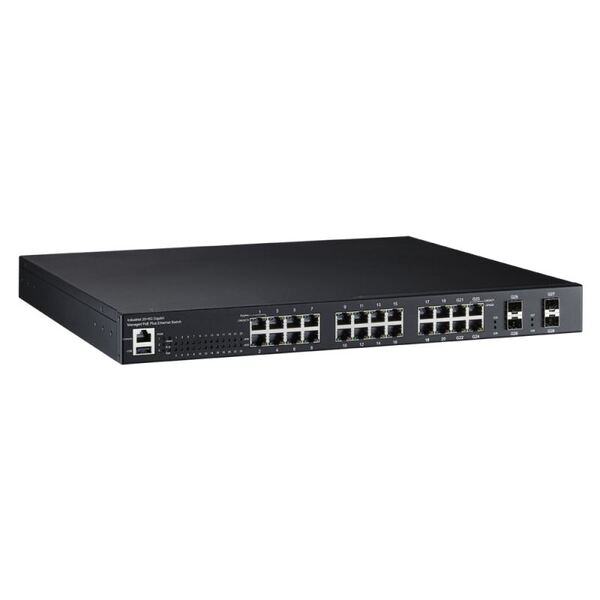

Ethernet Switch Layer 2 JetNet 5728G

JetNet 5728G-24P-AC-2DC-US V2.1

Industrial 20FE+8G Gigabit Managed 24 PoE Plus Ethernet Switch

Tính năng chính

20 10/100Base-TX and 4 10/100/1000Base-T with 24 PoE Plus ports 4 Gigabit SFP ports
Advanced Cyber Security – DHCP Snooping IP Source Guard Dynamic ARP Inspection)
Redundancy – MSR ITU-T G.8032 ERPS
USB Firmware upgrade and configuration backup and restore
IEEE 1588v2 PTP with HW time stamping
Compliance with EN50121-4

Giá sản phẩm: Liên hệ

Korenix JetNet 5728 G series is a 19-inch Gigabit Layer 2+ Industrial PoE Plus switch and is specially designed for surveillance application that operate in extremely harsh environments With up to 24-port PoE capability, the JetNet 5728 G is designed exclusively for highly critical and large-scale PoE applications.
In addition, the JetNet 5728 G provides the Korenix patented PoE technology, the Korenix cyber security+, the Korenix cyber redundancy+, and the isolated redundant power supplies to ensure the high secure and high availability for mission critical industrial applications.

Technology	SW/Protocol Management: IPv6 Traffic priority (QoS): 8 Queues/port VLAN, P-VLAN, QinQ, GVRP: 4k VLANs IGMP query, snooping, GMRP: Yes IEEE 802.1AB LLDP network discovery: Yes IEEE 802.3ad LACP, static trunk: Yes IEEE 1588 PTP v1/v2: SW based Jumbo frame/MAC address: 9.2Kbytes/16K Port mirroring: Yes DDM SFP: Yes IEEE 802.1x, IP/port security/SSL/HTTPS,SSH/Telnet: Yes TACACS+, Radius: Yes Industry protocol (ModBus/ TCP,EtherNet/IP): Modbus/TCP EtherNet/IP SNMP/RMON/Trap: Yes CLI/Web/Telnet: Yes
Interface	Total ports number: 28 10/100TX ports: 20(16 PoE+) 10/100/1000TX ports: 4 Fiber ports: 4 x 1000M SFP ports DI/DO (dry relay): DO Console/USB: RS 232/USB DC power input: 2x44-57VDC(IEEE 802.3af) 2x50-57VDC(IEEE 802.3at) AC power input: 1x90-264VAC PoE wiring: 1236 PoE specification: IEEE802.3af IEEE802.3at PoE technology: PoE Priority Control PD keep alive checking PoE Scheduling Embedded AC power: 300W Total power budget: 180W@AC(75℃) 270W@AC(-40~60℃) 650W@DC(-40~75℃)
Approval/Compliance	Regulatory/approval: FCC/EN50121-4
Environmental	Operating temperature: -40~75℃ (fanless)
Features	Switch type: L2 Managed Network redundancy: MSR MultiRing TrunkRing RDH SuperChain ERPS Broadcast storm protection: Yes Security: IPv4/IPv6
Mechanical	Housing/protection (IP): IP40 Dimension (HxWxD mm): 44 x 431 x 375 Mounting: Rackmount
Management	Layer 2
Mounting	Rackmount
Standards	EN 50121-4
Hãng	BEIJER ELECTRONICS

DATASHEETS

JetNet 5728G-24P-AC-2DC-US V2.1 - Beijer Electronics.pdf

[ JetNet 5728G-24P-AC-2DC-US V2.1 - Beijer Electronics.pdf , 0.19MB , Jul.10.2024 ]
