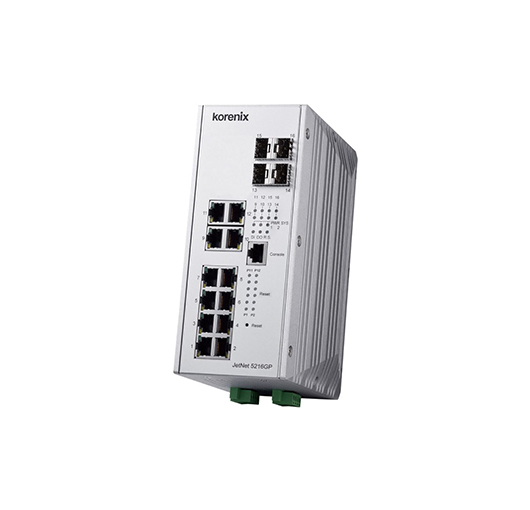

Industrial Managed PoE Switch JetNet 5216GP-4F

JetNet 5216GP-4F

JetNet 5216GP-4F Industrial Managed PoE Switch

Tính năng chính

12 10/100/1000 Base TX ports + 4 Gigabit SFP ports
Compliance with IEEE 802.3af/at
Network Redundancy – MSR (Multiple Super Ring) RSTP MSTP. DH Chain
Layer 2 Network Performance – IEEE802.1Q VLAN Trunk Packet Filtering DHCP Server/Client Traffic Prioritize Rate Control
Fully Device Management – SNMP v1/v2c/v3 Web UI Telnet and Local Console
Railway Track Side EN50121-4 Certification

Giá sản phẩm: Liên hệ

Korenix JetNet 5216GP Series, the DIN-Rail type industrial Gigabit Managed PoE Switch. JetNet 5216GP is the first industrial ethernet switch compliance with IEEE 802.3 af/at/bt, each ethernet port can max supports 90W for PD, and total budget up to 480W ^*Note.
JetNet 5216GP series is designed for operating reliably under harsh environments, it supports one alarm relay to indicate fault conditions when any link or power failure happens, as a result, users can quickly handle the emergency and shorten the failover time. With IEC 61000-6-2/ 61000-6-4 Heavy Industrial EMC and Trackside certification design, including robust enclosure and -40~75°C wide operating temperature range, JetNet 5216GP series ensures high performance under traffic control systems and other Network applications.

Technology	SW/Protocol Management: SNMP V1/2c/3 CLI Web Trap Telenet SSH RSTP/MSTP: Yes Traffic priority (QoS): Yes VLAN, P-VLAN, QinQ, GVRP: VLAN GVRP IGMP query, snooping, GMRP: Yes IEEE 802.1AB LLDP network discovery: Yes IEEE 802.3ad LACP, static trunk: Yes Jumbo frame/MAC address: 9K Bytes Port mirroring: Yes DDM SFP: Yes IEEE 802.1x, IP/port security/SSL/HTTPS,SSH/Telnet: IEEE802.1XSSL/HTTPS SSH/Telenet TACACS+, Radius: Yes Industry protocol (ModBus/ TCP,EtherNet/IP): Modbus TCP/IPSNMP/RMON/Trap: Yes CLI/Web/Telnet: Yes DHCP (server, client, Opt 82, port based server): DHCP (server client)
Interface	Total ports number: 16 10/100/1000TX ports: 12 Fiber ports: 4 x 100/1000M SFP ports DI/DO (dry relay): 1 x DI/DO Console: RS 232 DC power input: 2 x DC48 (48-57V) PoE ports: 12 Power feeding mode: 12345678 PoE mode: IEEE 802.3af/at PoE scheduling: Yes System PoE budget: 360W PoE wiring: 123456789101112 PoE specification: IEEE 802.3af/at PoE technology: PoE Priority Control PoE Scheduling Total power budget: 360W
Approval/Compliance	RoHS: Yes
Environmental	Operating temperature: -40~75°C
Features	Switch type: L2 Managed Network redundancy: MSR RDH SuperChain RSTP MSTP LACP Broadcast storm protection: Yes Security: ACL L2/L3 DHCP Snooping Watchdog: Yes IP security/Port security/SSL/HTTPS/SSH/Telnet: IP security/SSL/HTTPS/SSH/Telenet
Mechanical	Housing/protection (IP): IP30 Dimension (HxWxD mm): 189 x 96 x 132 Mounting: DIN Rail
Management	Layer 2
Standards	EN 50121-4
Hãng	BEIJER ELECTRONICS

DATASHEETS

JetNet 5216GP-4F - Beijer Electronics.pdf

[ JetNet 5216GP-4F - Beijer Electronics.pdf , 0.18MB , Jul.10.2024 ]
