JetNet 5216G-4C4F

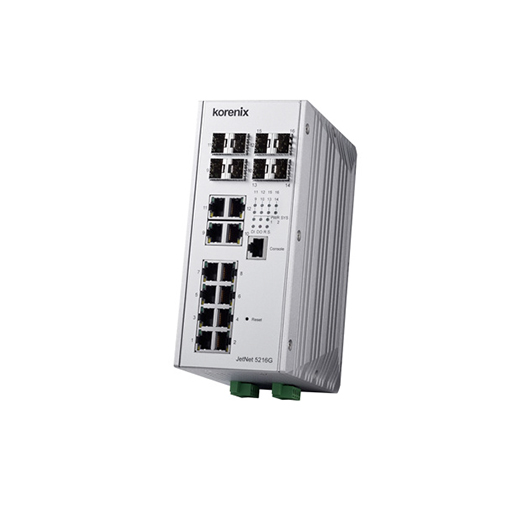

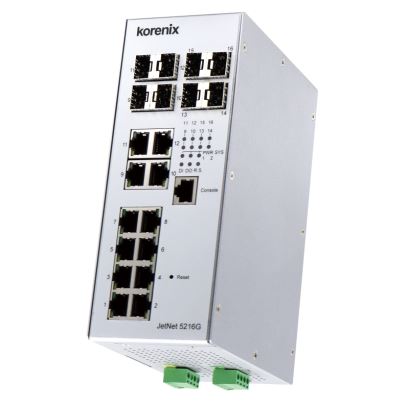

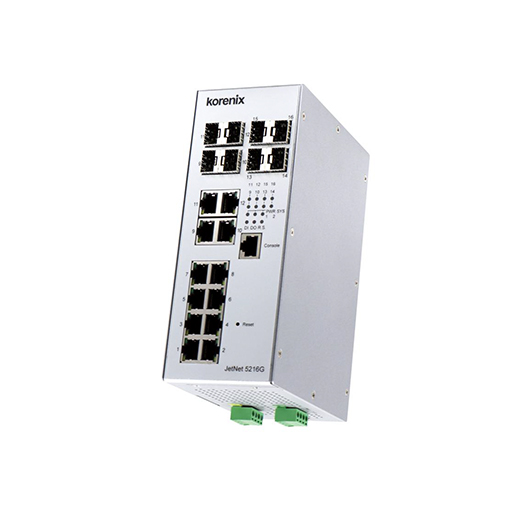

JetNet 5216G-4C4F Industrial Managed Switch

Tính năng chính

8 10/100/1000 Base TX ports + 4G RJ45/SFP Combo + 4 Gigabit SFP
Network Redundancy - MSR (Multiple Super Ring), RSTP, MSTP
Fully Device Management - SNMP v1/v2c/v3, RMON, Web UI, Telnet and Local Console
Friendly Device and Network Topology recovery utility - Korenix View
Layer 2 Network Performance - IEEE802.1Q VLAN, Private VLAN, Trunk, Packet Filtering, DHCP Server/Client, Traffic Prioritize, Rate Control
Advanced Security system by Port Security, Access IP list, SSH, TACACS+
Event Notification through SNMP trap and SysLog
IEEE 802.1AB LLDP software for auto-topology and group management
Cisco-Like CLI, Web, SNMP/RMON for network management
Multiple event relay output for enhanced device alarm control
Hi-Pot Isolation Protection for ports and power
Railway Track Side EN50121-4 Certification
-40~75°C Wide Operating Temperature

Giá sản phẩm: Liên hệ

JetNet 5216G series is designed for operating reliably under harsh environments, it supports one alarm relay to indicate fault conditions when any link or power failure happens, as a result, users can quickly handle the emergency and shorten the failover time. With IEC 61000-6-2/ 61000-6-4 Heavy Industrial EMC and Trackside certification design, including robust enclosure and -40~75°C wide operating temperature range, JetNet 5216G series ensures high performance under traffic control systems and other Network applications.

Technology	IEEE Standards IEEE 802.3 10 Base-T Ethernet IEEE 802.3u 100 Base-TX Fast Ethernet IEEE 802.3u 100 Base-FX Fast Ethernet Fiber IEEE 802.3ab 1000 Base-T IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow Control and Back-pressure IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1p Class of Service (CoS) IEEE 802.1Q VLAN and GVRP IEEE 802.1 QinQ IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1x Port Based Network Access Protocol IEEE 802.3af/at/bt Power over Ethernet
Interface	Enclosure Port: • Auto-sensing 10/100/1000 Mbps Ethernet port: – 12 x RJ-45 (JetNet5216G-4C4F) • 100Mbps / 1000Mbps Fiber port : – 8 x SFP (JetNet5216G-4C4F) Socket for SFP fiber transceiver with Hot-swappable and D.D.M. functions • RS-232 Console port : 1 x RJ-45 for system configuration • Digital Input / Relay Output port: 4-Pin removable terminal block connector • Power input port: 4-Pin removable terminal block connector Ethernet Cable 100 Base-TX: 2-pair UTP/STP Cat. 6 cable, EIA/TIA-568B 100-ohm (100m) 1000 Base-TX: 4-pair UTP/STP Cat. 6 cable, EIA/TIA-568B 100-ohm (100m) Digital Input: Digital Input (Hi): DC 11V~30V Digital Input (Low): DC 0V~10V Supports sink type signal input with photo-coupler isolation Relay Output: Dry Relay output: 1A / DC 24V Supports Multiple Events Binding trigger function. Diagnostic Indicators • RJ-45 port: Link /Activity (Green on, Green Blinking),1000Mbps (Yellow) • SFP port: Link/Activity (Green on, Green Blinking) • Power: System Power ready (Green on) • Sys: System Ready (Green on), System Updating (Green Blinking) • DO (Alarm): Alarm Relay Active (Red On) • R.S.: Green on (Ring normal)/Blinking (wrong ring port connective), Amber on (Ring abnormal) / Blinking (device’s ring port failed)
Performance	Switch Technology: Store and Forward Technology with Non-Blocking 16 Gbps Switch Fabric System Throughput: 29.7Mega packet per second CPU performance: MIPS-4KEc CPU running at 500 MHz System Memory: 32M Bytes SPI Flash, 256M Bytes DDR3 SDRAM Transfer packet size: 64 bytes to 9K bytes Jumbo Frame (include double Tag VLAN) MAC Address: 8K Packet Buffer: 4.1Mbit Forwarding performance: 14,880 pps for Ethernet and 148,800 pps for Fast Ethernet, 1488,100 pps for Gigabit Ethernet
Approval/Compliance	EMC: IEC/EN61000-6-2, IEC/EN61000-6-4 Heavy Industrial EMC EMI: FCC Class A, CE/ Class A EMS:IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8 Railway Application: EN50121-4 Shock Compliance with IEC 60068-2-27 Vibration Compliance with IEC 60068-2-6 Free Fall Compliance with IEC 60068-2-32 Warranty: 5 years
Environmental	Operating Temperature: -40 ~75oC Operating Humidity: 0% ~ 95%, non-condensing Storage Temperature: -40 ~ 85oC, 0% ~90% Humidity: Hi-Pot AC 1.5KV for Ethernet port and power
MTBF	MTBF: 1,252,145 hrs
Power Requirements	System power: 2x DC power input with polarity reverse protection Input Range: DC 10-60V (JetNet 5216G-4C4F) Power Consumption: 17.1W@48VDC
Network Redundancy	Ring Redundancy Multiple Super Ring Technology, Includes Rapid Super Ring, Rapid Dual Homing,SuperChain Rapid Dual Homing Multiple uplink paths to one or multiple upper Switch. SuperChain New ring technology with flexible and scalability, compatibility, and easy configurable. The ring includes 2 types of node Switch – Border Switch and Member Switch Rapid Spanning Tree IEEE 802.1D-2004 Rapid Spanning Tree Protocol. Compatible with Legacy Spanning Tree and IEEE 802.1w Multiple Spanning Tree IEEE 802.1s Multiple Spanning Tree, each MSTP instance can include one or more VLANs, and also supports multiple RSTP deployed in a VLAN or multiple VLANs
Mechanical	Installation: DIN-Rail mounting Case: Steel metal with Aluminum heat-dissipate panel housing Ingress Protection: IP30 Dimension (mm): 74 (W) x 132(D) x 189 (H) – w/o DIN Rail Clip Installation: DIN-rail mounting Weight: 1.0 Kg
