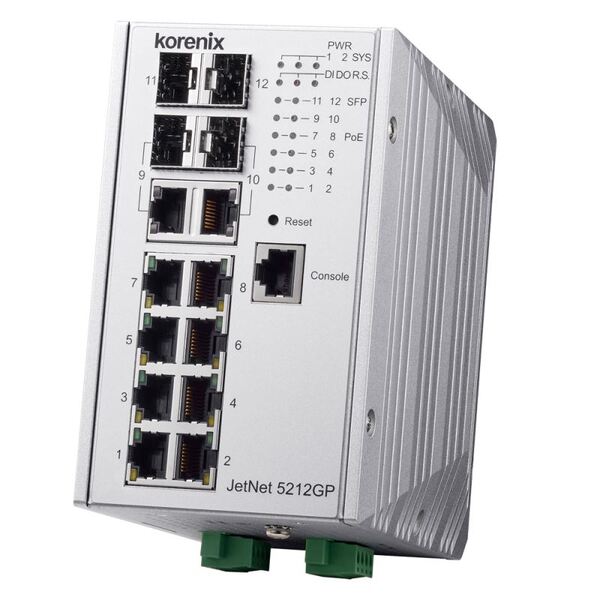

Managed PoE Switch JetNet 5212GP-2C2F

JetNet 5212GP-2C2F

Industrial 8G RJ45 + 2G Combo + 2G SFP Managed PoE Switch with 240W Power Budget -40~75°C

Tính năng chính

8 10/100/1000 Base TX ports + 2 Gigabit RJ-45/ SFP combo ports+ 2 Gigabit SFP ports
Compliance with IEEE 802.3af/at
Network Redundancy – MSR (Multiple Super Ring) RSTP MSTP. DH Chain
Layer 2 Network Performance – IEEE802.1Q VLAN Trunk Packet Filtering DHCP Server/Client Traffic Prioritize Rate Control
Fully Device Management – SNMP v1/v2c/v3 Web UI Telnet and Local Console
Railway Track Side EN50121-4 Certification

Giá sản phẩm: Liên hệ

JetNet 5212GP, the DIN-Rail type industrial Gigabit Managed PoE Switch is designed with eight 10/100/1000 TX ports, two Gigabit RJ-45/ SFP combo ports and two Gigabit SFP port. JetNet 5212GP is the first industrial ethernet switch compliance with IEEE 802.3 af/at/bt, each ethernet port can max supports 90 W for PD, and total budget up to 480 W ^*Note.
JetNet 5212GP is designed for operating reliably under harsh environments, it supports one alarm relay to indicate fault conditions when any link or power failure happens, as a result, users can quickly handle the emergency and shorten the failover time. With IEC 61000-6-2/61000-6-4 Heavy Industrial EMC and Trackside certification design, including robust enclosure and -40~75°C wide operating temperature range, JetNet 5212GP ensures high performance under traffic control systems and other Network applications.

Technology	SW/Protocol Management: SNMP V1/2c/3 CLI Web Trap Telenet SSH RSTP/MSTP: Yes Traffic priority (QoS): Yes VLAN, P-VLAN, QinQ, GVRP: VLAN GVRP IGMP query, snooping, GMRP: Yes IEEE 802.1AB LLDP network discovery: Yes IEEE 802.3ad LACP, static trunk: Yes Jumbo frame/MAC address: 9K Bytes Port mirroring: Yes DDM SFP: Yes IEEE 802.1x, IP/port security/SSL/HTTPS,SSH/Telnet: IEEE802.1XSSL/HTTPS SSH/Telenet TACACS+, Radius: Yes Industry protocol (ModBus/ TCP,EtherNet/IP): Modbus TCP/IPSNMP/RMON/Trap: Yes CLI/Web/Telnet: Yes DHCP (server, client, Opt 82, port based server): DHCP (server client) Event alarm: Power Port Link up/down Ring fail Auth Alarm (by web setting)
Interface	Total ports number: 12 10/100/1000TX ports: 8 100/1000M combo: 2 Fiber ports: 2 x 100/1000M SFP ports DI/DO (dry relay): 1 x DI/DO Console: RS 232 DC power input: 2 x DC48 (48-57V) PoE ports: 8 Power feeding mode: 1236 (A) PoE mode: IEEE 802.3af/at PoE scheduling: Yes System PoE budget: 240W PoE wiring: 1236 PoE specification: IEEE 802.3af/at PoE technology: PoE Priority Control PoE Scheduling Total power budget: 240W
Approval/Compliance	Regulatory/approval: CE/FCC/EN50121-4 Compliance standard: Heavy Industry EMC RoHS: Yes
Environmental	Operating temperature: -40~75°C
Features	Switch type: L2 Managed Network redundancy: MSR RDH SuperChain RSTP MSTP LACP Broadcast storm protection: Yes Security: ACL L2/L3 DHCP Snooping Watchdog: Yes IP security/Port security/SSL/HTTPS/SSH/Telnet: IP security/SSL/HTTPS/SSH/Telenet
Mechanical	Housing/protection (IP): IP30 Dimension (HxWxD mm): 135 x 96 x 132 Mounting: DIN Rail
Management	Layer 2
Mounting	DIN-rail
Standards	EN 50121-4
Hãng	BEIJER ELECTRONICS

DATASHEETS

JetNet 5212GP-2C2F - Beijer Electronics.pdf

[ JetNet 5212GP-2C2F - Beijer Electronics.pdf , 0.19MB , Jul.11.2024 ]
