Máy tính CompactPCI EKF SRS-8432-SERIAL

SRS-8432-SERIAL

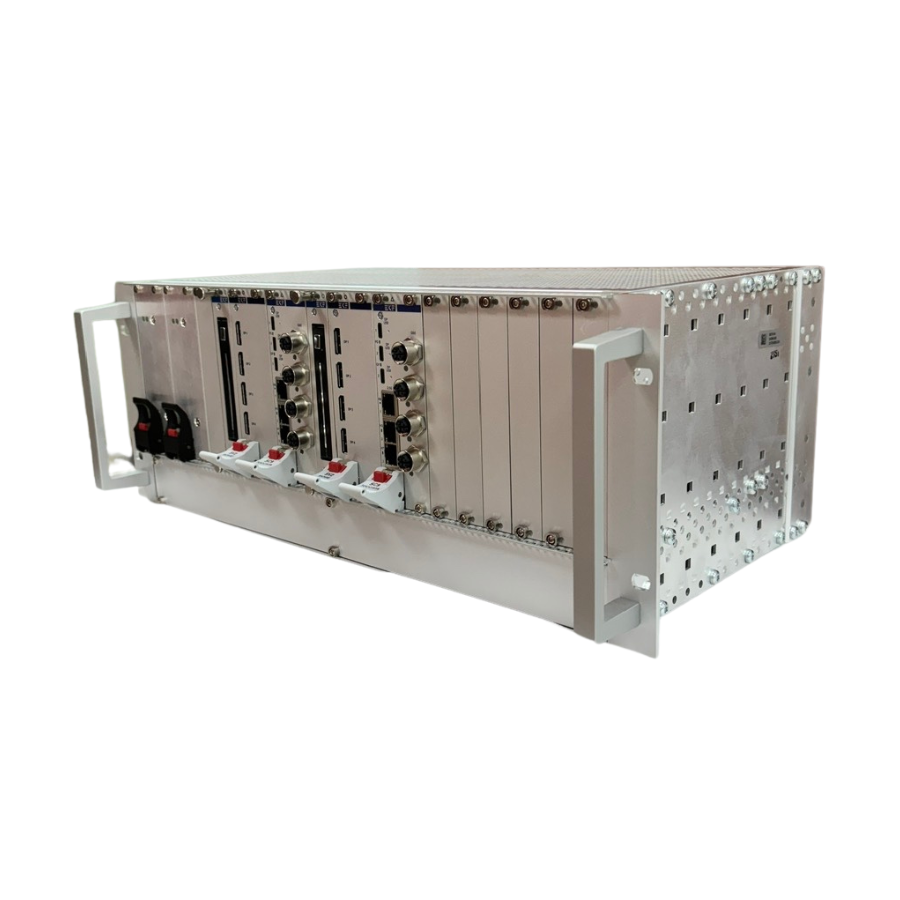

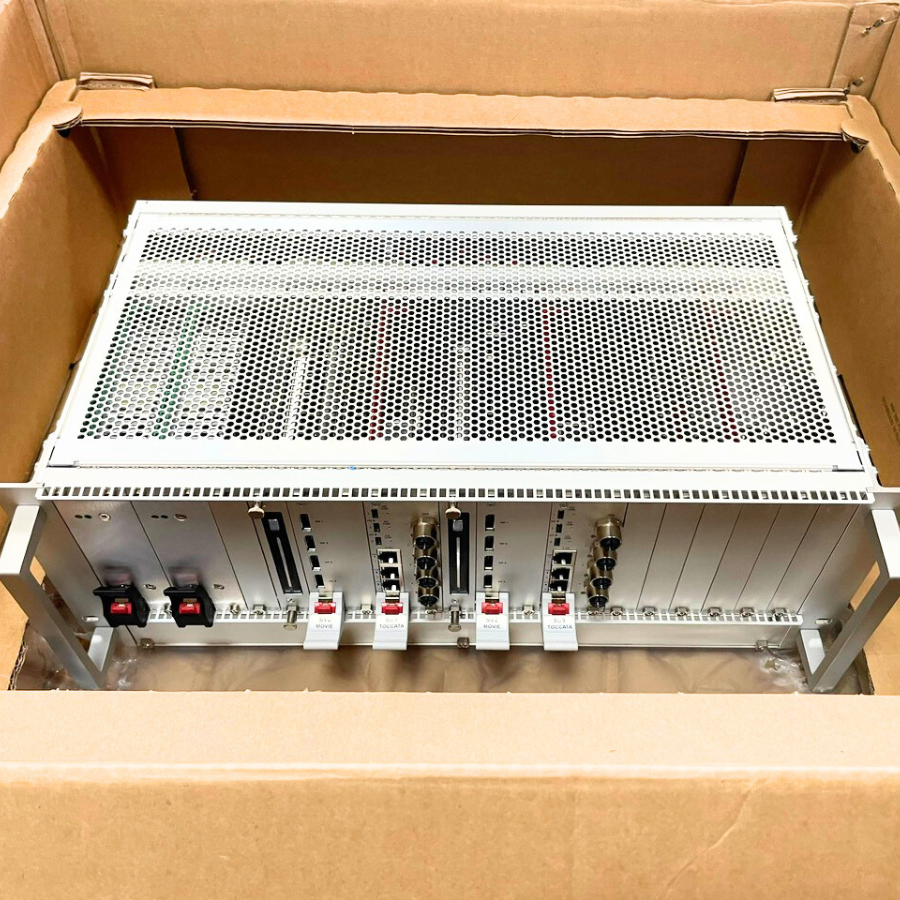

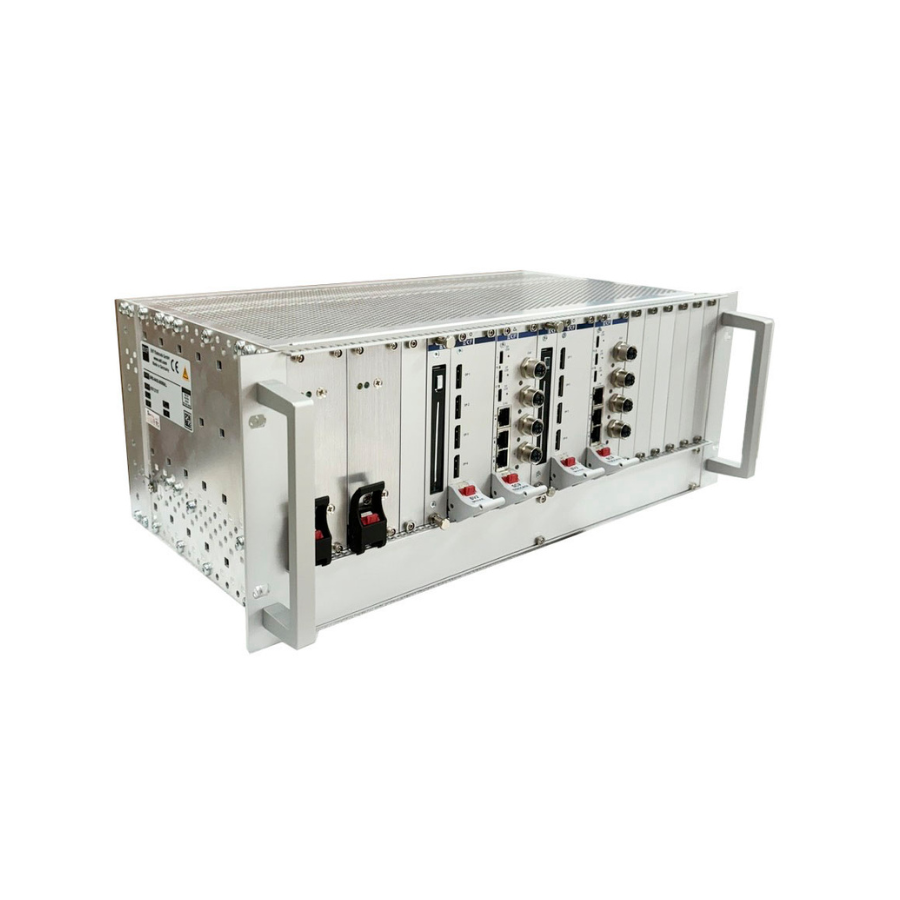

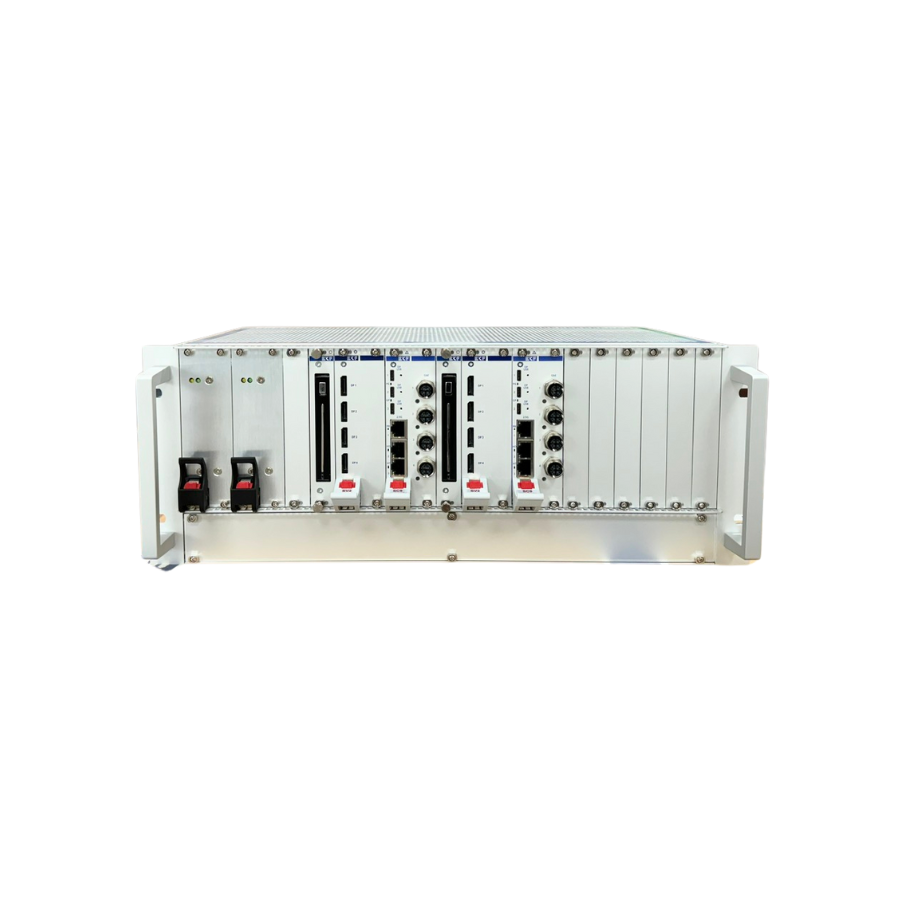

CompactPCI® Serial System Racks for Industrial Applications (AC Power Supply)

Tính năng chính

19“ subrack system, 4U, 84HP, 235mm depth
19“support brackets tox-cold welded with side panel, double screw fixing for horizontal rails (according to EN50155 incl. shock and vibration)
Board size 100x160mm, 3U front panel
Air flow from bottom to top
3x Axial fan 119x25mm, 12V DC, fans not extractable
2x Power bus CPCI-Serial 1 Slot
Redundant power supply operation
3x Backplane CPCI-Serial /PICMG CPCI-S.0: 4 Slots; Full Mesh; System slot right; Without Rear I/O
Main filters: Top and bottom cover perforated
Rear hood
Shielded version

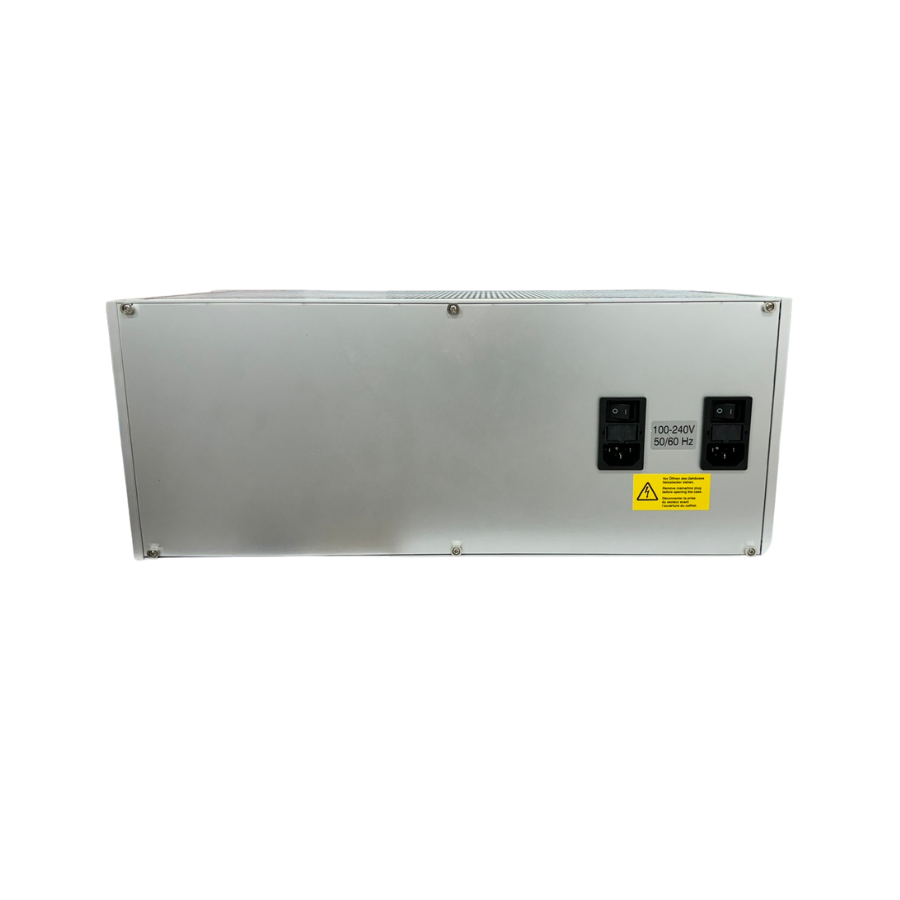

AC input, accessible from the rear
AC-wiring
Top and bottom cover perforated
Shielded version
Including 2x 500W Power supply
Input Range 90 – 264VAC Environmental
OutputSpec- 12@42A, 5V Standby @ 2.5A

Giá sản phẩm: Liên hệ

The SRS-8432-SERIAL racks are equipped with a 12-slot CompactPCI® Serial backplane, and a removable 500W power supply for either AC or DC power input. Three 120mm fans mounted below the card slots care for optimum cooling. All components were chosen for high reliability, as required e.g. for industrial usage. The CompactPCI® Serial system slot is right aligned, with an additional guide rail for an optional mezzanine side card on top of the CPU board. The free space behind the 48HP blind plate can be used by the customer for own installations.

Processor

Intel® 11th Generation Mobile XEON® W or Core™ processor

Up to 8 cores, 24MB cache, 32EU, Intel® vPro™ eligible

Memory

DDR4 3200 ECC RAM

Integrated memory controller up to 64GB DDR4 3200 with hardware ECC * < DDR4 +ECC soldered memory up to 32GB (ultra rugged basic memory) < DDR4 +ECC SO-DIMM memory module socket up to 32GB (memory expansion option) < Total memory encryption * ECC with XEON® processor SKUs (industrial use)

Environment

Suitable e.g. for industrial, transportation & instrumentation applications
Designed & manufactured in Germany
ISO 9001 certified quality management
Long-term availability
Rugged solution
Coating, sealing, underfilling on request
Lifetime application support
RoHS compliant
Operating temperature 0°C to +70°C
Operating temperature -40°C to +85°C (industrial temperature range) on request
Storage temperature -40°C to +85°C, max. gradient 5°C/min
Humidity 5% ... 95% RH non-condensing
Altitude -300m ... +3000m
Shock 15g 0.33ms, 6g 6ms
Vibration 1g 5-2000Hz
MTBF 20.2 years (MIL-HDBK-217F, SN29500 @+40°C)
EC Regulatory EN55035, EN55032, EN62368-1 (CE)
